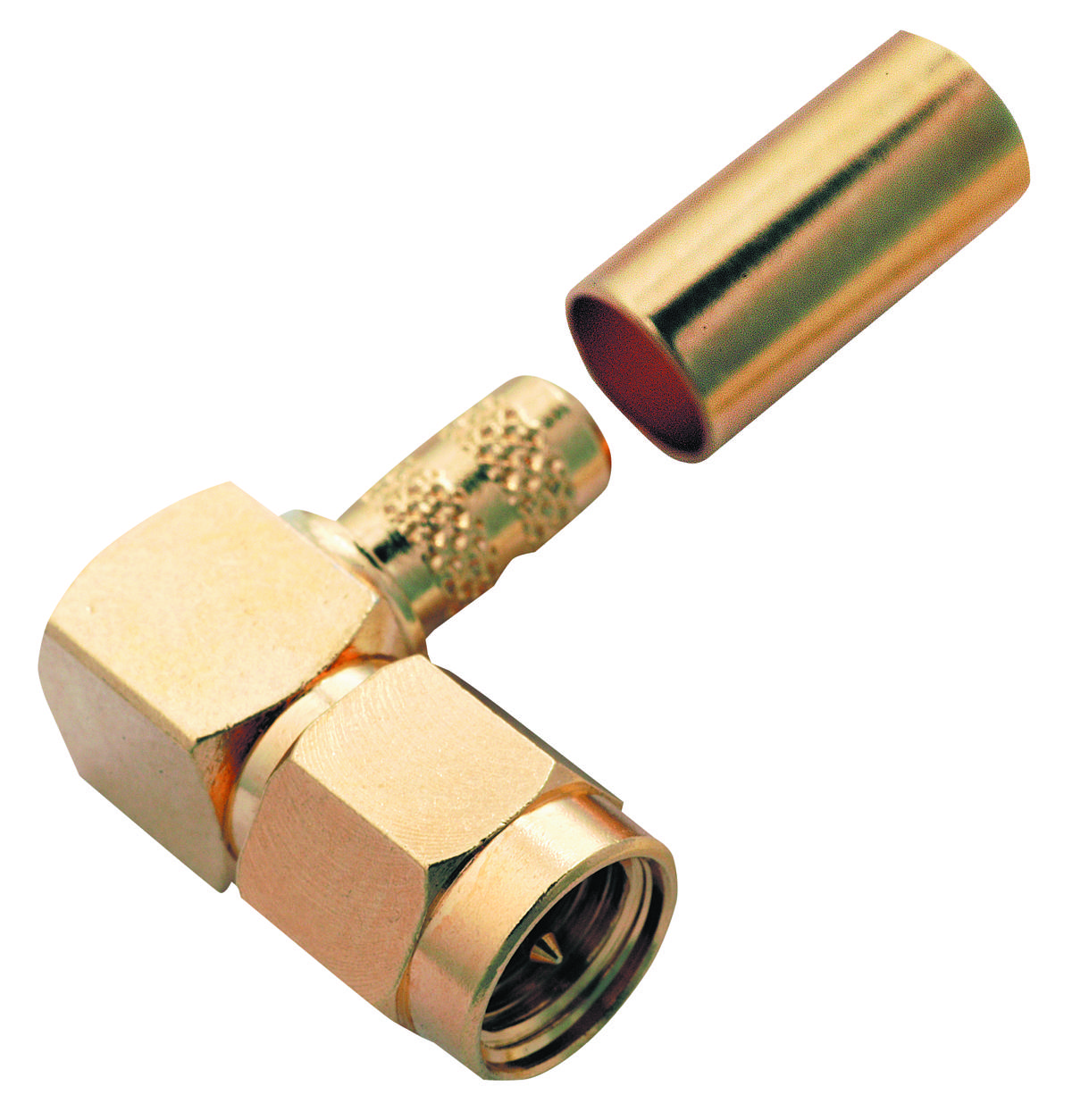

AMPHENOL RF 132239 SMA coaxial connector
The Connex SMA coaxial connectors are semi-precision, high-frequency connectors designed for reliable broadband performance from DC to 18GHz. They feature low VSWR, high mechanical strength, and withstand voltages up to 500V peak for common cable types like RG-58 and RG-174. Constructed with materials such as non-magnetic stainless steel, beryllium copper, and PTFE insulators, these connectors are suitable for high-frequency applications requiring durability and low reflection. They meet military standards MIL-C-39012 and MIL-C-83517, ensuring quality and compatibility in demanding environments.
AMPHENOL RF 132239 SMA coaxial connector Specifications:
- Impedance: 50 ohm
- Frequency range: 0-18 GHz semi-rigid cable, 0-12.4 GHz flexible cable
- Voltage rating: RG-58, 141, 142, 223: 500V peak; RG-174, 188, 316: 375V peak
- Dielectric withstanding voltage: 1000V RMS for .141" & RG-58; 750V RMS for .085" & RG-316
- Contact resistance: Center and body 2.0 milliohms; Braid to body 0.5 milliohms
- Insulation resistance: 5000 Megohms
- RF leakage: -90 dB min at 2-3 GHz
- Insertion loss: Max 0.06 dB at 6.0 GHz
- Materials: Stainless steel, beryllium copper, PTFE insulators, nickel or gold plating
- Dimensions: Refer to interface dimensions for plug and jack, various models with flange types
- Standards: MIL-C-39012, MIL-C-83517
- Temperature rating: Not specified explicitly but designed for high-frequency industrial and military use
Buy the Buy Connex SMA Coaxial Connector Part Number 132239 Online
Order Connex SMA coaxial connectors online today for reliable broadband performance from DC to 18GHz. These high-quality, military-standard connectors feature low VSWR, robust construction, and are ideal for demanding RF applications requiring durability, stability, and high-frequency performance. Perfect for industrial, aerospace, and communications systems, they ensure low signal reflection and long-lasting durability. Secure your SMA connectors now to meet your project specifications with easy online purchasing, fast delivery, and trusted quality from Connex.
Get Connex SMA coaxial connector number 132239 today—designed for high-frequency, broadband applications with superior durability and low reflection.
