AMPHENOL RF 172102 N Type Connector
The 172102 is a N-type straight crimp connector featuring gold-plated brass contacts, a white bronze brass body, and a PTFE insulator. Designed for durability and weather resistance, this RF connector performs reliably up to 11 GHz. It incorporates a threaded coupling mechanism, ensuring secure and precise connections, and is fully compatible with N-type connectors built to MIL-C-39012 specifications. Ideal for applications requiring excellent RF and mechanical performance, it is suitable for use with various coaxial cables including RG-213, RG-214, RG-225, RG-302, RG-393, RG-8, RG-87, RG-8A, RG-9, RG-9A, and RG-9B. Features include a standard polarity, thread direction, a peak voltage rating of 1500V, minimum insulation resistance of 5000 MΩ, and durability for at least 5000 mating cycles. Suitable for RF communications, networking, sensing, instrumentation, and wireless applications.
AMPHENOL RF 172102 N Type Connector Specifications:
- Impedance: 50 ohm nominal
- Frequency: 0-11 GHz
- Voltage Rating: 1500 Volts peak
- Dielectric Withstanding Voltage: 2500 Volts rms
- Contact Resistance: Center contact 1.0 milliohm, Outer contact 0.2 milliohm
- Insulation Resistance: 5000 megohms (min)
- Material: Brass with gold plating for contacts, white bronze plating for body
- Insulator: PTFE
- Thread Type: 5/8-24UNEF-28
- Peak Voltage: 1500V
- Durability: Minimum 5000 mating cycles
- Application: RF communication, networking, instrumentation
- Operating Frequency: Up to 11 GHz

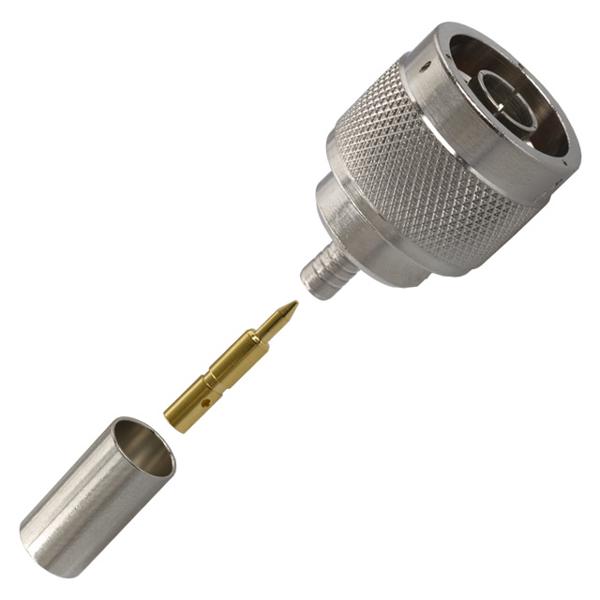

Buy the Buy Connex N Type Connectors Part Number 172102 Online
Order the Connex N Type Connector Part Number 172102 online for reliable RF performance up to 11 GHz. Featuring gold-plated brass contacts, a durable PTFE insulator, and a threaded coupling, this connector provides a secure, weather-resistant connection ideal for RF, networking, and instrumentation applications. Its robust construction ensures at least 5000 mating cycles, with a maximum voltage of 1500V and minimal contact resistance. Suitable for various coaxial cables including RG-213, RG-214, RG-225, guaranteeing high-quality signal transmission in wireless, sensing, and communication systems. Purchase now for dependable, long-lasting RF connections.
Get Connex 172102 today—built for precision and long-lasting durability, ensuring secure RF connections up to 11 GHz with excellent mechanical performance.
Frequently Asked Questions
Where can I buy AMPHENOL RF 172102?
You can click on the BUY or RFQ button to purchase 172102 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 172102?
You can download the 172102 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 172102?
AMPHENOL RF
