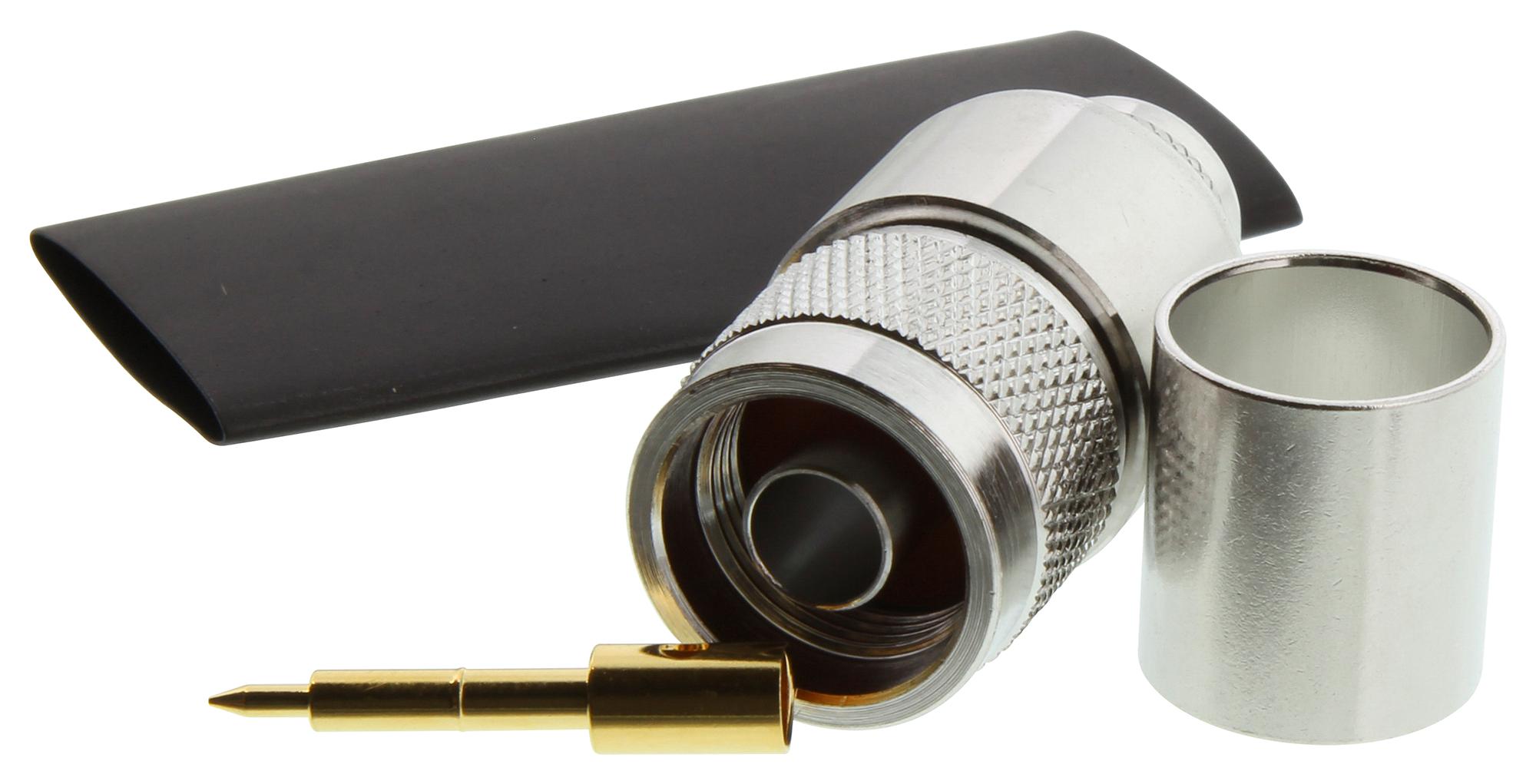

AMPHENOL RF 172206 N Coaxial Connector
The product is a versatile coaxial connector designed for high-frequency applications up to 11 GHz, featuring solid nickel plating to reduce intermodulation problems. It offers a 50 ohm impedance, with silver or Nexcote plating options for improved RF performance and minimal signal distortion. Made from brass with gold or silver contacts, and Teflon insulators for durability, it supports voltages up to 1500V peak, dielectric withstand voltage of 2500V rms, and has low contact resistance for reliable connections. Suitable for RF systems requiring mechanical robustness and excellent electrical performance.
AMPHENOL RF 172206 N Coaxial Connector Specifications:
- Impedance: 50 ohm nominal
- Frequency Range: 0-11 GHz
- Voltage Rating: 1500 Volts peak
- Dielectric Withstanding Voltage: 2500 Volts rms
- VSWR: 1.3 max. at 0-11 GHz
- Contact Resistance: Center contact 1.0 milliohm, Outer contact 0.2 milliohm
- Insulation Resistance: Minimum 5000 megohms
- Material: Brass with nickel plating, optional silver plating
- Contacts: Gold or Silver plated brass
- Insulators: Teflon
- Platings: Silver, Nexcote (white bronze)
- Mechanical: Screw coupling design, compatible with MIL-C-39012 standard
- Dimensions: Details vary by model, generally suitable for high-frequency RF systems
Buy the Connex Series N Coaxial Connector: 50 Ohm RF Connector Model 172206
Purchase the Connex Series N Coaxial Connector model 172206 online today for high-frequency RF applications up to 11 GHz. Crafted with durable nickel plating to minimize intermodulation issues, it features a robust brass body with high-quality gold or silver contacts and Teflon insulators for longevity. Supporting voltage up to 1500V peak and dielectric withstand voltage of 2500V rms, this connector provides low contact resistance and excellent impedance stability. Ideal for critical RF systems demanding consistent high performance and mechanical reliability in a compact form factor.
Order your Connex Series N Coaxial Connector 172206 today and ensure your RF systems have the high-performance, reliable connection they need.
Frequently Asked Questions
Where can I buy AMPHENOL RF 172206?
You can click on the BUY or RFQ button to purchase 172206 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 172206?
You can download the 172206 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 172206?
AMPHENOL RF
