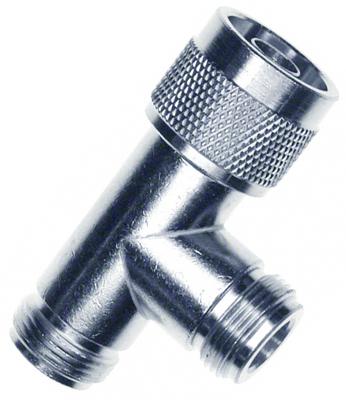

AMPHENOL RF 172233 RF Coaxial Tee Adapter
The 172233 is a RF/coaxial Tee Adapter featuring an N-type plug on one end and two N-type jack connections. It has a white bronze-plated brass body, with gold-plated phosphor bronze contacts and a PTFE insulator. The adapter supports an impedance of 50 ohms and operates within a temperature range of -65°C to 165°C. It is suitable for RF communications, and networking applications.
AMPHENOL RF 172233 RF Coaxial Tee Adapter Specifications:
- Impedance: 50 ohm nominal
- Frequency: 0-11 GHz
- Voltage Rating: 1500 Volts peak
- Dielectric Withstanding Voltage: 2500 Volts rms
- Contact Resistance: Center contact 1.0 milliohm, Outer contact 0.2 milliohm
- Insulation Resistance: 5000 megohms (min)
- Material: Brass body with nickel plating, gold-plated contacts, PTFE insulator
- Operating Temperature Range: -65°C to +165°C
- Connector Type: N-type male plug and two N-type female jacks
- Application: RF communications, networking
Buy the Connex 172233 – Reliable RF Coaxial Tee Adapter for Industrial Applications
Order the Connex RF coaxial Tee Adapter 172233 online for high-quality RF connections. Suitable for networking and communication systems, it features a durable brass body with nickel plating, gold-plated contacts, and a PTFE insulator. Operating within -65°C to 165°C, it offers reliable performance up to 11 GHz. With a 50 ohm impedance, it ensures minimal signal loss and excellent RF performance. Perfect for industrial applications requiring stable, high-frequency connections—order now for fast delivery and quality assurance.
Get Connex 172233 today—built for precision and long-lasting durability in RF and networking systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF 172233?
You can click on the BUY or RFQ button to purchase 172233 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 172233?
You can download the 172233 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 172233?
AMPHENOL RF
