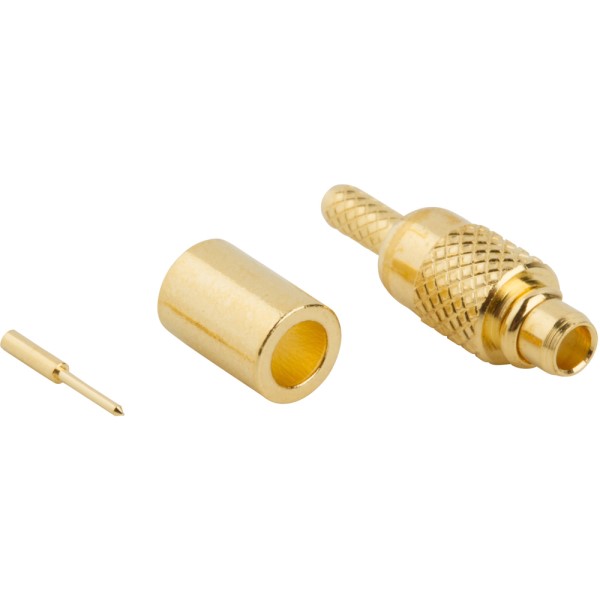

AMPHENOL RF 262100 Crimp Plug Connector
The Amphenol RF 262100 is a high-quality crimp plug connector specifically engineered for RG-178B/U coaxial cable. Constructed with a copper ferrule, gold plating, and a beryllium copper spring ring, this connector provides excellent electrical performance and durability. Its design ensures a secure and reliable connection, making it suitable for a wide range of RF applications including telecommunications, instrumentation, and broadcast equipment. The connector's robust construction and gold-plated contacts contribute to minimal signal loss and corrosion resistance, ensuring long-term performance and reliability. It is designed for use in various applications requiring a compact and high-performance RF connector.
AMPHENOL RF 262100 Crimp Plug Connector Specifications:
- Material and Finishes: FERRULE - COPPER, GOLD PLATING; SPRING RING - BERYLLIUM COPPER, GOLD PLATING; BODY INSULATOR -- BRASS, PTFE, NATURAL GOLD PLATING
- Impedance: 50 Ohm, Nominal
- Frequency Range: 0-6 GHz
- Durability: 500 Cycles Min.
- Temperature Range: -55°C to +155°C
- Crimp Size: .128"
- Cable Entry Dimensions: D0.8
- Contact Pin to Solder: 0.00
- D1: 0.39
- D2: 2.4
- D3: 3.8
- Dimensions: 12.5 x 6.07 x .217
- Tolerance: 0.05mm +0. Imm +0. 2mm + 0.3mm +1°
Buy the 262100 AMPHENOL RF Crimp Plug Connector | myMectronic
Purchase the Amphenol RF 262100 Crimp Plug Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 262100?
You can click on the BUY or RFQ button to purchase 262100 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 262100?
You can download the 262100 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 262100?
AMPHENOL RF
