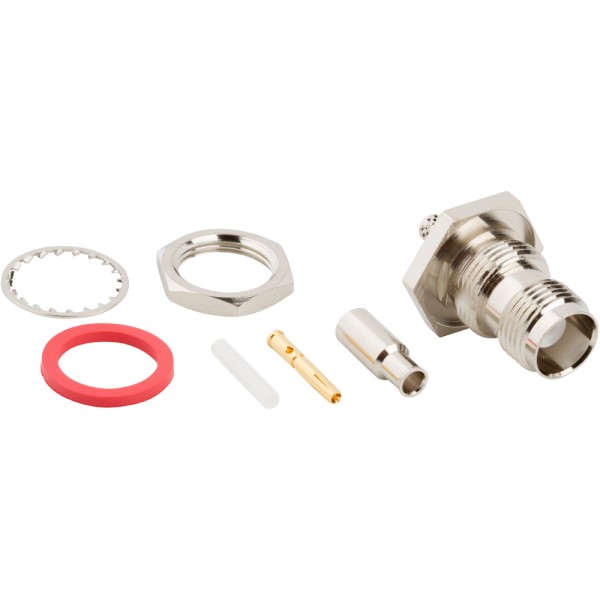

AMPHENOL RF 312318RFX TNC Connector
Amphenol's TNC connectors, like the 31-2318-RFX, are miniature, threaded weatherproof units developed in the late 1950s. Featuring a constant 50 Ω impedance and operating from DC to 11 GHz, they are ideal for commercial applications such as antennas, base stations, cable assemblies, and WLAN networks. The threaded coupling interface ensures stability in vibration-intensive environments, and reverse polarity options prevent mismating. These connectors offer a cost-effective solution for a wide range of RF applications.
AMPHENOL RF 312318RFX TNC Connector Specifications:
- Electrical Impedance: 50 Ω nominal
- Frequency Range: DC - 11 GHz
- VSWR: 1.3 max. @ DC - 11 GHz (straight) / 1.35 max. @ DC - 11 GHz (right-angle)
- RF Leakage: 60 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: Center: ≤ 1.5 mΩ / Outer: ≤ 0.2 mΩ / Braid to Body: ≤ 0.1 mΩ
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: Maximum 0.18 dB @ 9 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 7/16 threaded coupling (MIL-STD-348)
- Coupling Torque: 4.1 / 6.1 in-lbs (46 / 69 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min
- Braid/Jacket Cable Affixment: Hex crimp or screw-threaded clamps
- Durability (Matings): 500 cycles minimum
- Temperature Range: -65°C to +165°C
- Material: Male Contact: Brass, gold plated / Female Contact: Beryllium copper or phosphor bronze, silver or gold plated / Other Metal Parts: Brass, nickel plated
