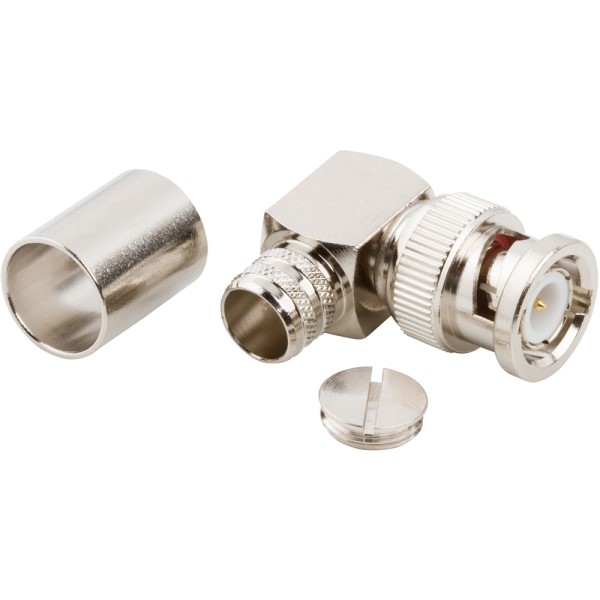

AMPHENOL RF 316004RFX BNC RF Connector
Amphenol's 31-6004-RFX BNC connector is a miniature, lightweight RF connector developed in the late 1940s. It utilizes a bayonet coupling mechanism for quick and reliable connections, making it ideal for cable termination in various applications, including medical equipment, test instrumentation, antennas, and base stations. Available in both 50Ω and 75Ω impedance designs, these connectors offer versatility for matching system requirements and are recognized under Underwriter’s Laboratories’ Component program for safety.
AMPHENOL RF 316004RFX BNC RF Connector Specifications:
- Impedance: 50 Ω nominal
- Frequency Range: DC - 4 GHz (usable to 11 GHz)
- VSWR: 1.3 max. @ DC - 4 GHz (straight)
- RF Leakage: 55 dB minimum @ 3 GHz
- Voltage Rating: ≥ 500 V peak (depending on cable)
- Contact Resistance: {'Center Contact': '≤ 1.5 mΩ', 'Outer Contact': '≤ 0.2 mΩ', 'Braid to Body': '≤ 0.1 mΩ'}
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum 0.2 dB max. @ 3 GHz
- Dielectric Withstanding Voltage: 1,500 Vrms (at sea level)
- Mating: 2-stud bayonet lock coupling (MIL-STD-348)
- Coupling Torque: 0.6 / 2.5 in-lbs (7 / 28 N-cm)
- Coupling Nut Retention Force: 101 lbs (450N) min.
- Center Contact Retention Force: ≥ 6.1 lbs (27N)
- Temperature Range: -65°C to +165°C
- Material (Body & Outer Contacts): Brass, nickel plated
- Material (Male Contact): Brass, gold plated
- Material (Female Contact): Beryllium copper or phosphor bronze, gold or silver plated
