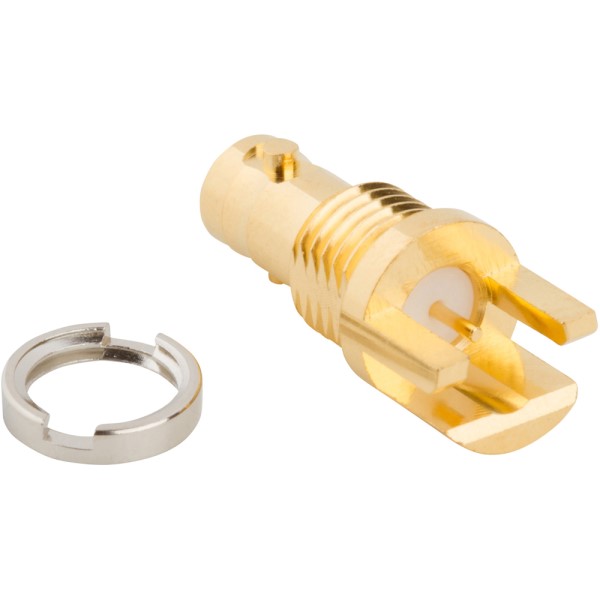

AMPHENOL RF 341018 BNC Jack Connector
The AMPHENOL RF 34-1018 is a BNC (Bayonet Neill-Concelman) jack connector, a common type used for connecting coaxial cables. This connector is designed for reliable RF signal transmission in various applications, including test and measurement equipment, broadcast systems, and telecommunications infrastructure. The connector's brass body with gold plating ensures excellent conductivity and corrosion resistance, while its robust construction provides mechanical durability. It is designed for edge mounting and requires a spanner wrench for secure connection to a panel. The 34-1018 is suitable for applications requiring high-frequency signal integrity and reliable performance.
AMPHENOL RF 341018 BNC Jack Connector Specifications:
- Materials and Finishes: Body - Brass, Gold Plating; Contact Insulator - BeCu, PTFE Gold Plating
- Impedance: 75 Ohms
- Frequency Range: DC to 43 GHz
- Dielectric Withstanding Voltage: 1000 VRMS
- Insulation Resistance: 10,000 Megohms
- Durability: 500 Cycles Min
- Thermal Shock: Per MIL-STD-202 Method 10
- Vibration: Per MIL-STD-202 Method 204 Test Condition B
- Shock: Per MIL-STD-202 Method 213 Test Condition B
- Corrosion: Per MIL-STD-202 Method 101
- Quantity: Single Pack
- Marking: Bag to be marked 'AMPHENOL RF, 34-1018 AND DATE CODE'
- Recommended PCB Dimensions: 11.25 x 2.16 +0.20
- Panel Thickness: Up to 2.20 Max
- Threads: 1/4-36 UNEF-2A
- Recommended Mounting Hole: See Drawing
Buy the 34-1018 AMPHENOL RF BNC Jack Connector | myMectronic
Purchase the AMPHENOL RF 34-1018 BNC Jack Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 341018?
You can click on the BUY or RFQ button to purchase 341018 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 341018?
You can download the 341018 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 341018?
AMPHENOL RF
