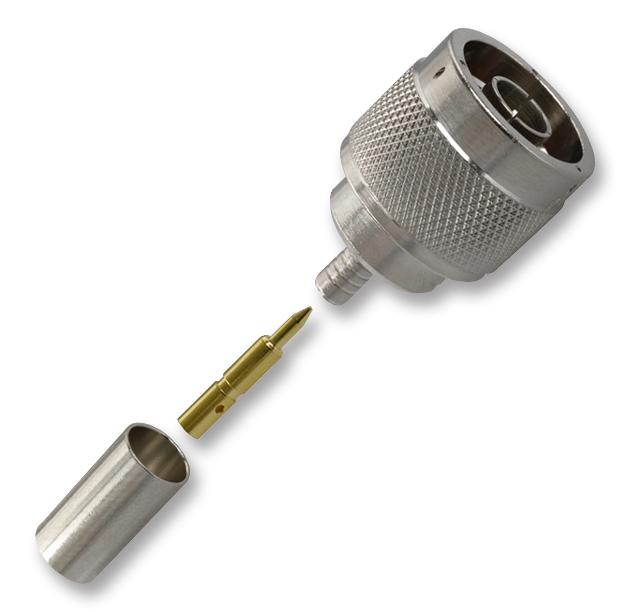

AMPHENOL RF 823401052 N Plug Connector
The Amphenol RF 82-340-1052 N-type plug connector is a robust and reliable solution for connecting coaxial cables in a variety of applications. Constructed with brass and nickel plating for the body and outer contact, and silver plating for the center contact, this connector ensures excellent signal transmission and corrosion resistance. It is designed for use with a range of coaxial cables and is suitable for applications in telecommunications, broadcast, and military systems. The connector's durable construction and secure connection make it ideal for demanding environments.
AMPHENOL RF 823401052 N Plug Connector Specifications:
- Impedance: 50 Ohm
- Durability: 500 cycles min
- Temperature Range: -65°C to +165°C
- Material Body Outer Contact: Brass, Nickel Plating
- Material Contact: Brass, Silver Plating
- Material Insulator: PTFE
- Material Ferrule: Copper, Nickel Plating
- Material Retaining Ring: Phosphor Bronze
- Material Gasket: Silicone Rubber Center
- Cable Stripping Dimensions: See datasheet
- Marking: Amphenol RF, 82-340-1052, and date code
- Interface Standard: MIL STD-348
- Series: Type N Plug
- Contact Ferrule: 0.738 REF
- Contact: 0.600 REF
- Cable Entry Dimensions: 0.112, 0.120, 0.418, 0.299, 0.880, 0.827 REF
