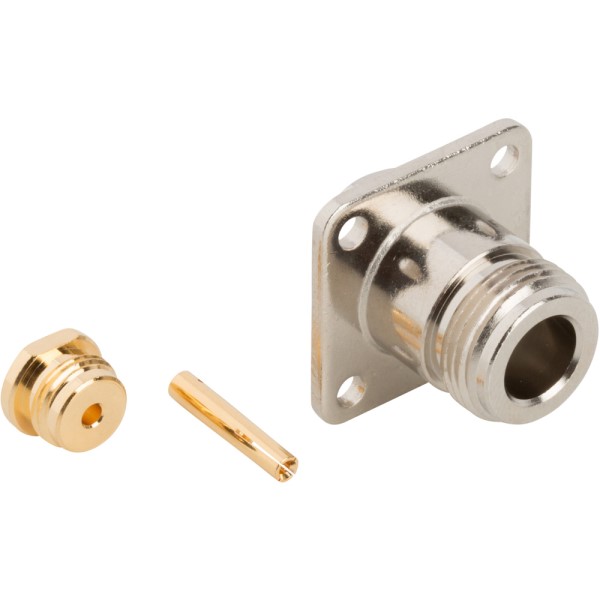

AMPHENOL RF 826098RFX Type N Connector
The Amphenol RF 82-6098-RFX Type N connector is a robust and versatile solution for RF applications. Developed in the 1940s, it provides reliable performance for medium to miniature coaxial cables like RG-8, RG-225, RG-58, and RG-141. Available in standard and helical corrugated versions, this connector is ideal for applications requiring durability and consistent performance, such as antennas, base stations, broadcast systems, and cable assemblies. It comes in various styles including plugs, jacks, and receptacles, catering to a wide range of customer needs.
AMPHENOL RF 826098RFX Type N Connector Specifications:
- Impedance: 50 ohms
- Mating: 5/8-24 threaded
- Temperature range: TFE -65°C to + 165°C
- Frequency range: 0-11 GHz
- Voltage rating: 1,500 volts peak
- Cable affixment: Crimp or solder
- Dielectric: 2,500 volts rms
- VSWR: 1.3 max. 0-11 GHz
- Contact resistance: {'center contact': '1.0 milliohm', 'outer contact': '0.2 milliohm'}
- RF leakage: -90 dB minimum at 3 GHz
- Insertion loss: .15 dB maximum at 10 GHz
- Insulation resistance: 5000 megohms minimum
- Insulators: TFE, copolymer of styrene or glass-TFE
- Weatherproof: Silicone rubber or synthetic rubber gaskets
- Material: {'Contacts': 'Male: brass; Female: phosphor bronze or beryllium copper', 'Other metal parts': 'Brass: silver or gold plated'}
Buy the 82-6098-RFX AMPHENOL RF Type N Connector | myMectronic
Securely purchase the Amphenol RF 82-6098-RFX Type N connector online for your RF applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 826098RFX?
You can click on the BUY or RFQ button to purchase 826098RFX from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 826098RFX?
You can download the 826098RFX datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 826098RFX?
AMPHENOL RF
