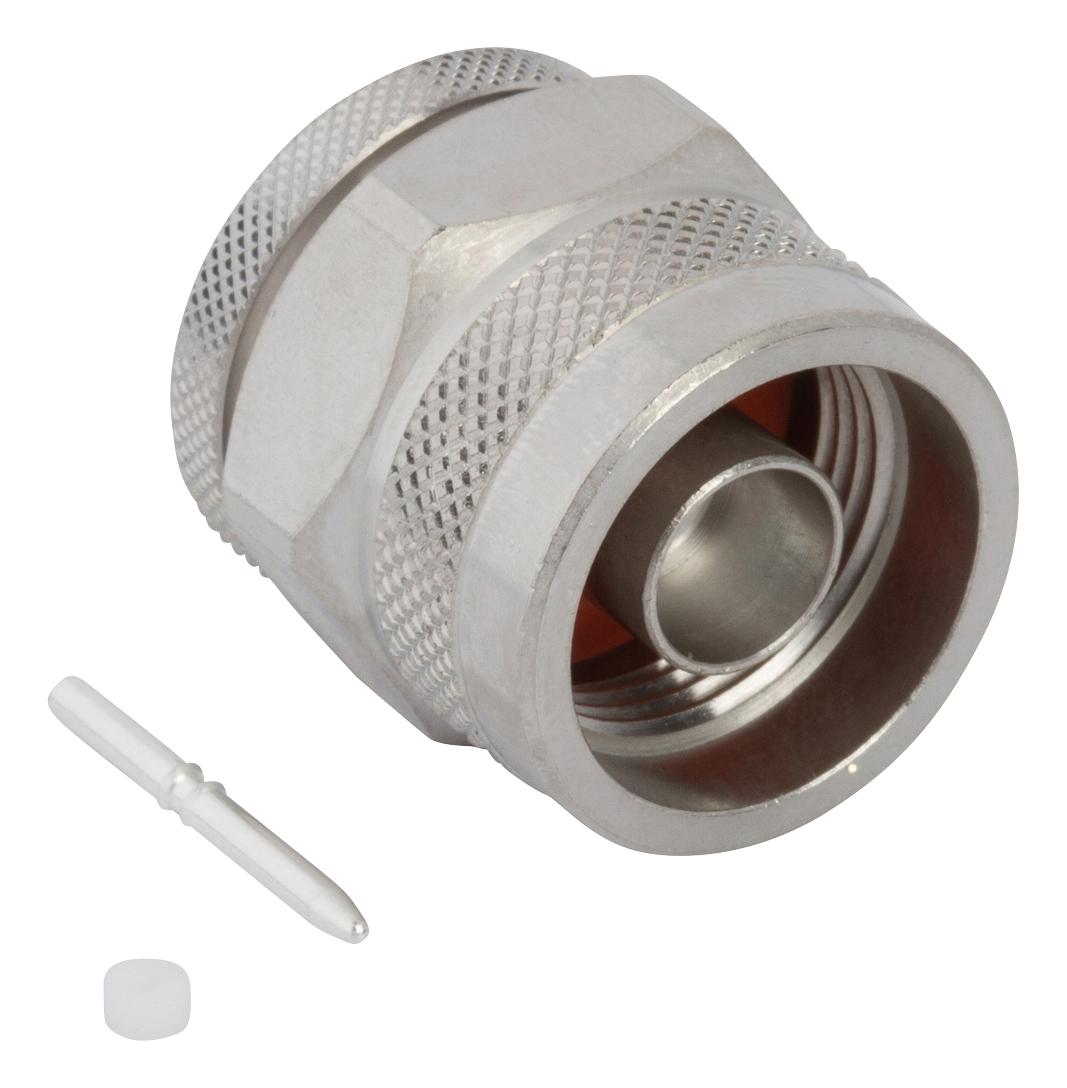

AMPHENOL RF 826673 High-Frequency RF Connector
This component is used in 5G wireless applications, providing essential functionality for high-speed wireless communication systems. It features a durable brass body with white bronze plating, ensuring longevity and corrosion resistance. The assembly includes a PTFE insulator, silicone rubber gasket, and stainless steel outer conductor, designed for impedance matching up to 18 GHz. Suitable for high-frequency RF applications, it withstands temperatures from -65°C to 165°C and has a VSWR max of 1.20 after 6 GHz. With robust mechanical and electrical specifications, this connector ensures reliable performance in demanding environments.
AMPHENOL RF 826673 High-Frequency RF Connector Specifications:
- Material: Brass body with white bronze plating
- Insulator: PTFE, natural
- Outer Conductor: SS
- Gasket: Silicone Rubber, Red
- Retaining Ring: SUS 304, natural
- Coupling Nut: Brass, white bronze plating
- Impedance: 50 Ω
- Frequency Range: DC to 18 GHz
- VSWR: 1.10 MAX. DC - 6 GHz, 1.20 MAX. 6 - 18 GHz
- Dielectric Withstanding Voltage: 1000 VRMS MIN.
- Durability: 500 cycles MIN.
- Temperature Range: -65°C to 165°C
- Connector Type: Type N Plug
- Assembly Instructions: Soldering recommended for cable connection, use flux, ensure flush components
- Packaging: Single pack marked with Amphenol RF, part number, date code
Buy the Buy Amphenol RF Component Part Number 82-6673 Online
Secure your high-performance RF connections by purchasing the Amphenol RF Series82-6673 online. Designed for 5G wireless applications, this durable connector features a brass body with white bronze plating, PTFE insulator, stainless steel outer conductor, and a silicone gasket for optimal sealing. It withstands temperatures from -65°C to 165°C and operates up to 18 GHz with excellent impedance matching and low VSWR. Easy to assemble, it ensures reliable performance in demanding high-frequency environments—order today to enhance your wireless communication systems efficiently.
Order your Amphenol RF Series82-6673 high-frequency connector today and ensure reliable high-speed wireless communication in your 5G systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF 826673?
You can click on the BUY or RFQ button to purchase 826673 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 826673?
You can download the 826673 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 826673?
AMPHENOL RF
