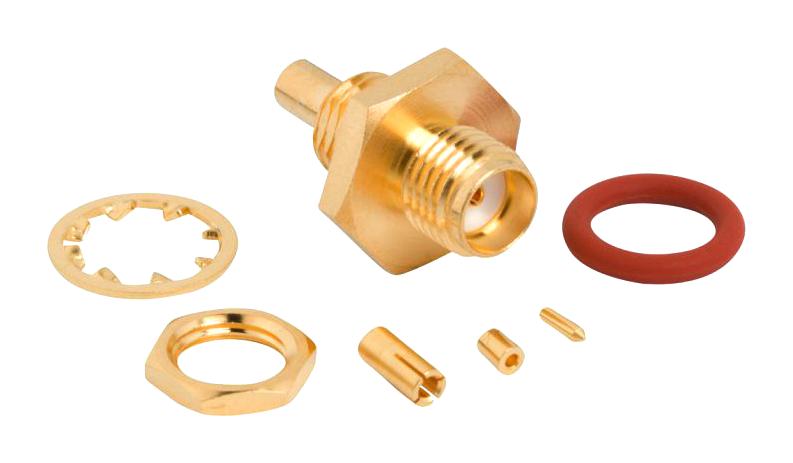

AMPHENOL RF 90110754 SMA Panel Mount Jack
The Amphenol RF SMA Panel Mount Bulkhead Jack for Micro-Coax Cable is a compact, reliable connector designed for secure panel mounting in space-constrained environments. Featuring a threaded coupling mechanism, it ensures a secure connection with vibration and tamper resistance. Operating efficiently up to 6 GHz, it is ideal for applications such as antennas, base stations, drones, test equipment, and wireless communication devices. Constructed with brass and gold plating, it offers excellent electrical performance, high durability, and RoHS compliance for versatile industrial and consumer uses.
AMPHENOL RF 90110754 SMA Panel Mount Jack Specifications:
- Impedance: 50 Ω
- Frequency Range: DC to 6 GHz
- Voltage Rating: 166 VRMS Max Continuous
- Dielectric Withstanding Voltage: 500 VRMS Min
- VSWR (Return Loss): 3-6 GHz 1.4 Max
- Insulation Resistance: 5000 MΩ Min
- Center Contact Resistance: 3.0 mΩ Min
- Outer Contact Resistance: 2.0 mΩ Min
- Temperature Range: -65°C to +165°C
- Mating Cycles: 500 Min
- Coupling Mechanism: Threaded
- Body Material: Brass, gold plated
- Contact Material: Beryllium copper, gold plated
- Insulator: PTFE, natural
- RoHS Compliance: Yes
Buy the Buy Amphenol RF SMA Panel Mount Bulkhead Jack Part Number 90110754 Online
Purchase the Amphenol RF SMA Panel Mount Bulkhead Jack 90110754 online today to benefit from reliable 50 ohm impedance performance up to 6 GHz. Its threaded coupling and tamper-resistant design make it suitable for antennas, drones, and industrial automation. Crafted with durable brass and gold plating, it offers excellent electrical conductivity, corrosion resistance, and long-term durability. Ideal for space-constrained setups, this connector ensures secure, vibration-resistant, and RoHS-compliant connections for a wide range of high-frequency applications. Order now to upgrade your projects with top-tier RF connectivity.
Order your Amphenol RF SMA Panel Mount Bulkhead Jack 90110754 today and ensure secure, high-frequency connections for your antennas, test equipment, or industrial applications.
