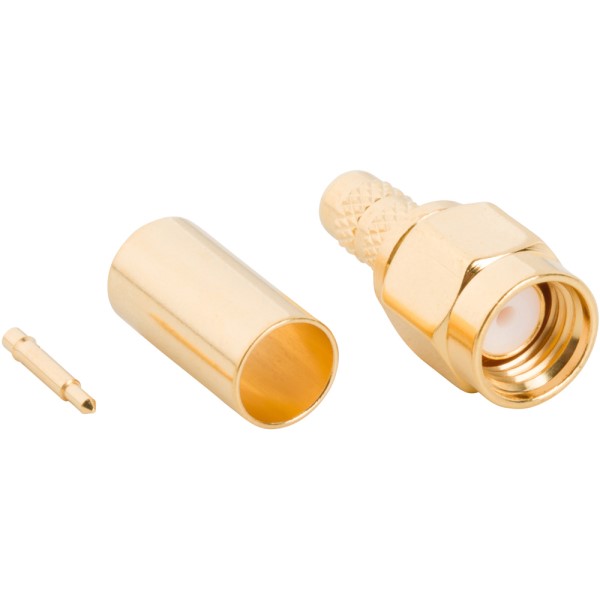

AMPHENOL RF 9019871 SMA Connector
The Amphenol 901-9871 SMA connector is a high-performance, compact connector ideal for applications such as base stations, cable assemblies, instrumentation, and mil/aero systems. Its threaded interface and broadband performance (DC to 18 GHz) make it suitable for microwave devices and phase-matching techniques. Constructed with materials like beryllium copper and brass, and available with nickel or gold plating, this connector offers excellent electrical performance and durability. It adheres to MIL-C-39012 and CECC 22110/111 standards, ensuring compatibility across manufacturers.
AMPHENOL RF 9019871 SMA Connector Specifications:
- Impedance: 50 Ω
- Frequency Range (semi-rigid cable): DC - 18 GHz
- Frequency Range (flexible cable): DC - 12.4 GHz
- RF Leakage (semi-rigid cable): 100 dB-f minimum @ 3 GHz
- RF Leakage (flexible cable): 60 dB minimum @ 3 GHz
- Voltage Rating (semi-rigid): ≤ 500 Vrms
- Voltage Rating (flexible): ≤ 335 Vrms
- Contact Resistance (center): ≤ 2 mΩ
- Contact Resistance (outer): ≤ 2 mΩ
- Contact Resistance (braid to body): ≤ 0.5 mΩ
- Insulation Resistance: 5,000 MΩ minimum
- Insertion Loss: maximum dB maximum = .03 √ f(GHz)
- Dielectric Withstanding Voltage (semi-rigid): 1,500 Vrms
- Dielectric Withstanding Voltage (flexible): 1,000 Vrms
- Mating: .250-36 threaded coupling
- Coupling Torque (max): 15 in-lbs (22 / 170 N-cm)
- Coupling Torque (recommended): 7 / 10 in-lbs (80 / 110 N-cm)
- Coupling Nut Retention Force: 100 in-lbs (300 N-cm) min
- Material (Center Contact): Beryllium copper, gold plated
- Material (Other Metal Parts): Non-magnetic stainless steel
- Material (Insulator): PTFE (ASTM D1457)
- Material (Gasket): Silicone rubber (MIL-R-5847 and ZZ-R-765)
- Military Standards: MIL-C-39012, MIL-C-83517
Buy the 901-9871 AMPHENOL RF SMA Connector | myMectronic
Securely purchase the Amphenol 901-9871 SMA connector and ensure reliable connectivity for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL RF 9019871?
You can click on the BUY or RFQ button to purchase 9019871 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 9019871?
You can download the 9019871 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 9019871?
AMPHENOL RF
