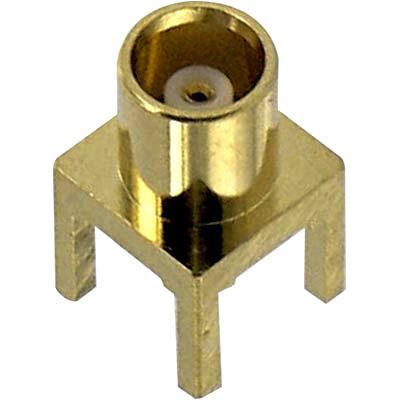

AMPHENOL RF 90822106 Thru-Hole Connector
The Amphenol 908-22106 MMCX connector is a micro-miniature connector series known for its snap-lock mechanism, enabling 360-degree rotation for flexible PCB layouts. Conforming to European CECC 22000 specifications, this connector is part of the MicroMate family, offering a 6 GHz 50 Ω interconnect system. It's suitable for a wide range of applications including antennas, cable assemblies, instrumentation, satcom, and PCMCIA cards. The connector provides broadband performance with low reflection and features quick connect/disconnect capabilities, reducing installation time.
AMPHENOL RF 90822106 Thru-Hole Connector Specifications:
- Impedance: 50 Ω
- Frequency range: DC - 6 GHz
- VSWR: 1.15 max. @ DC - 4 GHz, 1.40 max. @ 4 - 6 GHz
- RF-leakage: 60 dB minimum 1 GHz (fexible cable), 70 dB minimum 1 GHz (semi-rigid cable)
- Voltage rating (at sea level): ≤ 170 Vrms
- Contact resistance: center contact: ≤ 10 mΩ, outer contact: ≤ 5 mΩ
- Insulation resistance: 1,000 MΩ minimum
- Dielectric withstanding voltage: 500 Vrms (at sea level)
- Mating: Snap-on coupling
- Contact Captivation: 2.3 lbs
- Engagement force: ≤ 3.4 lbs (15N)
- Disengagement force: ≥ 1.4 lbs (6N)
- Durability (matings): 500 cycles minimum
- Temperature range: -55°C to +155°C
- Thermal shock: MIL-STD-202, method 107, cond. F
- Moisture resistance: MIL-STD-202, method 106
- Corrosion: MIL-STD-202, method 101, cond. B
- Vibration: 3 cycles, 3 opposite directions, 10 - 150 Hz
- Mechanical shock: MIL-STD-202, method 213, cond. B
- Humidity: MIL-STD-202, method 103, cond. B
- Body and outer contacts: Brass, nickel or gold plated
- Male contact: Brass, gold plated
- Female contact: Beryllium copper or phosphor bronze, gold plated
- Crimp ferrule: Copper or brass, nickel plated
- Insulator: LCP, PTFE or PFA
