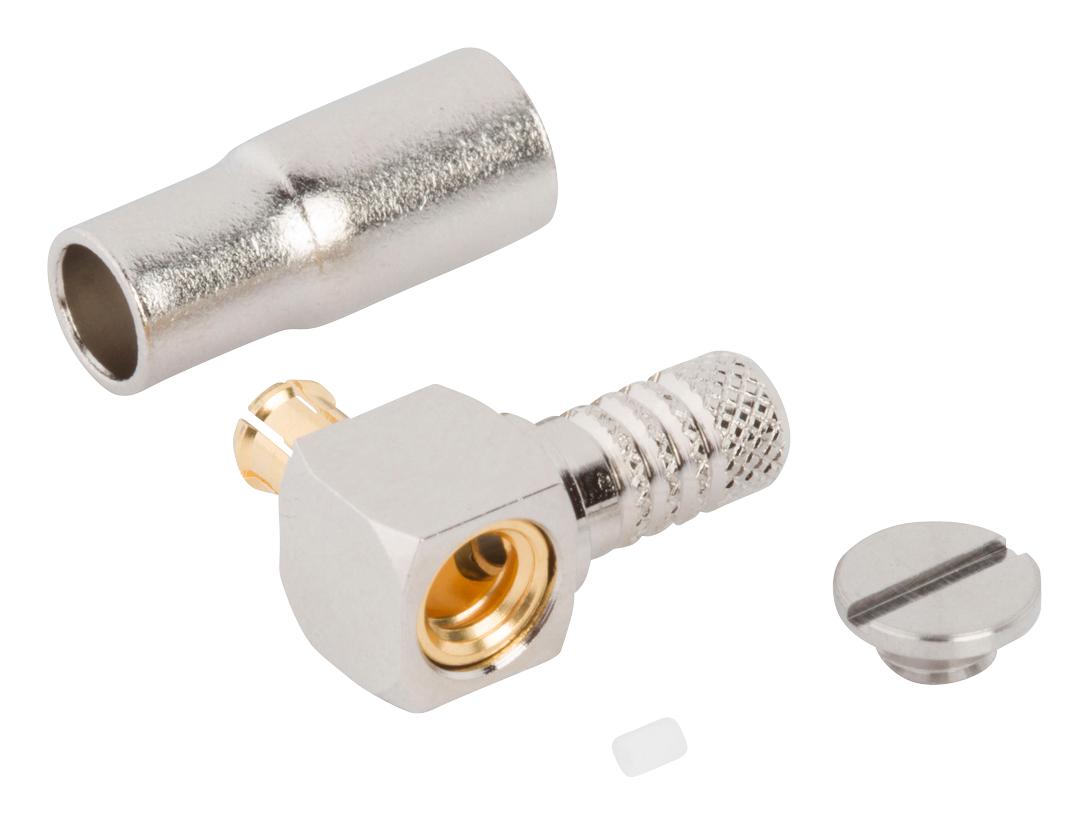

AMPHENOL RF 919416P71A12G RF Connector
This precision RF connector features a beryllium copper body with gold plating, ensuring excellent electrical performance and durability for high-frequency applications. Designed for DC-12 GHz frequency range, it exhibits an impedance of 75 ohms and a VSWR of 1.22 max at DC - 6 GHz. The connector withstands dielectric voltages up to 500 VRMS and temperature ranges from -65°C to +165°C. Its quality construction includes a brass rear body with nickel plating, stainless steel cap, and PTFE insulators, making it ideal for reliable industrial and communications use.
AMPHENOL RF 919416P71A12G RF Connector Specifications:
- Impedance: 75 Ohm
- Frequency Range: DC-12 GHz
- VSWR (Return Loss): 1.22 max @ DC to 6 GHz, 1.43 max @ 6 to 12 GHz
- Dielectric Withstanding Voltage: 500 VRMS
- Temperature Range: -65°C to +165°C
- Material: Beryllium copper body with gold plating, brass rear body with nickel plating, stainless steel cap, PTFE insulators
- Durability: 500 cycles min
- Dimensions: Connector length and entry dimensions as specified
- Mechanical: Robust construction for industrial environments
- Electrical: Low signal loss, high stability, high frequency performance
Buy the Amphenol 919416P71A12G – Reliable RF Connector for Industrial Applications
Purchase the Amphenol RF connector 919416P71A12G online today to ensure high performance in your RF and industrial applications. Designed for frequencies up to 12 GHz, it features a durable beryllium copper body with gold plating for optimal conductivity and corrosion resistance. Its robust construction withstands over 500 connection cycles and operates reliably within a temperature range of -65°C to +165°C. Perfect for communication systems, test equipment, and high-frequency data transfer, this connector offers excellent VSWR and dielectric strength, ensuring your systems function flawlessly under demanding conditions. Order now and experience quality and reliability you can trust.
Get Amphenol 919416P71A12G today—built for precision, high-frequency performance, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF 919416P71A12G?
You can click on the BUY or RFQ button to purchase 919416P71A12G from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 919416P71A12G?
You can download the 919416P71A12G datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 919416P71A12G?
AMPHENOL RF
