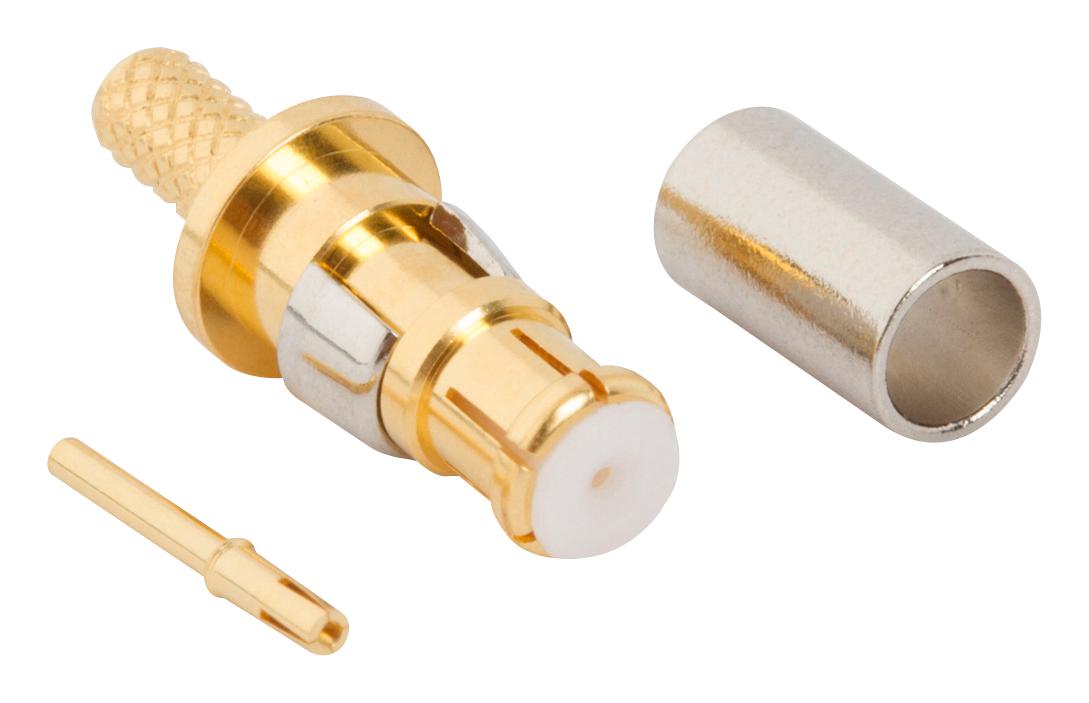

AMPHENOL RF 920510P51S RF Connector
The 920-510P-51S is a precision RF connector with a 50-ohm impedance, suitable for high-frequency applications up to 6 GHz. Constructed with beryllium copper and gold plating, it features a durable design capable of handling up to 40W power at 2.6 GHz and -55°C to +125°C temperature range. Its compact size includes a crimped ferrule with a .128-inch hex size, ensuring excellent electrical performance and mechanical reliability. Ideal for RF testing, communications, and instrumentation systems, it offers excellent return loss and dielectric withstand voltage, making it a versatile choice for RF engineers.
AMPHENOL RF 920510P51S RF Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC - 6 GHz
- Material: Body and Contact - Beryllium Copper, Gold Plated
- Spring Ring Material: Beryllium Copper, Nickel Plating
- Ferrule Material: Copper, Nickel Plating
- Insulator: PTFE, Natural
- Return Loss: -24 dB at DC - 2 GHz, -20 dB at 2 - 4 GHz, -16 dB at 4 - 6 GHz
- Dielectric Withstanding Voltage: 1000 VRMS minimum
- Power Handling: 40 W max at 2.6 GHz and 85°C
- Durability: Minimum 200 cycles for smooth bore
- Temperature Range: -55°C to +125°C
- Crimped Ferrule Size: .128 inch
- Mechanical: Soldered to cable center conductor
- Packaging: Single pack with marking ‘AMPHENOL RF 920-SI0P-5IS & Date Code’
- Connector Size: Approximate length 0.315 inches, panel cutout dimension 4.58 inches
- Recommended Panel Hole Size: Precise for compatibility
- Cable Strip Dimensions: Standard for snug fit, detailed in design specifications
- Certifications: None specified
Buy the Buy Amphenol RF Part Number 920510P51S Online
Purchase the Amphenol RF 920-510P-51S connector online today for reliable high-frequency performance. Designed with durable beryllium copper and gold plating, this 50-ohm RF connector supports frequencies up to 6 GHz and handles power up to 40W. Its robust construction ensures excellent electrical performance and mechanical resilience in demanding environments. Perfect for RF testing, communications, and instrumentation, it features a compact design with a .128-inch crimped ferrule, supporting seamless cable connections. Order now for fast delivery and trusted quality tailored for your RF applications.
Get Amphenol RF 920-510P-51S today—built for precision and long-lasting durability in high-frequency RF systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF 920510P51S?
You can click on the BUY or RFQ button to purchase 920510P51S from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 920510P51S?
You can download the 920510P51S datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 920510P51S?
AMPHENOL RF
