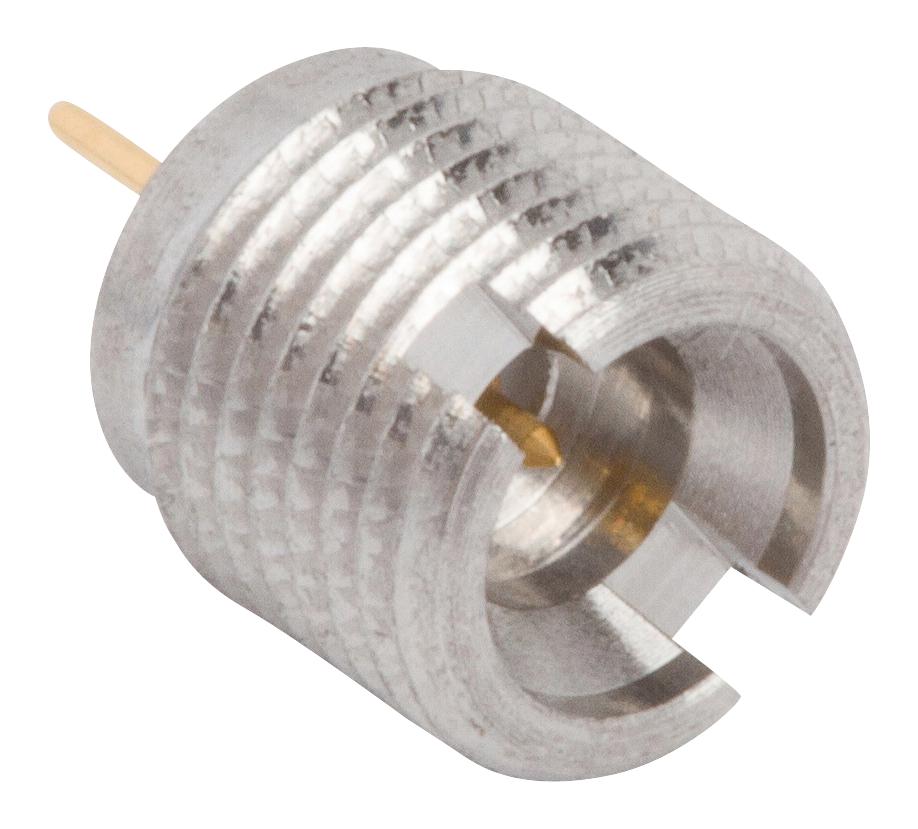

AMPHENOL RF 925201J51S RF Connector
The RF connector features a stainless steel body with passivation, BeCu gold-plated contacts, and PTFE insulators, ensuring excellent electrical performance. It is impedance-matched at 50 ohms, with a durability of at least 500 cycles and an operating temperature range from -65°C to +165°C. The connector includes a full detent mechanism, precision threading, and MIL STD compliance, making it suitable for high-frequency applications requiring robust, reliable connections in demanding environments.
AMPHENOL RF 925201J51S RF Connector Specifications:
- Material: Stainless steel body with passivation
- Contact Material: BeCu with gold plating
- Insulator Material: PTFE
- Impedance: 50 ohm
- Temperature Range: -65°C to +165°C
- Durability: 500 cycles minimum
- Connector Type: SMPM jack with full detent
- Thread: #8-64 UNS-2A/2B threaded interface
- Maximum Voltage: Not specified
- Dimensions: Includes precise threading and contact sizes
- Certifications: MIL STD 348
Buy the Buy Amphlenol RF SMPM Jack Part Number 925-201J-51S Online
Secure your high-frequency connection needs by ordering the Amphlenol RF SMPM jack online today. Designed for durability, precision, and reliable performance in demanding environments, this connector features a stainless steel body, gold-plated BeCu contacts, and PTFE insulator. With 50 ohm impedance, a temperature range from -65°C to +165°C, and MIL STD compliance, it is ideal for demanding applications. Convenience, quality, and performance are just a click away—purchase now to enhance your systems easily and confidently.
Order your Amphlenol Series925-201J-51S RF SMPM jack today and ensure your high-frequency systems have the reliable, durable connectors they need.
Frequently Asked Questions
Where can I buy AMPHENOL RF 925201J51S?
You can click on the BUY or RFQ button to purchase 925201J51S from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 925201J51S?
You can download the 925201J51S datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 925201J51S?
AMPHENOL RF
