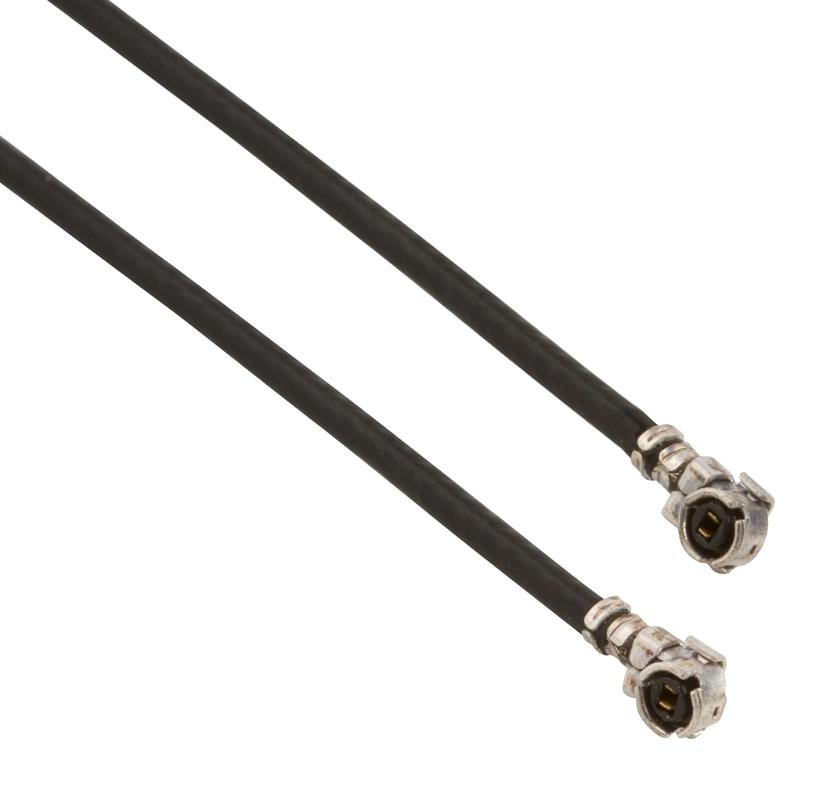

AMPHENOL RF A1PA132025B2 RF Micro Coaxial Connector
The Amphenol RF ultraminiature connector series offers low profile, 50 ohm impedance PCB connectors suited for space-constrained applications like IoT, consumer devices, RFID, and GPS. Featuring snap-on coupling and excellent electrical performance from DC to 6 GHz, these connectors ensure secure mating with small footprints—3mm x 3mm for AMC and 2mm x 2mm for AMMC variants. Compatible with industry standards, they include various cable assembly options with different cable types, lengths, and colors, making them ideal for portable, handheld, and remote measuring equipment in demanding environments.
AMPHENOL RF A1PA132025B2 RF Micro Coaxial Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6 GHz
- Voltage Rating: 60 Volts RMS Max Continuous, 200 VRMS Max
- Center Contact Resistance: 20 mΩ Min
- Outer Contact Resistance: 10 mΩ Min
- VSWR: 3 (-18 dB) Max at DC-3 GHz, 4 (-16 dB) Max at 3-6 GHz
- Power Handling: 14W at 1 GHz, 25°C
- Temperature Range: -40°C to +90°C
- Mechanical: 30 mating cycles
- Coupling Mechanism: Snap-On
- Body Material: Copper Alloy, Gold Plated
- Contact Material: Phosphor Bronze, Gold Plated
- Insulator: PBT
- PCB Footprint: 3mm x 3mm (AMC), 2mm x 2mm (AMMC)
- Mated Height: 25mm (AMC), 1.4mm (AMMC)
- Cable Types: 081, 113, RG-178, 132
- Cable Lengths: Standard 50, 100, 150, 200, 250, 300 mm
- Operating Environment: Suitable for various industrial, consumer, and portable applications
Buy the Amphenol RF A1PA132 U– Reliable RF Connectors for Industrial Applications
Enhance your electronic projects with the high-quality Amphenol RF RF Micro Coaxial Connector series. Designed for space-limited applications, these connectors offer excellent electrical performance up to 6 GHz, ensuring reliable signal transmission. With snap-on coupling for secure mating, they are ideal for IoT, RFID, GPS, and portable devices. Available in various cable types and lengths, they guarantee flexibility and durability in demanding environments. Purchase online today to enjoy fast delivery, competitive pricing, and trusted quality for your industrial and consumer electronics needs.
Buy Amphenol RF A1PA132 now and experience unmatched reliability and performance in space-constrained RF connections.
Frequently Asked Questions
Where can I buy AMPHENOL RF A1PA132025B2?
You can click on the BUY or RFQ button to purchase A1PA132025B2 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part A1PA132025B2?
You can download the A1PA132025B2 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of A1PA132025B2?
AMPHENOL RF
