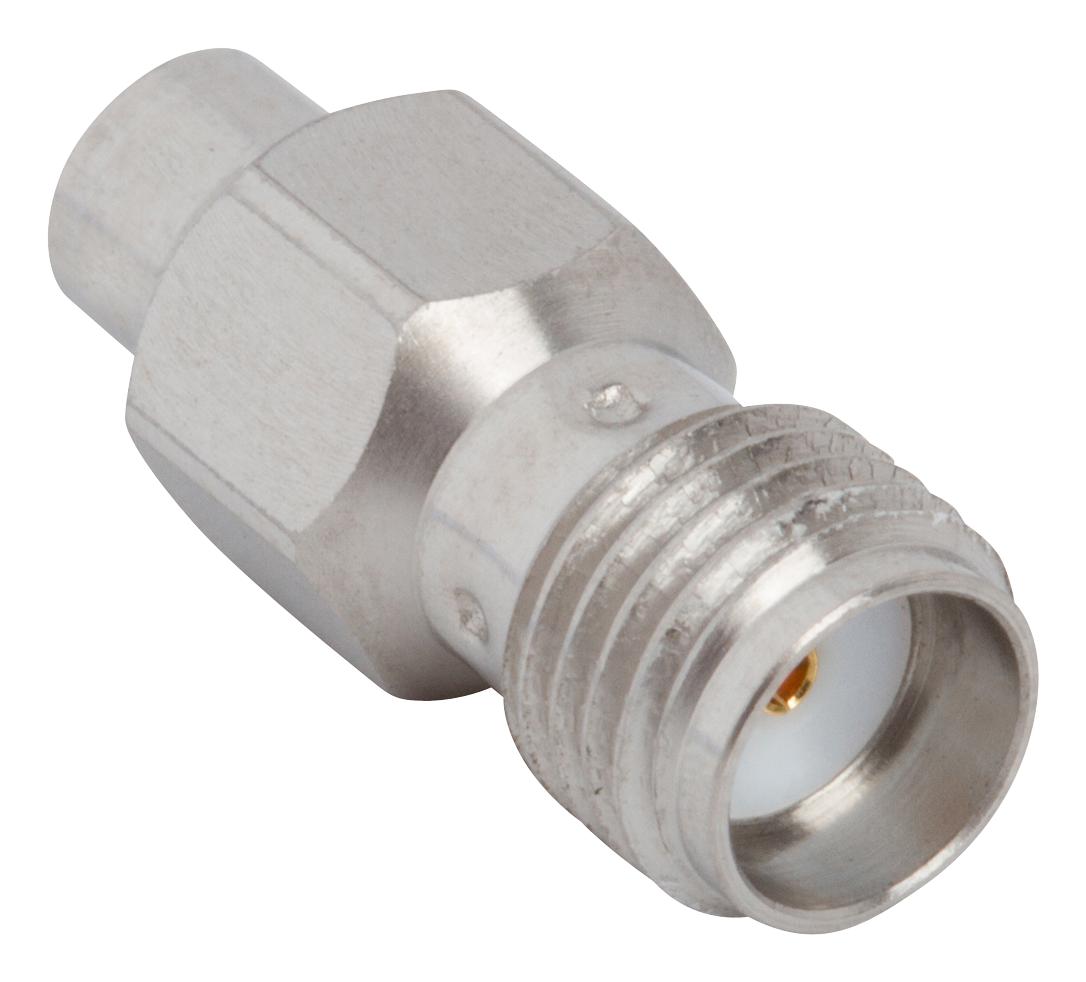

AMPHENOL RF ADSMAJSMPJ3 RF Connector
This high-quality SMA jack connector features a stainless steel body with passivation, gold-plated BeCu contacts, and PTFE insulators, ensuring reliable performance up to 26.5 GHz. It offers an impedance of 50 ohms, excellent VSWR characteristics, and dielectric withstand voltage of 500 VRMS minimum. Designed for durability, it endures 500 cycles per interface and operates across temperatures from -65°C to 165°C. Packaged individually, this connector is ideal for RF applications requiring high precision and robust mechanical and electrical properties.
AMPHENOL RF ADSMAJSMPJ3 RF Connector Specifications:
- Body Material: Stainless steel, passivated
- Contact Material: BeCu, gold-plated
- Insulator Material: PTFE
- Impedance: 50 ohms
- Frequency Range: DC to 26.5 GHz
- VSWR (Return Loss): 32 dB min @ DC - 4 GHz, 22 dB min @ 4 - 10 GHz, 20 dB min @ 10 - 26.5 GHz
- Dielectric Withstanding Voltage: 500 VRMS min
- Mechanical Durability: 500 cycles for SMA and SMP interfaces
- Temperature Range: -65°C to 165°C
- Packaging: Single pack with marked bag
- Interface: SMA series, MIL-STD-348 compatible
- Mechanical Connection: 1/4-36UNS-2A thread
Buy the Amphe nol ADSMAJSMPJ3 – Reliable RF Connector for Industrial Applications
Purchase the Amphe nol ADSMAJSMPJ3 RF connector online today for reliable, high-quality performance in RF, microwave, and communication systems. Designed with stainless steel, BeCu contacts, and PTFE insulators, it offers excellent electrical and mechanical durability. Capable of operating up to 26.5 GHz with low VSWR and withstands temperatures from -65°C to 165°C. Individually packaged for convenience, this connector is perfect for industry professionals seeking high reliability and long-term stability in critical RF applications. Order now to enhance your project’s performance.
Order your Amphelol Series ADSMAJSMPJ3 connector today and ensure high-performance RF connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF ADSMAJSMPJ3?
You can click on the BUY or RFQ button to purchase ADSMAJSMPJ3 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part ADSMAJSMPJ3?
You can download the ADSMAJSMPJ3 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of ADSMAJSMPJ3?
AMPHENOL RF
