AMPHENOL RF FA1NBSJC046 FAKRA Connector
The FA1NBSJC046 is a versatile and high-quality FAKRA connector designed for automotive RF applications. It features a durable construction with a plastic housing and gold-plated contacts to ensure reliable signal transmission up to 4 GHz. Suitable for various coaxial cables like RG-58 and RG-174, this connector meets industry standards for mechanical and environmental performance, including multiple color coding options for easy identification. Its robust design supports over 100 mating cycles, making it ideal for telematics, GPS, Bluetooth, and satellite radio systems in vehicles, ensuring high performance and durability under automotive conditions.
AMPHENOL RF FA1NBSJC046 FAKRA Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC to 4 GHz
- VSWR: 1.15 max at 1 GHz, 1.25 max at 4 GHz
- Insertion Loss: 0.3 dB max from DC to 3 GHz
- Insulation Resistance: ≥ 1000 MΩ
- Center Contact Resistance: ≤ 10 mΩ
- Dielectric Withstanding Voltage: > 1000 VRMS
- Durability (mating cycles): Over 100 cycles
- Plastic Housing - Engagement Force: 20 N min
- Plastic Housing - Disengagement Force: 180 N max
- Cable Retention Force: 12 N min
- Operating Temperature Range: -55°C to +125°C
- Vibration and Shock Resistance per MIL-STD-202
- Materials: Nylon 6/6, PBT+15%GF, Brass, Beryllium Copper, Copper, TFE
- Platings: Gold, Nickel, Tin

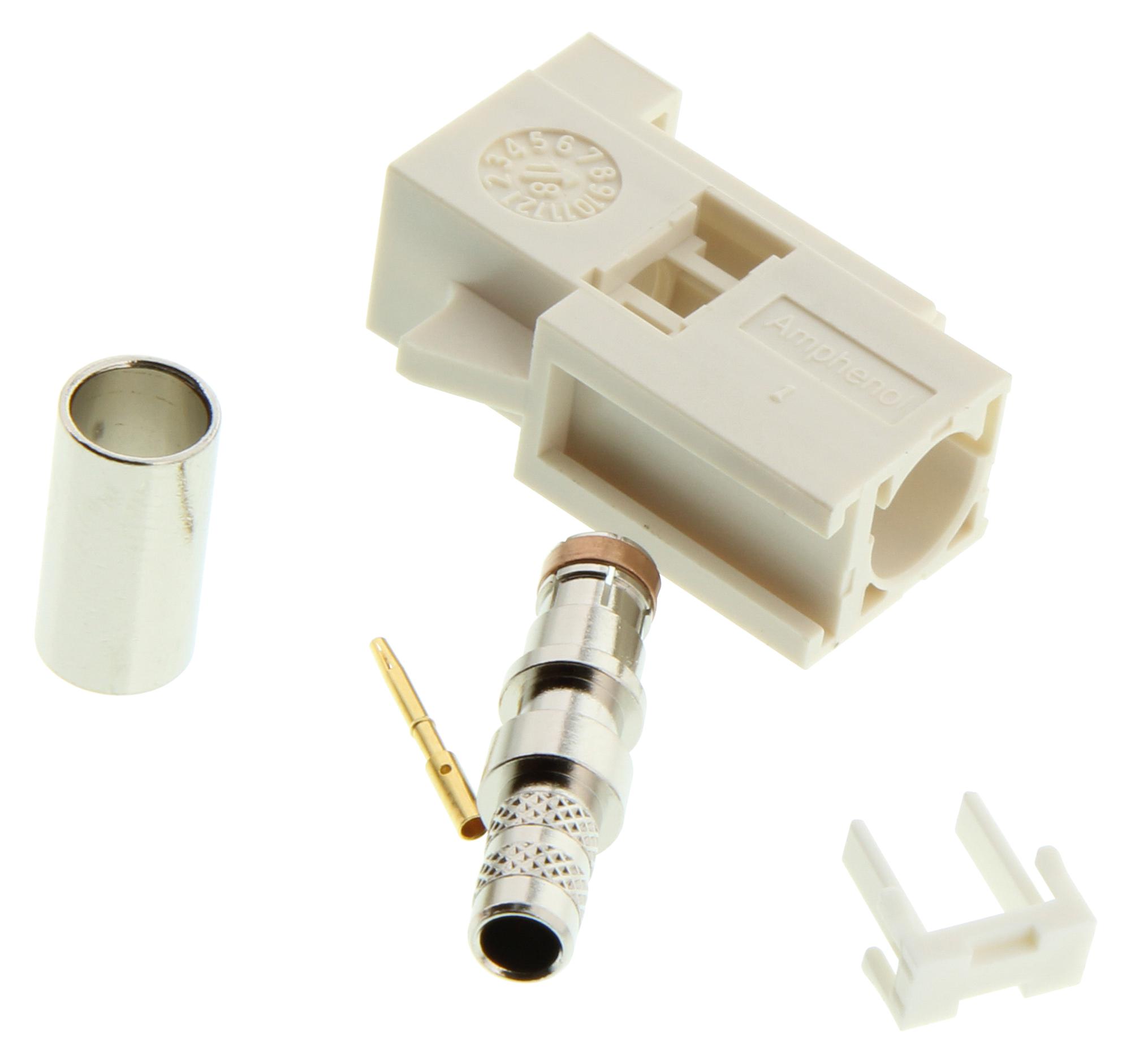

Buy the Buy Amphenol FAKRA Part Number FA1NBSJC046 Online
Purchase the FA1NBSJC046 FAKRA connector online now to guarantee your automotive RF systems operate with high reliability and excellent performance. Designed for frequencies up to 4 GHz, it features durable construction with gold-plated contacts for superior signal fidelity. Supported over 100 mating cycles, this connector is perfect for GPS, Bluetooth, satellite radio, and telematics applications. Its multiple color coding options allow easy identification, making it ideal for automotive environments. Buy online today for fast delivery and quality assurance.
Order your Amphenol series FA1NBSJC046 high-performance automotive RF connector today and ensure reliable, high-frequency signal connections in your telematics systems.
Frequently Asked Questions
Where can I buy AMPHENOL RF FA1NBSJC046?
You can click on the BUY or RFQ button to purchase FA1NBSJC046 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part FA1NBSJC046?
You can download the FA1NBSJC046 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of FA1NBSJC046?
AMPHENOL RF
