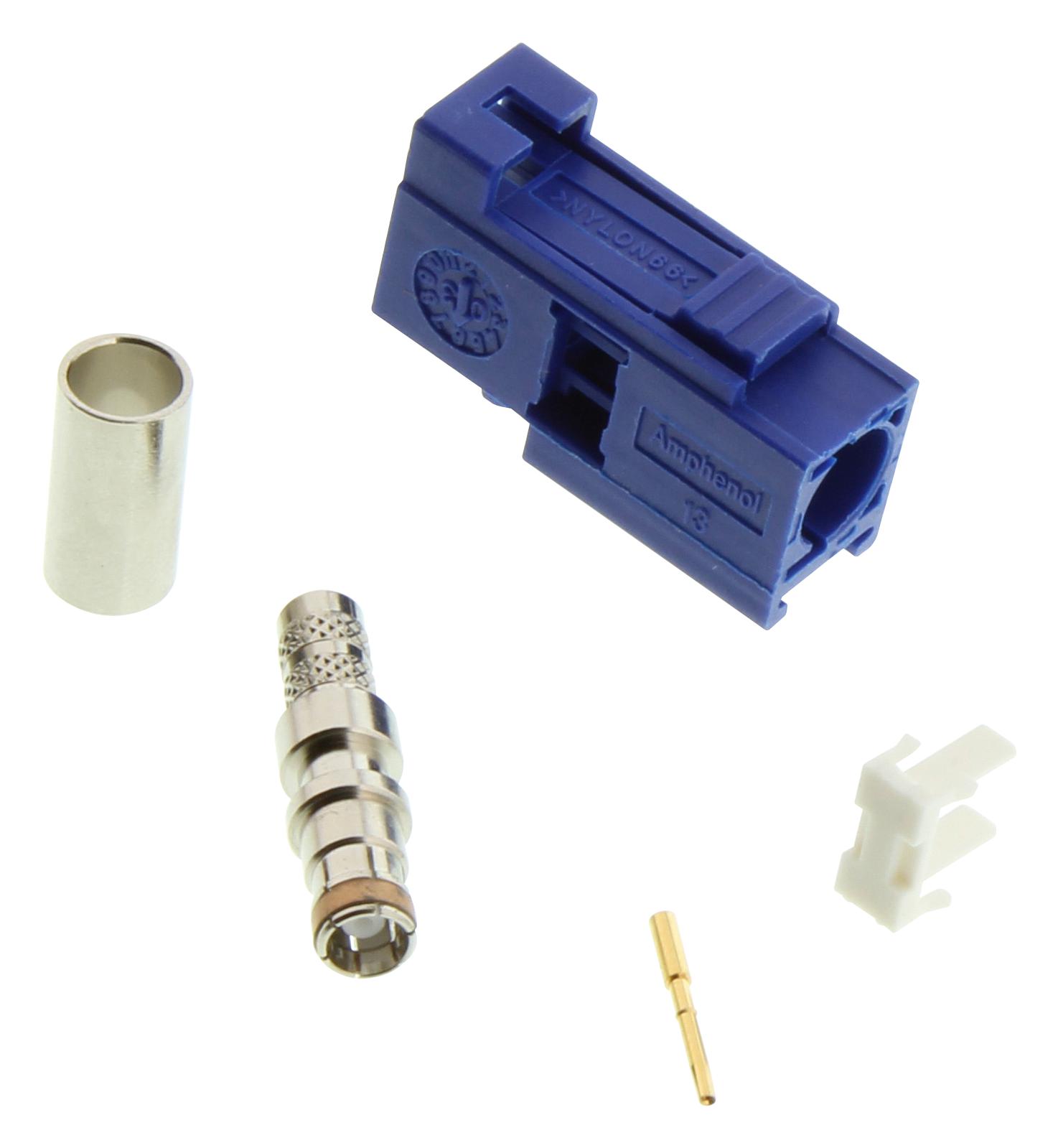

AMPHENOL RF FA1NCSJC046 Automotive FAKRA Connector
The FA1NCSJC046 is a high-performance automotive FAKRA connector designed for RF telematics systems. It features a robust construction with a dielectric withstand voltage of 1000 VRMS, supports frequencies up to 4 GHz, and meets SAE USCAR standards. The connector offers a secure locking mechanism, durable materials, and a variety of color codes for easy identification. Compatible with multiple coaxial cables such as RG-58 and RG-174, it's ideal for vehicular GPS, satellite radio, and Bluetooth applications, ensuring long-lasting connectivity under demanding environmental conditions.
AMPHENOL RF FA1NCSJC046 Automotive FAKRA Connector Specifications:
- Impedance: 50 Ohm
- Frequency Range: DC - 4 GHz
- VSWR: 1.15 max at 1 GHz, 1.25 max at 4 GHz
- Insertion Loss: < 0.3 dB from DC - 3 GHz
- Insulation Resistance: >= 1000 MΩ
- Center Contact Resistance: <= 20 mΩ
- Dielectric Withstanding Voltage: 1000 VRMS
- Durability: Minimum 100 mating cycles
- Plastic Housing: Nylon 6/6
- Secondary Locking Clip: Yes
- Material: Beryllium Copper, Brass, Copper, TFE
- Plating: Gold (Center contact), Nickel (Body, Barrel, Ferrule)
Buy the Amphenol Series FA1 FA1NCSJC046 High-Frequency Automotive FAKRA Connector
Order the Amphenol FA1NCSJC046 automotive FAKRA connector online today to ensure reliable, high-frequency RF connections for telematics systems. Designed to meet strict industry standards, this connector supports up to 4 GHz frequency range with secure locking features and a variety of color codes for easy identification. Its robust construction is suitable for demanding automotive environments, providing long-lasting, high-quality performance on GPS, Bluetooth, satellite radio, and vehicle diagnostics applications. Buy now to enhance your vehicle's communication systems with precision-engineered components from a trusted supplier.
Get Amphenol FA1NCSJC046 today—built for precision, durability, and seamless vehicular RF connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL RF FA1NCSJC046?
You can click on the BUY or RFQ button to purchase FA1NCSJC046 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part FA1NCSJC046?
You can download the FA1NCSJC046 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of FA1NCSJC046?
AMPHENOL RF
