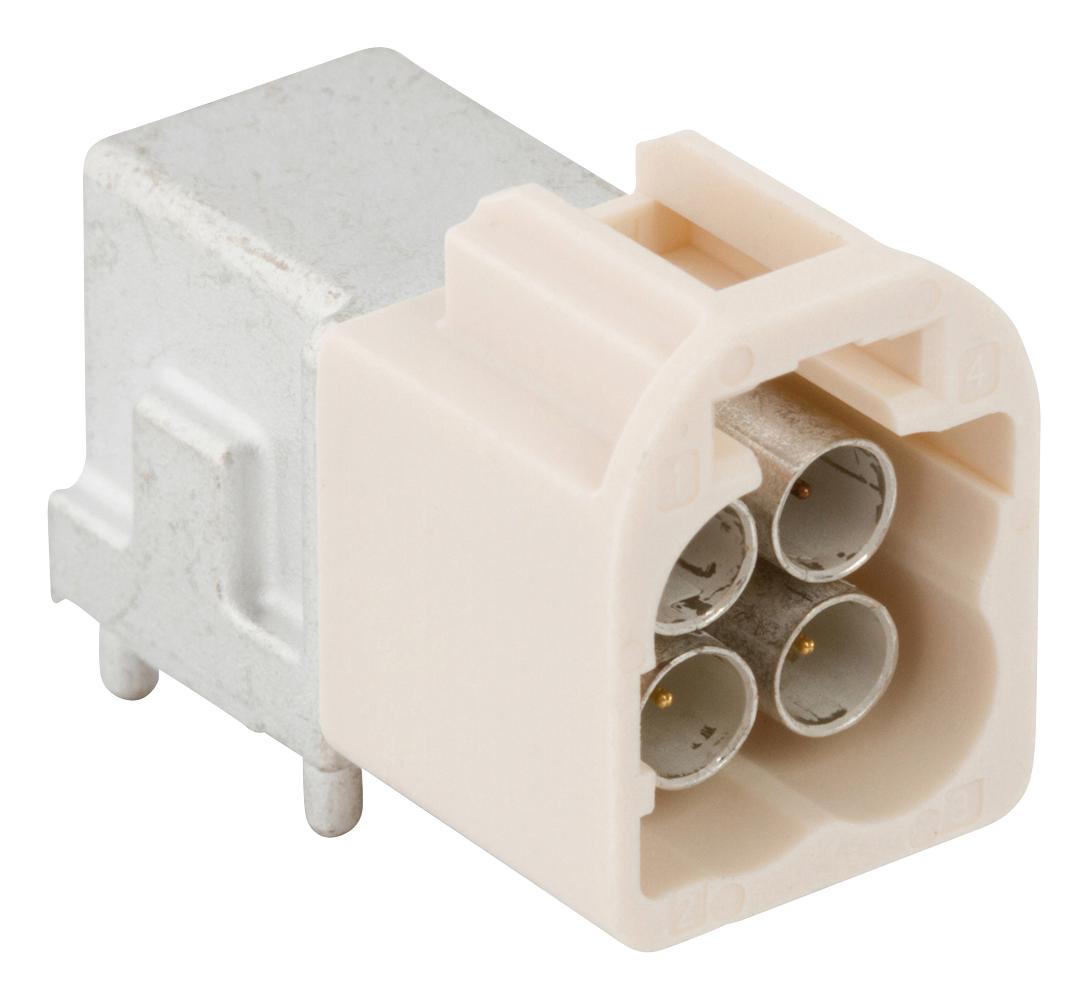

AMPHENOL RF FM4NBRPPCB1 Automotive Connector
The Amphenol RF AUTOMATE Mini-FAKRA connector series features high-performance automotive interconnects supporting up to 20 Gbps data rates. Designed for compact spaces, these connectors offer low engagement forces, impact resistance, and visual color guides for ease of assembly. Ideal for automotive applications such as surround view cameras, ECUs, autonomous vehicles, ADAS, high-bandwidth infotainment, and V2X communication, these connectors ensure reliable, high-speed data transmission in harsh environments with a robust construction, including zinc alloy bodies and gold-plated contacts, all complying with RoHS standards.
AMPHENOL RF FM4NBRPPCB1 Automotive Connector Specifications:
- Impedance: 50 Ω Nominal
- Frequency Range: DC - 9 GHz
- Return Loss: -25 dB @ DC - 3 GHz, -20 dB @ 3 - 6 GHz, -12 dB @ 6 - 9 GHz
- Dielectric Withstanding Voltage: 750 VRMS
- Current Rating: <2A DC
- Contact Resistance: <5 mΩ
- Mating Cycles: Minimum 25
- Engagement Force: <50N
- Disengagement Force: 25N
- Temperature Range: -40°C to +105°C
- RoHS Compliant: Yes
- Body Material: Zinc Alloy, Matte Tin Plated
- Outer Contact: Brass, Matte Tin Plated
- Center Contact: Copper Nickel Alloy, Gold Plated
- Housing Material: PA4T
- Environmental Resistance: Impact resistant, suitable for harsh environments
Buy the Amphenol Series AUTOMATE Automotive Connector: FM4NBRPPCB1
Enhance your automotive connectivity with the Amphenol FM4NBRPPCB1 connector, supporting up to 20 Gbps data rates. Its compact, impact-resistant design features color-coded housings for easy assembly, ensuring reliable performance in harsh environments. Suitable for advanced vehicle systems including ADAS, surround view cameras, V2X, and infotainment, this connector combines high electrical performance with durability. Invest in proven reliability and precise signal integrity with this essential component for next-generation automotive electronics. Purchase online today and ensure seamless high-speed connections in your vehicle.
Get Amphenol FM4NBRPPCB1 today—built for high-speed data transmission and durable automotive performance.
Frequently Asked Questions
Where can I buy AMPHENOL RF FM4NBRPPCB1?
You can click on the BUY or RFQ button to purchase FM4NBRPPCB1 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part FM4NBRPPCB1?
You can download the FM4NBRPPCB1 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of FM4NBRPPCB1?
AMPHENOL RF
