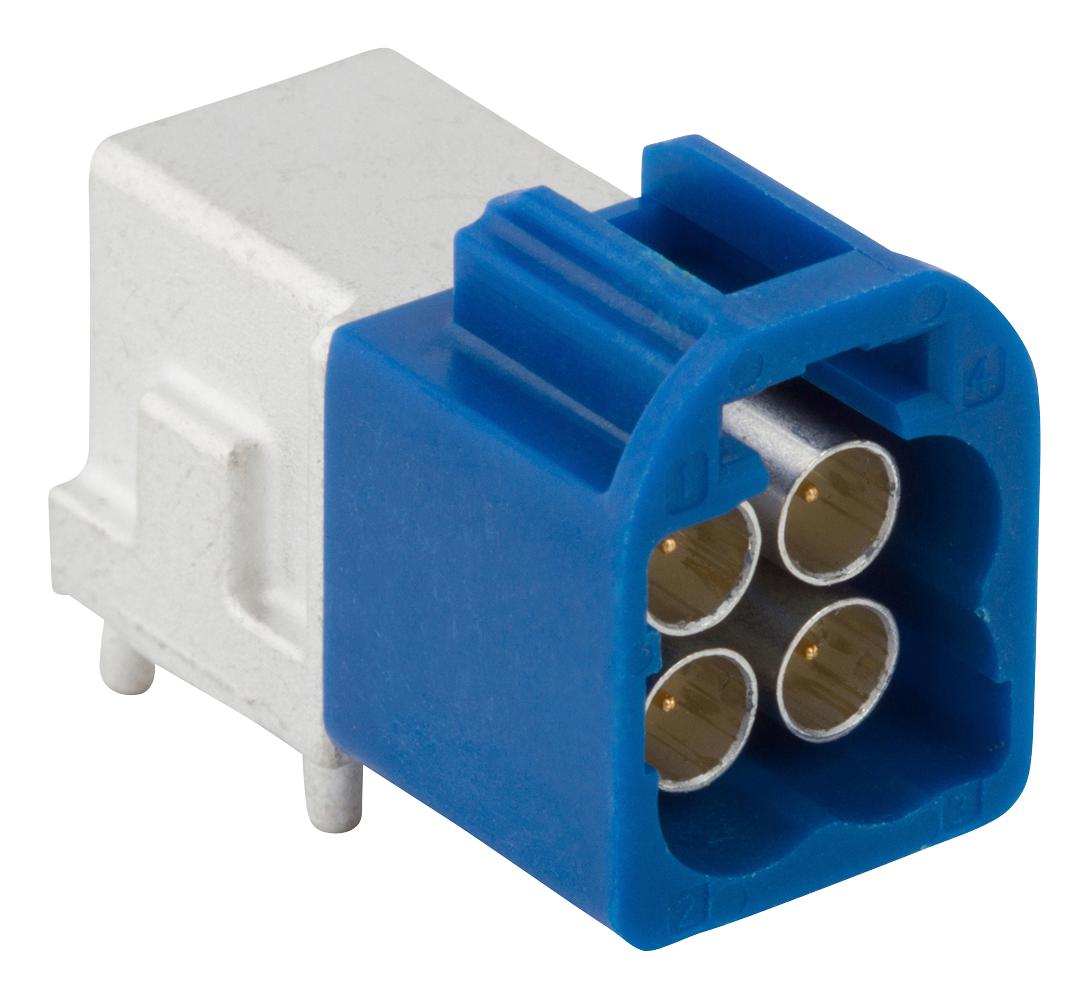

AMPHENOL RF FM4NCRPPCB1 Automotive High-Speed Connector
The FM4NCRPPCB1 is a high-performance automotive connector in the AUTOMATE Series, designed for space-efficient, reliable data transmission up to 20 Gbps. This quad port right-angle PCB plug features a compact, lightweight zinc alloy body with a matte tin plating finish, ensuring durability and corrosion resistance. Suitable for harsh environmental conditions with an operating temperature range of -40°C to +105°C, it supports 25 mating cycles and ensures low contact resistance. Ideal for automotive applications like ADAS, V2X communication, and high-bandwidth infotainment systems, this connector guarantees seamless connectivity in modern vehicles.
AMPHENOL RF FM4NCRPPCB1 Automotive High-Speed Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC - 9 GHz
- Return Loss: 1.12 (-25dB) Max. @ DC - 3 GHz; 1.22 (-20dB) Max. @ 3 GHz - 6 GHz; 1.67 (-12dB) Max. @ 6 GHz - 9 GHz
- Dielectric Withstanding Voltage: 750 VRMS
- Current Rating: < 2A DC
- Contact Resistance: < 5 mΩ
- Mechanical Life: 25 mating cycles minimum
- Engagement Force: < 50 N
- Disengagement Force: 25 N
- Temperature Range: -40°C to +105°C
- RoHS Compliant: Yes
- Body Material: Zinc alloy, matte tin plated
- Outer Contact: Brass, matte tin plated
- Center Contact: Copper nickel alloy, gold plated
- Housing Material: PA4T
- Insulator Material: Lcp
Buy the Amphenol Series AUTOMATE FM4NCRPPCB1: Automotive High-Speed Connector
Purchase the Amphenol Series AUTOMATE FM4NCRPPCB1 today to enhance your vehicle's communication systems with a space-saving, high-performance connector. Supports up to 20 Gbps data transfer and withstands harsh environments, making it ideal for ADAS, autonomous vehicles, and infotainment systems. Its robust zinc alloy body with gold-plated contacts offers durability and corrosion resistance. Easy to install with low engagement and disengagement forces, this connector ensures reliable, long-lasting connections for demanding automotive applications. Order now for quick, secure online delivery.
Order your Amphenol Series AUTOMATE FM4NCRPPCB1 today and secure reliable, high-speed connectivity for your automotive or industrial applications.
