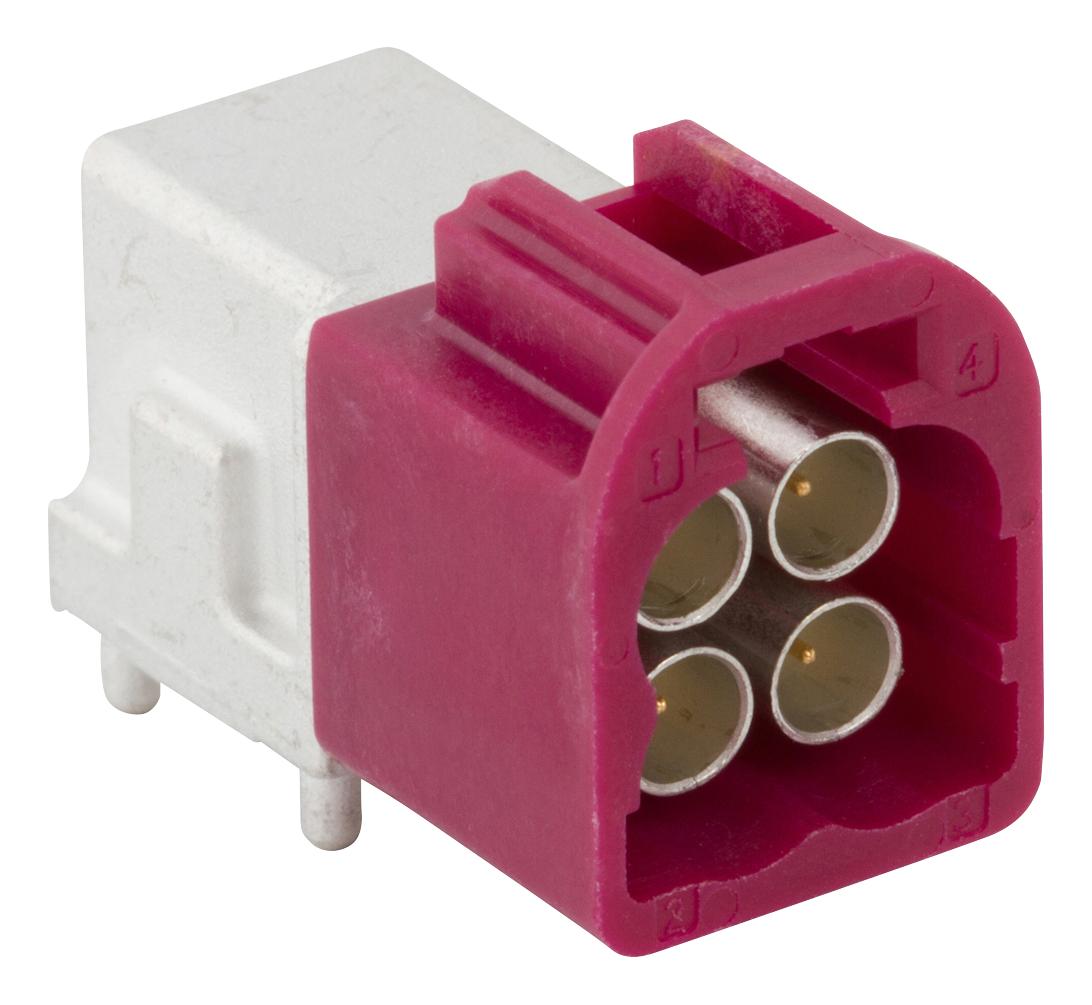

AMPHENOL RF FM4NDRPPCB1 Mini-FAKRA Automotive Connector
The Amphenol RF AUTOMATE Mini-FAKRA connector series offers high-performance, space-saving automotive interconnect solutions supporting up to 20 Gbps data rates. Designed for critical vehicle applications, these connectors feature low engagement forces, impact resistance, and color-coded housings for easy assembly. Suitable for autonomous vehicles, ADAS, infotainment, and V2X communications, they ensure reliable high-bandwidth data transmission in harsh environments. With robust mechanical and environmental specifications, these connectors meet industry standards for durability, performance, and safety in demanding automotive settings.
AMPHENOL RF FM4NDRPPCB1 Mini-FAKRA Automotive Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC - 9 GHz
- Return Loss: 1.12 (-25dB) Max. @ DC - 3 GHz; 1.22 (-20dB) Max. @ 3-6 GHz; 1.67 (-12dB) Max. @ 6-9 GHz
- Dielectric Withstanding Voltage: 750 VRMS
- Current Rating: <2A DC
- Contact Resistance: <5mΩ
- Mechanical Life: 25 Cycles Min.
- Engagement Force: <50N
- Disengagement Force: 25N
- Temperature Range: -40°C to +105°C
- RoHS Compliance: Yes
- Housing Material: Zinc Alloy, Matte Tin Plated
- Outer Contact Material: Brass, Matte Tin Plated
- Center Contact Material: Copper Nickel Alloy, Gold Plated
- Insulator Material: PA4T
- Environmental Resistance: Impact resistant, suitable for harsh environments
Buy the Amphenol Series AUTOMATE FM4NDRPPCB: FM4NDRPPCB1
Enhance your vehicle's connectivity with the high-performance Mini-FAKRA automotive connector from Amphenol RF. Supporting up to 20 Gbps data rates, these space-saving, impact-resistant connectors are ideal for autonomous driving, ADAS, infotainment, and V2X communications. Designed for durability and ease of assembly, they conform to industry standards for rigorous environmental conditions. Perfect for OEMs and automotive manufacturers seeking reliable, high-bandwidth interconnect solutions that reduce space and installation time while delivering exceptional performance in demanding vehicle environments.
Order your Amphenol Series AUTOMATE FM4NDRPPCB1 connector today and ensure reliable high-speed data transmission for automotive applications.
