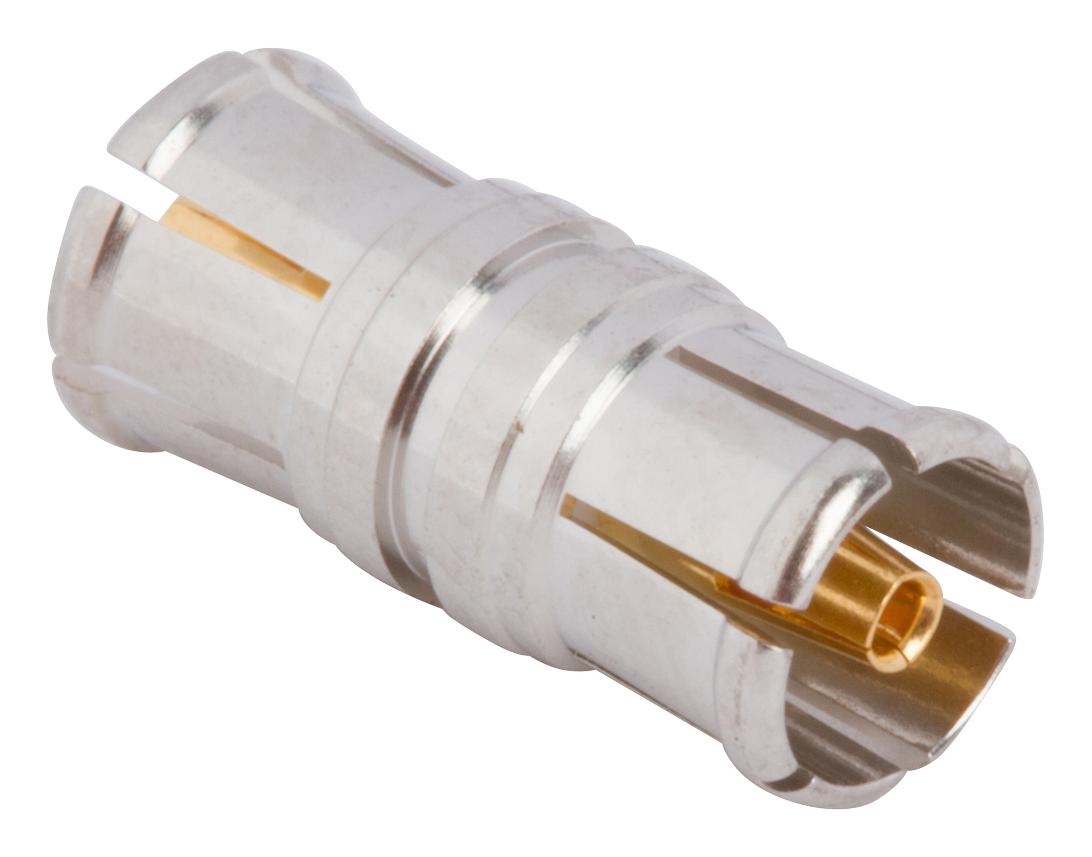

AMPHENOL RF PSMPFSBA1042 RF Board Connector
Amphenol RF PSMP connectors are high-performance board-to-board RF solutions designed for applications requiring up to 10 GHz operation and 200 W power handling. Featuring a compact three-piece design and a minimum spacing of 12.6 mm, these connectors are ideal for high-density and blindmate situations. Available in various mount types and sizes, they provide excellent return loss, low insertion loss, and reliable contacts with up to 100 mating cycles. Suitable for base stations, radios, filters, and amplifiers, they ensure optimal RF performance and durability in demanding environments.
AMPHENOL RF PSMPFSBA1042 RF Board Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 10 GHz
- Return Loss: 32.2 dB @ DC to 3GHz, 26 dB @ 3 GHz to 6 GHz
- Insertion Loss: ≤ 0.03 x √f (GHz) dB
- Power Handling: 200 W @ 2.2 GHz
- Center Contact Resistance: < 3 mΩ
- Outer Contact Resistance: < 2 mΩ
- Test Voltage: 1000 V rms
- Working Voltage: 480 V rms
- RF Leakage: -275 dB @ DC to 4 GHz
- Mating Cycles: Full detent ≥ 100, Limited detent > 100, Smooth bore up to 1000
- Temperature Range: -65°C to +165°C
- Max Soldering Temperature: +260°C for 10 sec
- Board Spacing (min): 12.6 mm
- Vibration, Shock, and Environmental endurance compliant with IEC standards
Buy the Buy Amphenol RF PSMP Part Number PSMPFSBA1042 Online
Order the Amphenol RF PSMP board-to-board RF connector today to experience high-frequency reliability up to 10 GHz and 200 W power handling. Designed for dense, high-performance applications, these connectors feature a compact three-piece design supporting a minimum board spacing of 12.6 mm. Suitable for base stations, radios, and amplifiers, they ensure excellent return loss, low insertion loss, and up to 100 mating cycles for long-term durability. Backed by robust environmental resistance, these connectors are ideal for demanding RF systems requiring maximum performance and reliability.
Get Amphenol RF PSMP PartNumber PSMPFSBA1042 today—built for high-frequency performance and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL RF PSMPFSBA1042?
You can click on the BUY or RFQ button to purchase PSMPFSBA1042 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part PSMPFSBA1042?
You can download the PSMPFSBA1042 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of PSMPFSBA1042?
AMPHENOL RF
