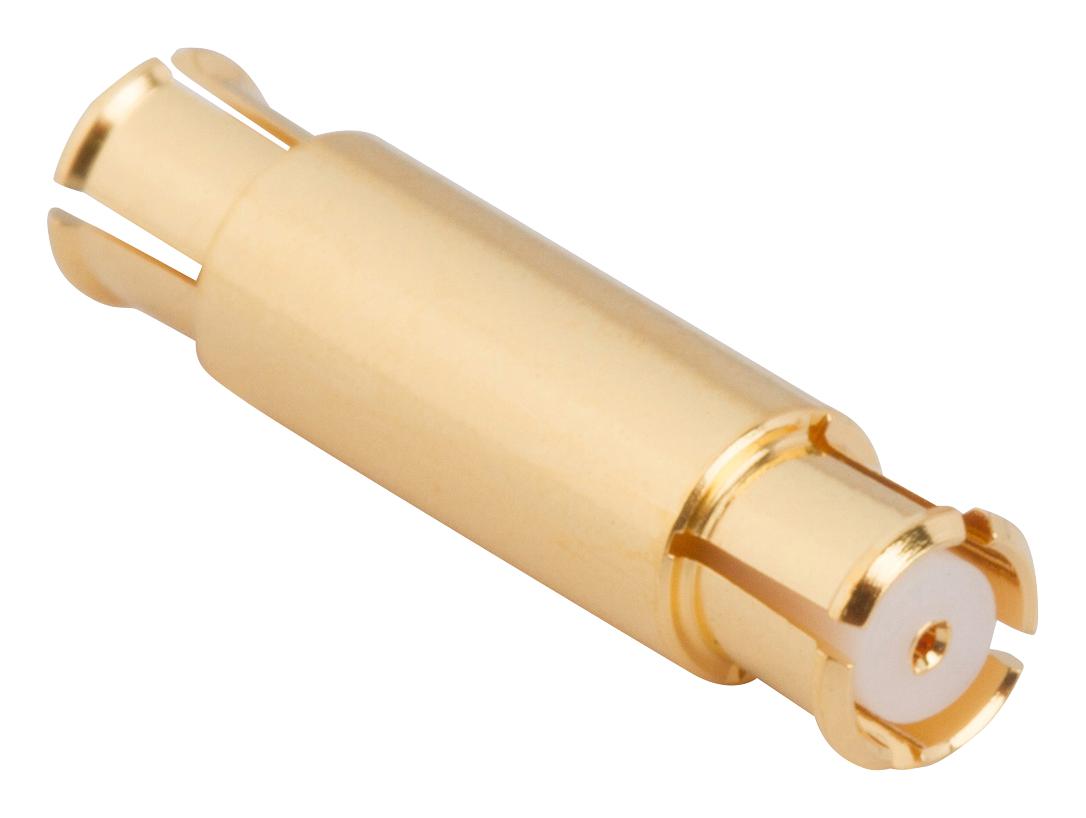

AMPHENOL RF SMPFS2A145 RF Connector
This component is designed for applications in 5G wireless communication systems, providing essential performance for high-speed connectivity. Made of BeCu with gold plating, it features PTFE insulators and an impedance of 50 ohms. Its temperature range spans from -65°C to 165°C, with durability tested for at least 100, 500, or 1000 cycles. Suitable for RF signal transmission, it offers a VSWR up to 1.50, a dielectric withstand voltage of 500 VRMS, and complies with RoHS standards. The series includes SMP plug connectors ideal for high-frequency wireless applications.
AMPHENOL RF SMPFS2A145 RF Connector Specifications:
- Material: BeCu with gold plating
- Insulators: PTFE, natural
- Impedance: 50 ohms
- Temperature Range: -65°C to 165°C
- Durability: Minimum 100, 500, or 1000 cycles
- Frequency Range: DC to 26.5 GHz
- VSWR (Return Loss): 1.20 MAX. (-20.80 dB) @ DC - 10 GHz, 1.40 MAX. (-15.60 dB) @ 10 - 18 GHz, 1.50 MAX. (-14.00 dB) @ 18 - 26.5 GHz
- Diel dielectric withstand voltage: 500 VRMS MIN.
- Full Detent Engagement: 15 lbs (67 N) MAX, 5 lbs (22 N) MIN
- Limited Detent: 10 lbs (45 N) MAX, 2 lbs (9 N) MIN
- Smooth Bore: 2 lbs (9 N) MAX, 0.5 lbs (2.2 N) MIN
- Packaging: Single pack, marked with 'AMPHENOL RF, SMP-FS2A-145, and date code'
- RoHS Compliant: Yes
Buy the Amphenol SMPFS2A145 – Reliable RF Connector for Industrial Applications
Purchase your Amphenol SMP-FS2A-145 RF connector online today to ensure your high-frequency wireless systems operate with optimal performance. This connector, made with BeCu and gold plating, offers excellent impedance and durability suitable for 5G and other advanced RF applications. Its wide temperature range, high dielectric withstand voltage, and compliance with RoHS standards make it ideal for industrial, communication, and broadcast projects requiring reliable high-speed data transmission. Secure this essential component today for seamless connectivity and long-lasting performance.
Order your Amphenol Series SMPFS2A145 today and give your RF systems the dependable quality they deserve for high-frequency industrial connectivity.
