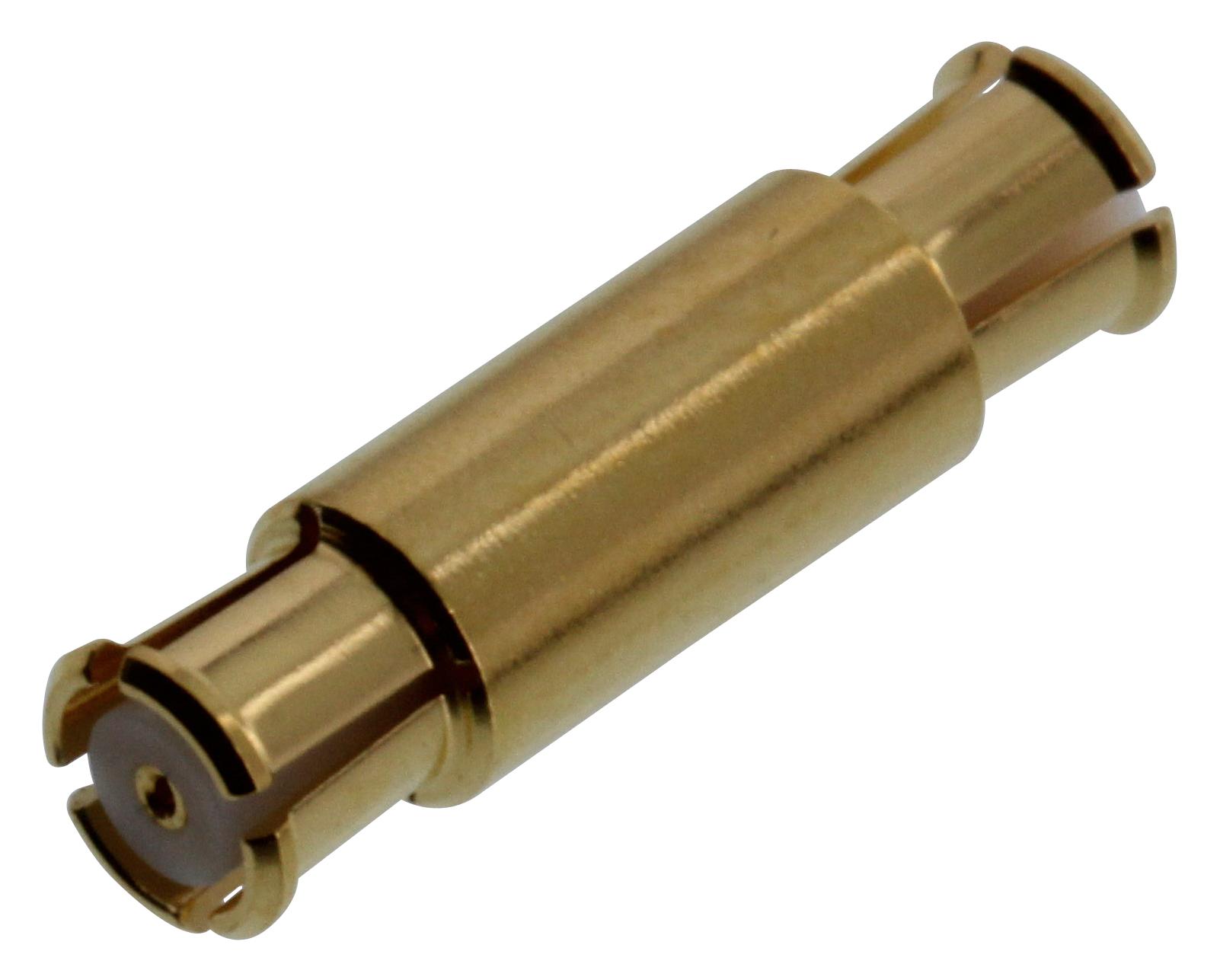

AMPHENOL RF SMPFSBA1316 RF connector
This component is designed for 5G wireless applications, supporting high-speed data transmission and connectivity in advanced telecommunications networks. The SMP-FSBA-1316 connector features beryllium copper bodies with gold plating for enhanced durability and electrical performance. It operates over a frequency range of DC to 26.5 GHz with an impedance of 50 ohms, and offers excellent VSWR values, ensuring minimal signal reflection. Its robust design withstands up to 500 VRMS dielectric voltage and temperatures from -65°C to +165°C. Suitable for high-frequency, high-reliability RF systems with durability up to 1000 mating cycles and RoHS compliance.
AMPHENOL RF SMPFSBA1316 RF connector Specifications:
- Body Material: Beryllium copper with gold plating
- Contact Material: Beryllium copper with gold plating
- Insulator Material: PTFE
- Impedance: 50 Ohm
- Frequency Range: DC to 26.5 GHz
- VSWR: 1.2 (20.8 dB) max. DC-10 GHz, 1.4 (15.6 dB) max. 10-18 GHz, 1.5 (14 dB) max. 18-26.5 GHz
- Dielectric Withstanding Voltage: 500 VRMS min.
- Durability: 100 cycles min. full detent, 500 cycles limited detent, 1000 cycles smooth bore
- Temperature Range: -65°C to +165°C
- Packaging: Single pack
- Marking: AMPHENOL RF, SMP-FSBA-1316, date code (YYWW)
- RoHS Compliant
- Application: High-frequency, RF microwave, 5G telecommunications, signal transmission connectors
Buy the Buy Amphenol RF Connector Part Number SMPFSBA1316 Online
Purchase the Amphenol RF connector SMP-FSBA-1316 online today for high-performance, durable, and reliable connectivity solutions tailored for 5G wireless applications. This connector features beryllium copper bodies with gold plating, providing excellent electrical conductivity and corrosion resistance. Operating across DC to 26.5 GHz, it offers VSWR values of 1.2 to 1.5, ensuring minimal signal reflection. With a dielectric voltage rating of 500 VRMS, it withstands intense RF signals and temperature ranges from -65°C to +165°C. Its high durability, with a minimum of 1000 mating cycles, makes it ideal for demanding telecom environments. RoHS compliant, it guarantees environmentally safe performance for modern wireless systems.
Order your Amphenol SeriesSMPFSBA1316 RF connector today and ensure reliable high-speed 5G signal transmission for your advanced telecom projects.
Frequently Asked Questions
Where can I buy AMPHENOL RF SMPFSBA1316?
You can click on the BUY or RFQ button to purchase SMPFSBA1316 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part SMPFSBA1316?
You can download the SMPFSBA1316 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of SMPFSBA1316?
AMPHENOL RF
