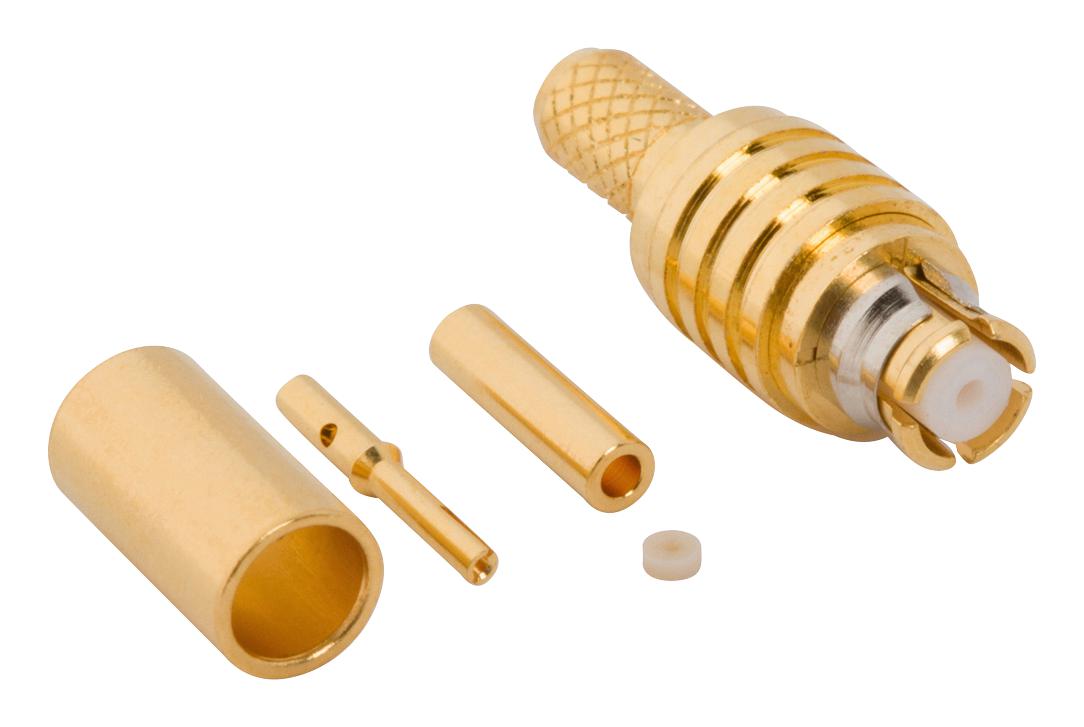

AMPHENOL RF SMPFSC19 RF Connector
This component is designed for applications in 5G wireless technology, supporting high-speed and reliable communication. It features a durable gold-plated BeCu body and contact, a brass housing with gold plating, PTFE insulators, and a copper ferrule with nickel plating. With an impedance of 50 ohms and a frequency range from DC to 6 GHz, it ensures minimal VSWR (1.28 max) and excellent return loss. Capable of withstanding voltages of 500 VRMS and temperatures from -65°C to +165°C, it offers durability for demanding RF environments.
AMPHENOL RF SMPFSC19 RF Connector Specifications:
- Impedance: 50 ohm
- Frequency Range: DC - 6 GHz
- VSWR: 1.28 MAX at DC - 6 GHz
- Return Loss: -18 dB MIN at DC - 6 GHz
- Voltage Rating: 500 VRMS
- Temperature Range: -65°C to +165°C
- Materials: BeCu gold-plated body and contacts, brass housing with gold plating, PTFE insulators, copper ferrule with nickel plating
- Durability: Minimum 100 cycles fully mated, 500 cycles limited detent, 1000 cycles with smooth bore
- Mating Forces: Full detent max 15 LBS, min 2 LBS; limited detent max 10 LBS, min 2 LBS
- Connector Style: SMP Plug series
- Package: Single pack, marked as 'AMPHENOL RF, SMP-FS-CI9 AND DATE CODE'
Buy the Amphenol SMPFSC19 – Reliable RF Connector for 5G Wireless Applications
Enhance your RF system with the high-quality SMPFSC19 connector designed for 5G applications. This connector features 50 ohm impedance, DC to 6 GHz frequency range, and gold-plated contacts for optimal performance. Its durable materials withstand temperatures from -65°C to +165°C and endure over 100 cycles of mating. Perfect for high-speed wireless communication, it is compact, reliable, and easy to install, ensuring seamless signal integrity in demanding environments. Buy online now for quick, secure delivery and project success.
Buy Amphenol SMPFSC19 now and experience unmatched reliability and high-performance RF connectivity for 5G wireless networks.
Frequently Asked Questions
Where can I buy AMPHENOL RF SMPFSC19?
You can click on the BUY or RFQ button to purchase SMPFSC19 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part SMPFSC19?
You can download the SMPFSC19 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of SMPFSC19?
AMPHENOL RF
