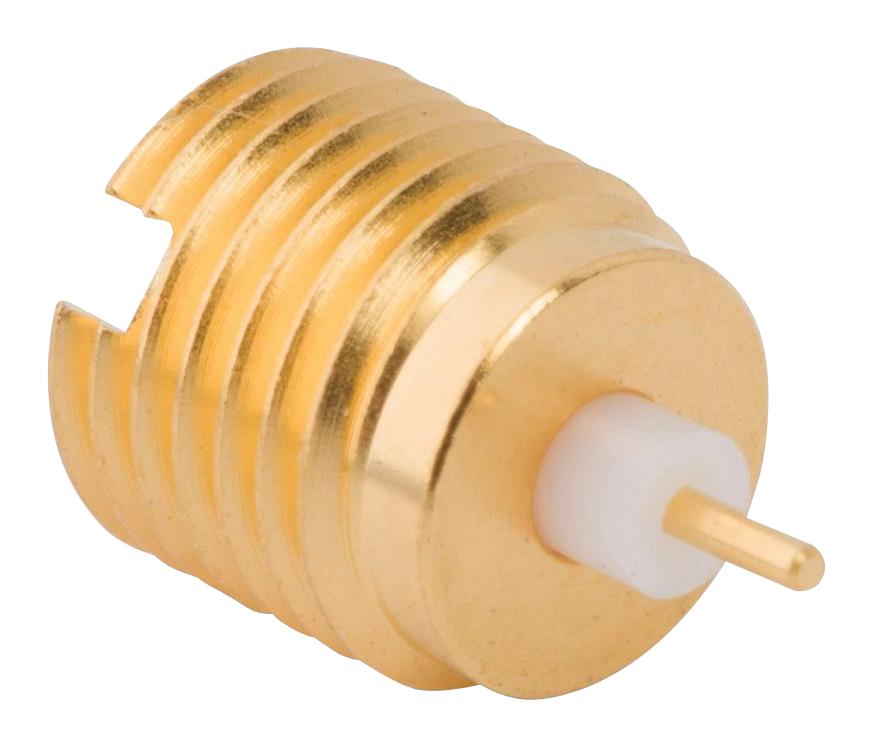

AMPHENOL RF SMPMSLDCSB RF Connector
This high-precision RF connector is designed for 5G wireless applications, offering excellent impedance performance and broad frequency range from DC to 26.5 GHz. Constructed with brass body and gold plating, it provides durability and corrosion resistance. The connector features PTFE insulators for dielectric stability, with a dielectric withstand voltage of 500 VRMS. Mechanical specifications include engagement force of up to 10 lbs, disengagement force minimum of 2 lbs, and a temperature range of -55°C to +165°C, suitable for advanced telecommunications infrastructure. Packaging includes single-pack options, marked with AMP, date code, and series identifiers for quality assurance.
AMPHENOL RF SMPMSLDCSB RF Connector Specifications:
- Body Material: Brass with gold plating
- Insulator Material: PTFE (Natural)
- Impedance: 50 Ohm
- Frequency Range: DC to 26.5 GHz
- Dielectric Withstanding Voltage: 500 VRMS minimum
- Return Loss: 26 dB @ DC-12 GHz, 20 dB @ 12-26.5 GHz
- Durability: 100 cycles minimum
- Temperature Range: -55°C to +165°C
- Engagement Force: Up to 10 lbs (45 N)
- Disengagement Force: Minimum 2 lbs (9 N)
- Inner Contact Retention Force: Minimum 1.5 lbs (7 N)
- Packaging: Single pack, marked with AMP, date code, and series
- Connector Series: SMP Jack
- Interface Standard: MIL-STD-348
- Connector Size: 10-48 UNS-2A
- Dimensions include: 4.1 mm threading, 0.47 inch contact length, 0.39 inch diameter, 0.19 inch insulator size
- Certifications: Not specified but compliant with industry standards
Buy the Amphenol SMPMSLDCSB – Reliable RF Connector for Industrial Applications
Purchase the Amphenol RF Connector today for high-frequency telecommunications projects. Designed for 5G and wireless networks, it offers excellent impedance stability, broad frequency range, and durable construction with brass and PTFE materials. Easy to install with engaging and disengagement force suitable for industrial use. Ideal for telecom infrastructure and advanced wireless systems, ensuring reliable signal transmission and long-term performance. Buy online now for quick delivery and expert support, making your deployment faster and more efficient with this industry-leading connector.
Get Amphenol SMPMSLDCSB today—built for precision and long-lasting durability in high-frequency telecommunications.
Frequently Asked Questions
Where can I buy AMPHENOL RF SMPMSLDCSB?
You can click on the BUY or RFQ button to purchase SMPMSLDCSB from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part SMPMSLDCSB?
You can download the SMPMSLDCSB datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of SMPMSLDCSB?
AMPHENOL RF
