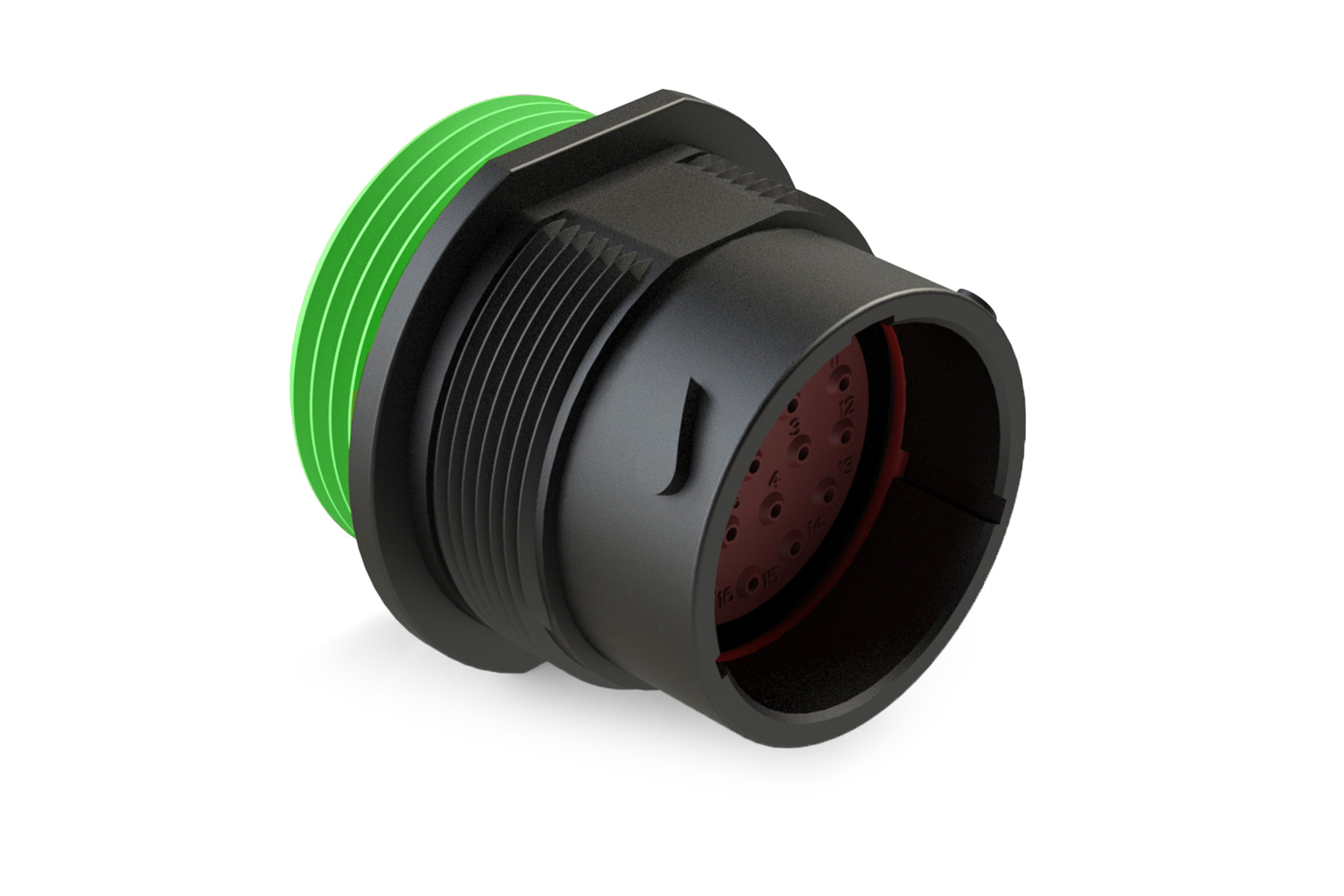

Amphenol Sine Systems AHDP041821PNWTA Circular Power Connector
The Amphenol Sine Systems AHDP04-18-21PN-WTA is a circular power connector engineered for demanding industrial applications. It incorporates a threaded adapter for secure mating and is constructed with a thermoplastic housing and silicone rubber seal. The connector is designed to withstand harsh conditions, as evidenced by its IP68 and IP69K ratings, ensuring protection against water ingress and high-pressure washdowns. It is RoHS compliant and offers reliable power transmission in various industrial settings.
Amphenol Sine Systems AHDP041821PNWTA Circular Power Connector Specifications:
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- Insulation Resistance: 1000 megohm min @ 25°C
- Moisture Resistance: IP68, IP69K
- Mating Cycle Durability: 100 cycles
- Material (Housing): Thermoplastic, Black
- Material (Seal): Silicone Rubber
- Thread Type: 1 1/2-18 UNEF
- Thread Type 2: 1 7/16-12 UN
- Contact Size: 20
- Wire Range: 1.5-0.35mm²
- AWG Range: 16-22 AWG
- Current Rating: 7.5 Amps
- Panel Mounting Hole Diameter: Ø33.8
- Panel Mounting Hole Diameter 2: Ø44.6
- Contact Types Available: Pin, Socket
- Contact Plating Options: Gold-plated, Nickel-plated, Tin-plated
