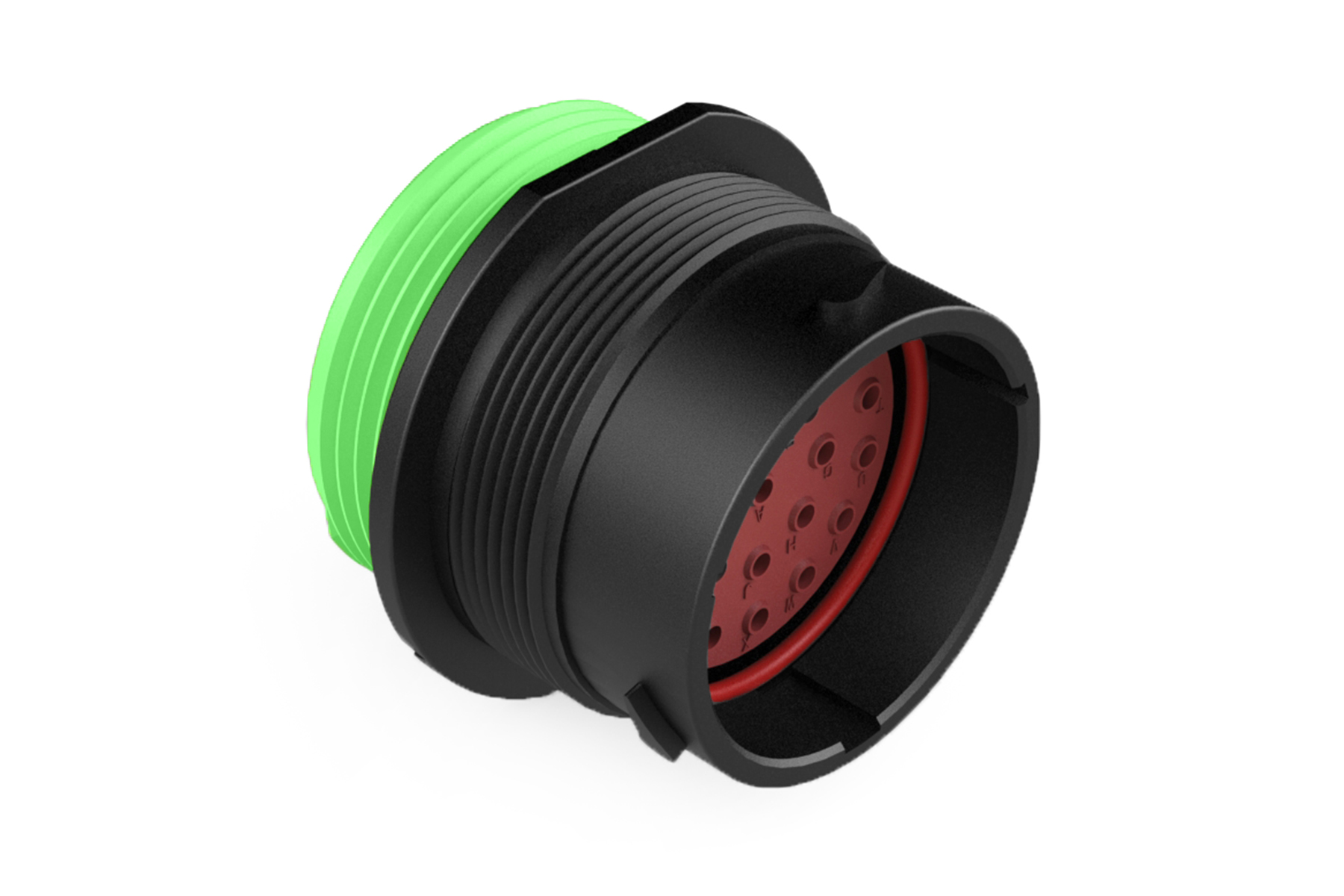

Amphenol Sine Systems AHDP042423PNWTA 24-23 Position Receptacle
The Amphenol Sine Systems AHDP04-24-23PN-WTA is a circular connector specifically engineered for applications demanding high reliability and environmental protection. Its threaded adapter design ensures a secure and robust connection, while the IP67 and IP69K ratings guarantee resistance to dust and water ingress. The connector supports 24-23 positions and is designed to withstand operating temperatures from -55°C to +125°C, making it suitable for a wide range of industrial and automotive applications. It is compatible with mating parts like AHDP06-24-23P and utilizes gold-plated or nickel-plated contacts for optimal signal transmission and corrosion resistance.
Amphenol Sine Systems AHDP042423PNWTA 24-23 Position Receptacle Specifications:
- operating_temperature: -55℃ to +125℃
- dielectric_withstanding_voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- insulation_resistance: 1000 megohm min @ 25℃
- moisture_resistance: IP67&IP69K (mated condition)
- mating_cycle_durability: 100 cycles
- material_housing: Thermoplastic; Black
- material_seal: Silicone Rubber
- contact_size: 16
- wire_range: 14-20 AWG
- typical_current_rating: 13 Amps
- recommended_panel_mounting_hole: 2
- rohs_compliant: Yes
- contact_insulation_o_d_max: 3.40 mm (.134 in)
- contact_insulation_o_d_min: 2.54 mm (.100in)
Buy the AHDP04-24-23PN-WTA Amphenol Sine Systems 24-23 Position Receptacle | myMectronic
Purchase the Amphenol Sine Systems AHDP04-24-23PN-WTA connector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHDP042423PNWTA?
You can click on the BUY or RFQ button to purchase AHDP042423PNWTA from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHDP042423PNWTA?
You can download the AHDP042423PNWTA datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHDP042423PNWTA?
Amphenol Sine Systems
