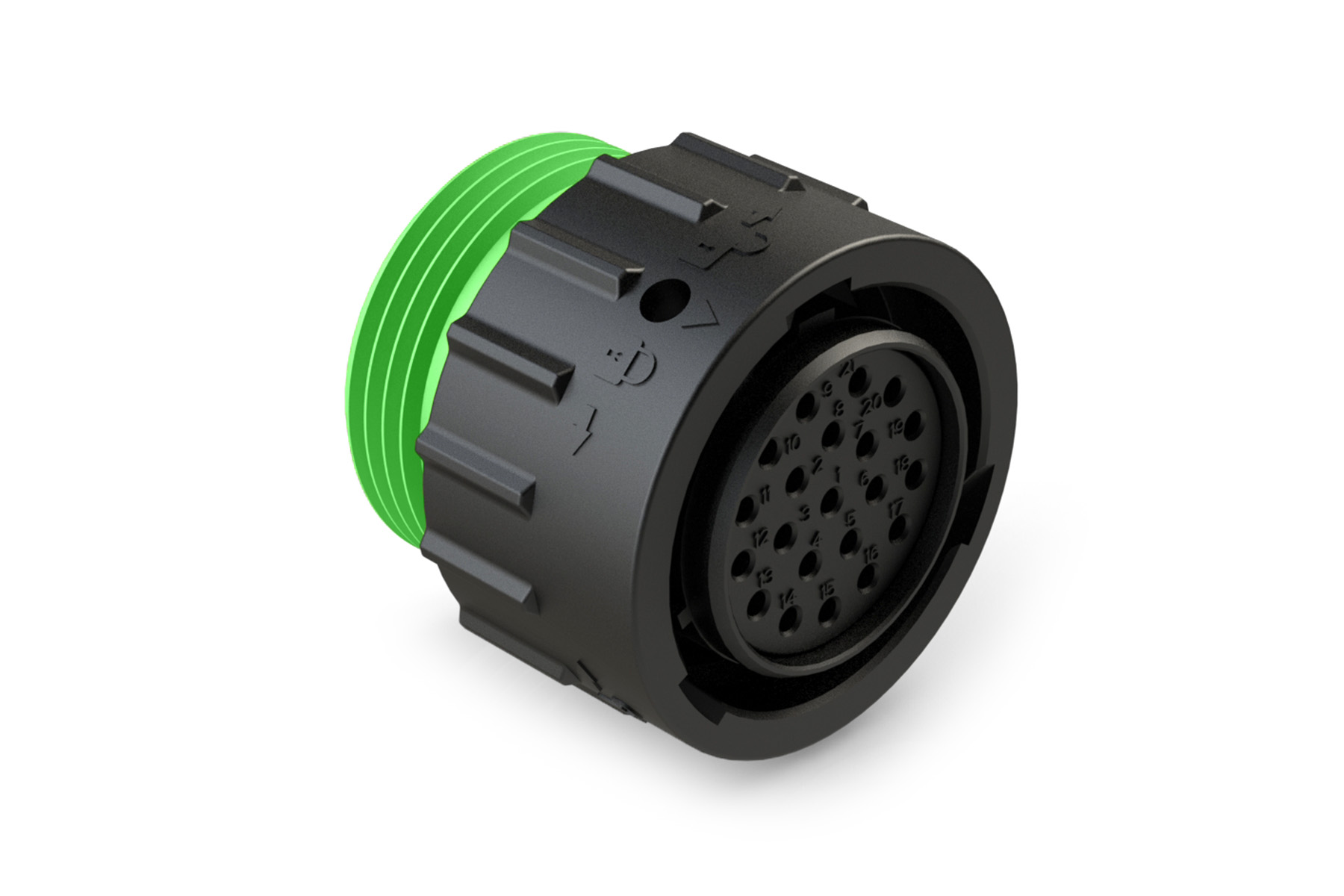

Amphenol Sine Systems AHDP061821SNWTA Circular Connector
The Amphenol Sine Systems AHDP06-18-21SN-WTA is a circular connector designed for demanding industrial environments. Constructed with a durable thermoplastic housing and a silicone rubber seal, this connector provides a secure and reliable connection. It meets RoHS compliance standards and is rated for operation between -55°C and +125°C, making it suitable for a wide range of applications including automotive, industrial automation, and power transmission. The connector's robust design ensures long-term performance and resistance to environmental factors.
Amphenol Sine Systems AHDP061821SNWTA Circular Connector Specifications:
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- Insulation Resistance: 1000 megohm min @ 25°C
- Moisture Resistance: IP68 (mated condition), IP69K (mated condition)
- Mating Cycle Durability: 100 cycles
- Material (Housing): Thermoplastic, Black
- Material (Seal): Silicone Rubber
- Thread: 1 7/16-12 UN Thread
- Contact Size: 20
- Typical Wire Range: 1.5-0.35mm²
- Current Rating: 7.5 Amps
- RoHS Compliant: Yes
- Contact Min Insul O.D.: 1.02 mm
- Contact Max Insul O.D.: 2.41 mm
- AWG Range: 16-22 AWG
Buy the AHDP06-18-21SN-WTA Amphenol Sine Systems Circular Connector | myMectronic
Purchase the Amphenol Sine Systems AHDP06-18-21SN-WTA connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHDP061821SNWTA?
You can click on the BUY or RFQ button to purchase AHDP061821SNWTA from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHDP061821SNWTA?
You can download the AHDP061821SNWTA datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHDP061821SNWTA?
Amphenol Sine Systems
