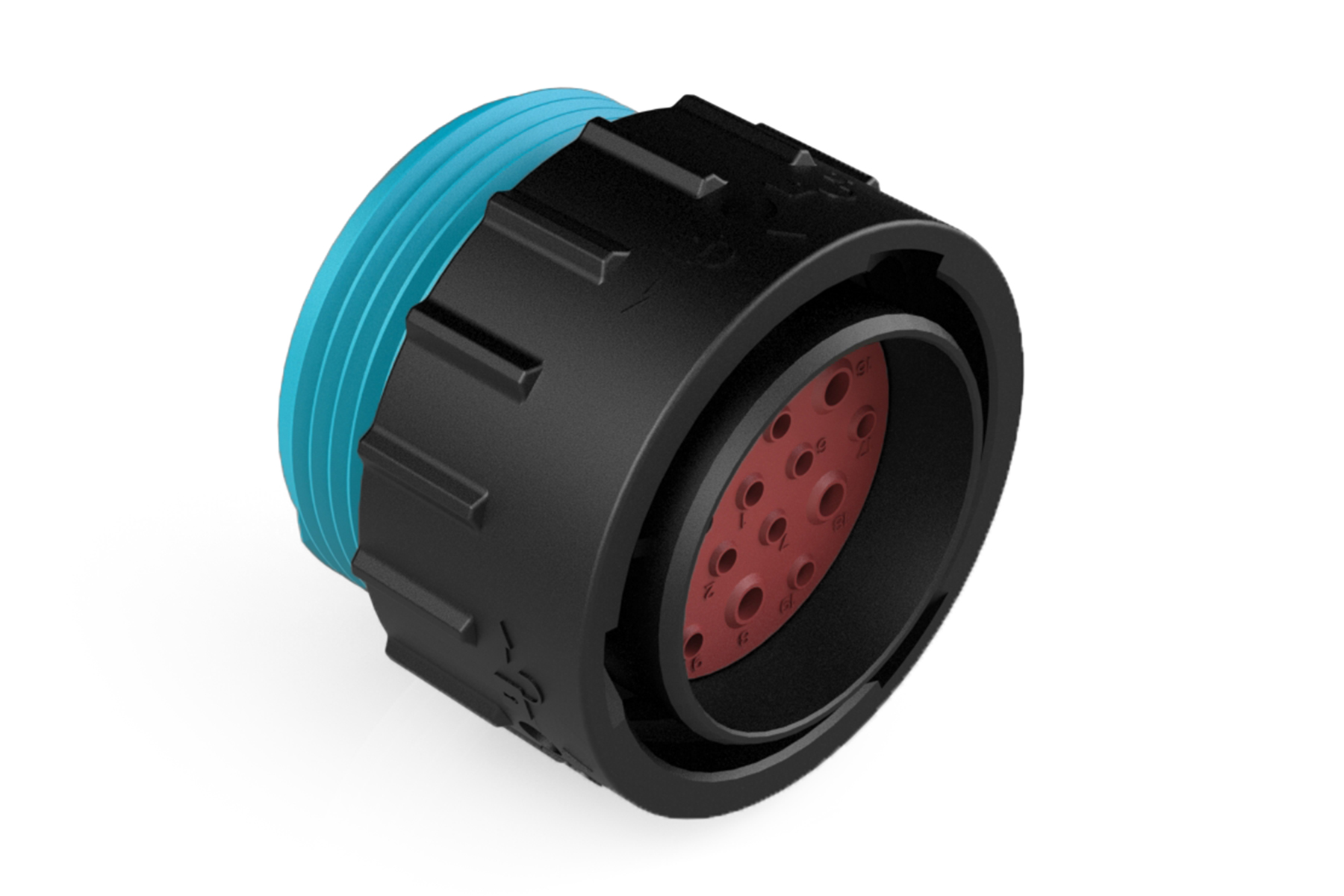

Amphenol Sine Systems AHDP062419SRWTA 24-19 Position Receptacle
The Amphenol Sine Systems AHDP06-24-19SR-WTA is a robust circular connector designed for demanding industrial environments. This connector offers a 24-19 position configuration with pin contacts, ensuring reliable connections. The standard diameter seal provides excellent environmental protection, meeting IP67 and IP69K ratings for resistance to dust and water ingress. Constructed with a thermoplastic housing and silicone rubber seal, the AHDP06-24-19SR-WTA is designed for long-term performance in harsh conditions. It is RoHS compliant and suitable for a wide range of applications including industrial automation, heavy machinery, and outdoor equipment.
Amphenol Sine Systems AHDP062419SRWTA 24-19 Position Receptacle Specifications:
- Operating Temperature: -55℃ to +125℃
- Dielectric Withstanding Voltage: Less than 2 milliamps @ 1500 Volts AC
- Insulation Resistance: 1000 Megohm min @ 25℃
- Moisture Resistance: IP67 & IP69K (mated condition)
- Mating Cycle Durability: 100 cycles
- Material (Housing): Thermoplastic, Black
- Material (Seal): Silicone Rubber
- RoHS Compliant: Yes
- Contact Size: 12, 16
- Wire Range (12 Contact): 10-14 AWG
- Wire Range (16 Contact): 14-20 AWG
- Current Rating (12 Contact): 25 Amps
- Current Rating (16 Contact): 13 Amps
- Mating Part: AHDP04-24-19PN-WTA
