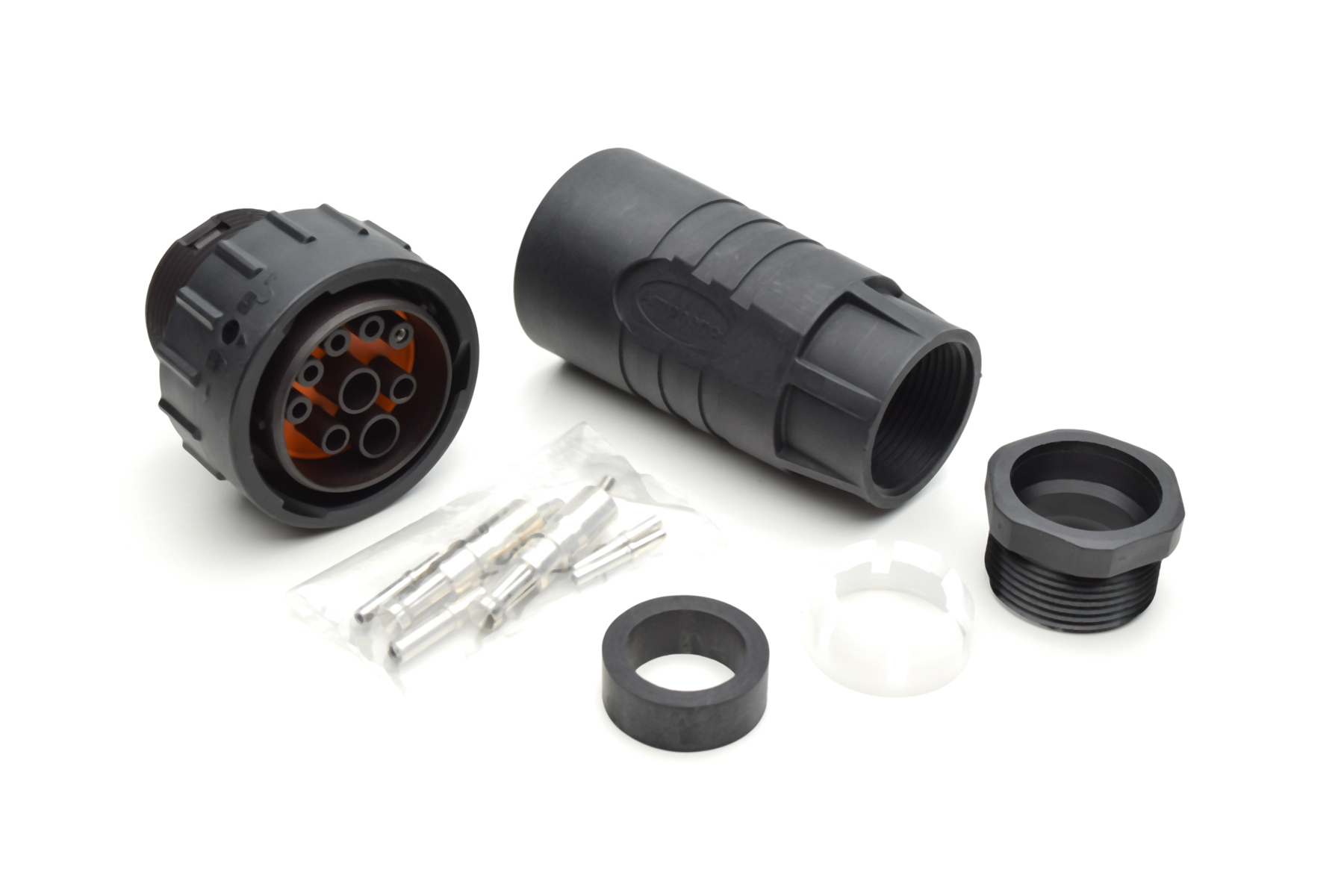

Amphenol Sine Systems AHDP062491SBS1K06X Circular Connector
The Amphenol AHDP06-24-91S-BS1-K06X is a circular connector designed for demanding environments. It offers a robust construction with a polyamide black housing (UL94V-0) and provides IP67/IP6K9K protection when mated. The connector supports a rated voltage of 24VDC and can handle currents up to 75A depending on the contact size. It is ideal for applications in automotive, industrial equipment, and power transmission where reliable and sealed connections are essential. Contact sizes 8, 12, and 16 are supported, requiring separate ordering of crimping tools and contacts.
Amphenol Sine Systems AHDP062491SBS1K06X Circular Connector Specifications:
- Number of Contacts: 2+2+4+1
- Rated Voltage: 24VDC
- Current Carrying Capacity (6mm²):: 2x45A
- Current Carrying Capacity (10mm²):: 2x60A
- Current Carrying Capacity (16mm²):: 2x75A
- Current Carrying Capacity (2.5mm²):: 2x15A
- Current Carrying Capacity (0.5mm²):: 4x5A
- Max. Current Carrying Capacity (6mm²):: 2x50A
- Max. Current Carrying Capacity (10mm²):: 2x70A
- Max. Current Carrying Capacity (16mm²):: 2x80A
- Pollution Degree: 3
- Temperature Range: -40°C to +125°C
- Protection Class: IP67 / IP6K9K
- Material (Gaskets): NBR, Silicone
- Material (Housing): Polyamide black, UL94V-0
- Material (Contact Carrier): Polyamide black, UL94V-0
- Material (Contacts): Copper alloy, nickel plated
- Cable Diameter: 14-18mm
- Locking Type: B ayonet
- Connector Standard: ISO 11783-2
- Contact Crimping: Requires separate ordering
- Mechanical Operations: >100 mating cycles
