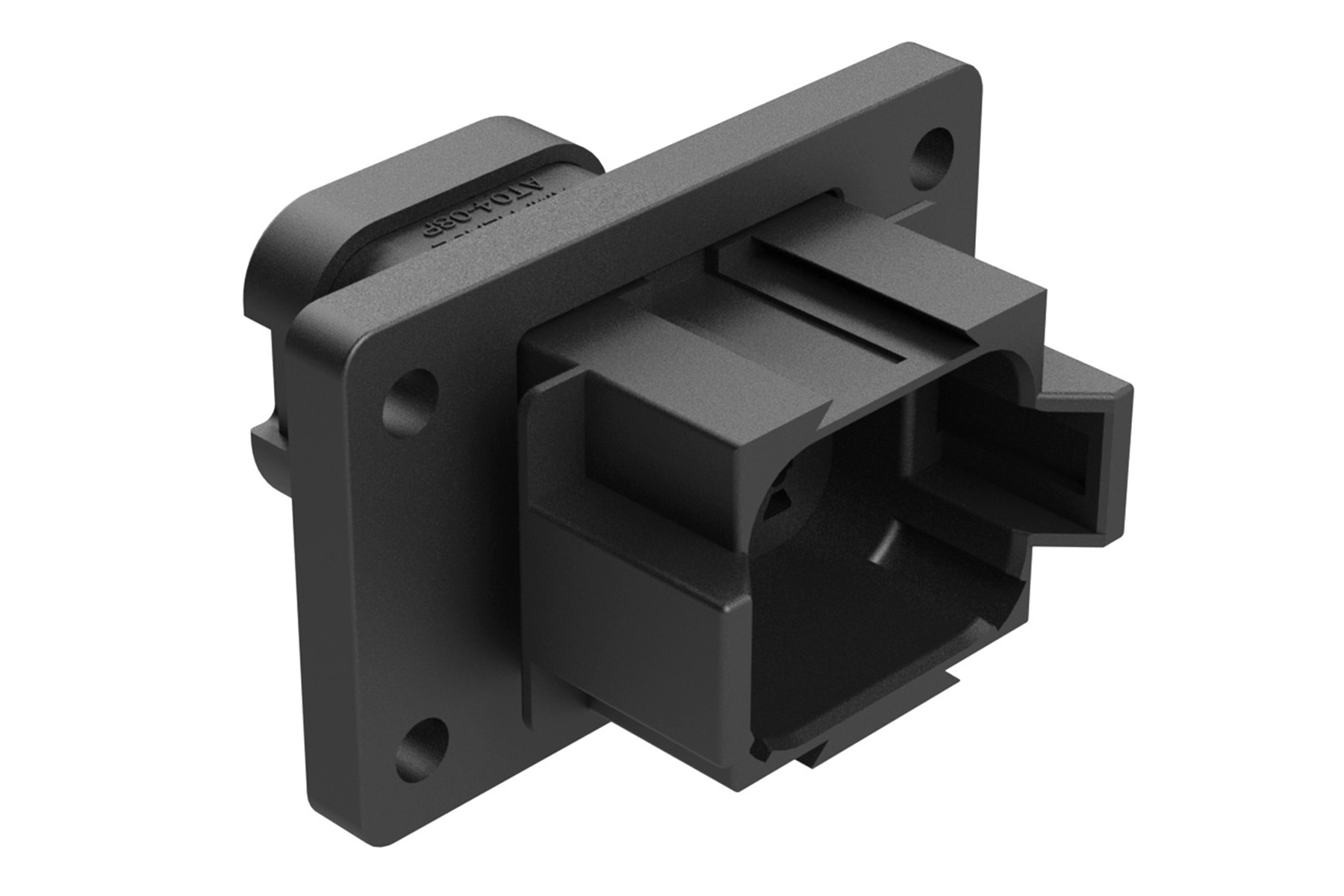

Amphenol Sine Systems AT0408PALE11 8P Flange Mount Receptacle
The Amphenol Sine Systems AT04-08PA-LE11 is a robust circular connector ideal for demanding industrial environments. This 8-position receptacle features a durable thermoplastic housing and silicone rubber seal, providing excellent protection against moisture and contaminants. It's designed for flange mount applications, ensuring secure and stable connections. With a current rating of 13 amps and an operating temperature range of -55°C to +125°C, this connector is suitable for a wide range of applications including automotive, industrial automation, and power distribution systems. The AT04-08PA-LE11 is RoHS compliant, demonstrating Amphenol's commitment to environmental responsibility.
Amphenol Sine Systems AT0408PALE11 8P Flange Mount Receptacle Specifications:
- current_rating: 13 Amps
- operating_temperature: -55°C to +125°C
- dielectric_withstanding_voltage: Less than 2 Milliamps @ 1500 Volts AC
- insulation_resistance: 1000 Megohms Min @ 25°C
- moisture_resistance: IP67 (mated condition)
- mating_cycle_durability: 100 Cycles
- material_housing: Thermoplastic
- material_seal: Silicone Rubber
- modification: Flange, End Cap
- rohs_compliant: Yes
- mating_part: AT06-08SA* (* = Modifications and Colors)
