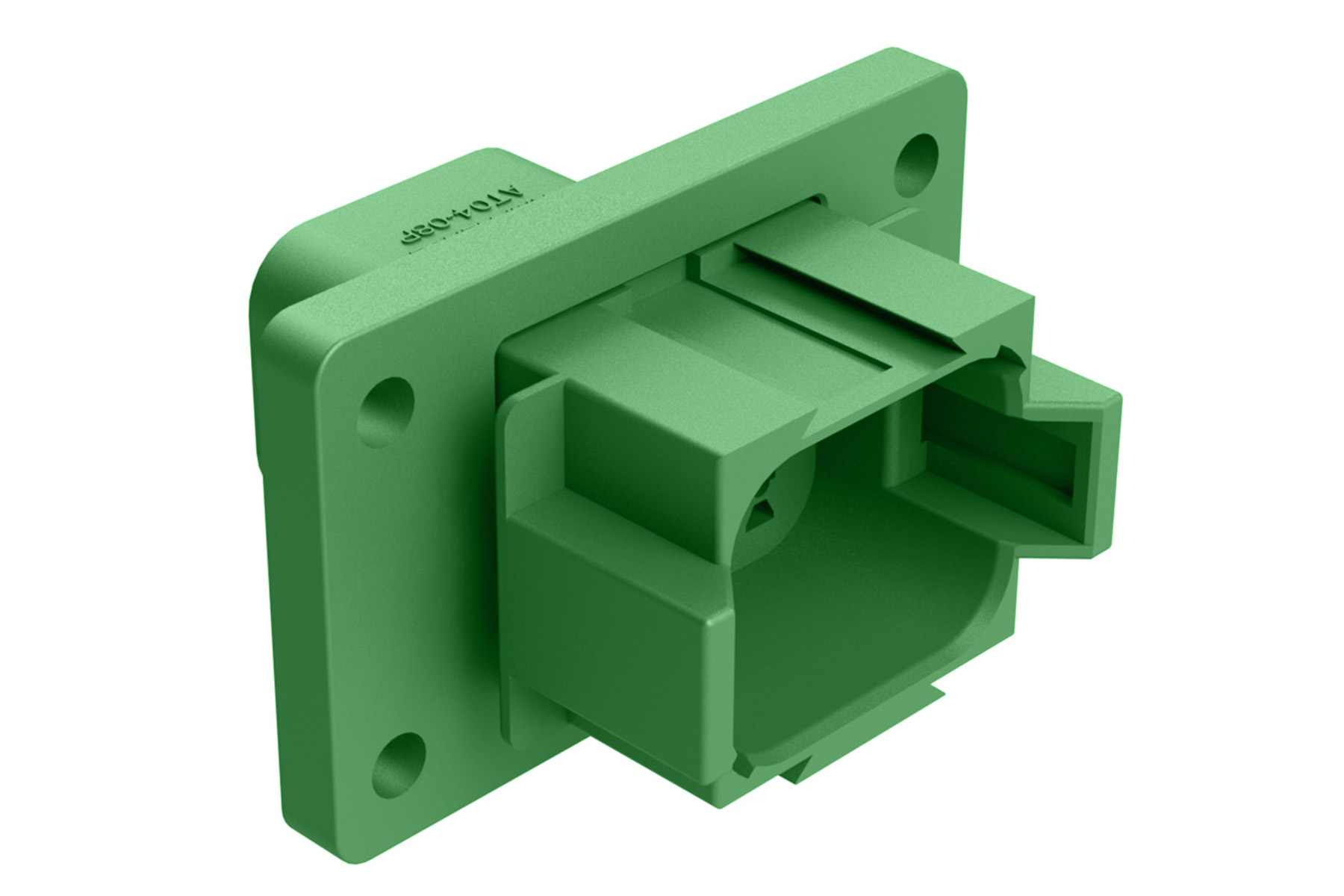

Amphenol Sine Systems AT0408PCL012 Flange Mount Connector
The Amphenol Sine Systems AT04-08PC-L012 is a robust circular connector ideal for demanding industrial environments. Constructed with a thermoplastic housing and silicone rubber seal, this connector provides excellent protection against environmental factors. It boasts a 13-amp current rating and an operating temperature range of -55°C to +125°C, ensuring reliable performance in harsh conditions. The connector is also IP67 rated, providing superior moisture resistance when mated. It is RoHS compliant, meeting environmental standards. This connector is designed for flange mount applications and is compatible with AT06-08SX* plug series.
Amphenol Sine Systems AT0408PCL012 Flange Mount Connector Specifications:
- current_rating: 13 Amps
- operating_temperature: -55°C to +125°C
- dielectric_withstanding_voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- insulation_resistance: 1000 Megohms min @ 25°C
- moisture_resistance: IP67 (mated condition)
- mating_cycle_durability: 100 cycles
- material_housing: Thermoplastic
- material_seal: Silicone Rubber
- rohs_status: Compliant
- mating_part: AT06-08SX* plug
Buy the AT04-08PC-L012 Amphenol Sine Systems Flange Mount Connector | myMectronic
Purchase the Amphenol Sine Systems AT04-08PC-L012 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AT0408PCL012?
You can click on the BUY or RFQ button to purchase AT0408PCL012 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AT0408PCL012?
You can download the AT0408PCL012 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AT0408PCL012?
Amphenol Sine Systems
