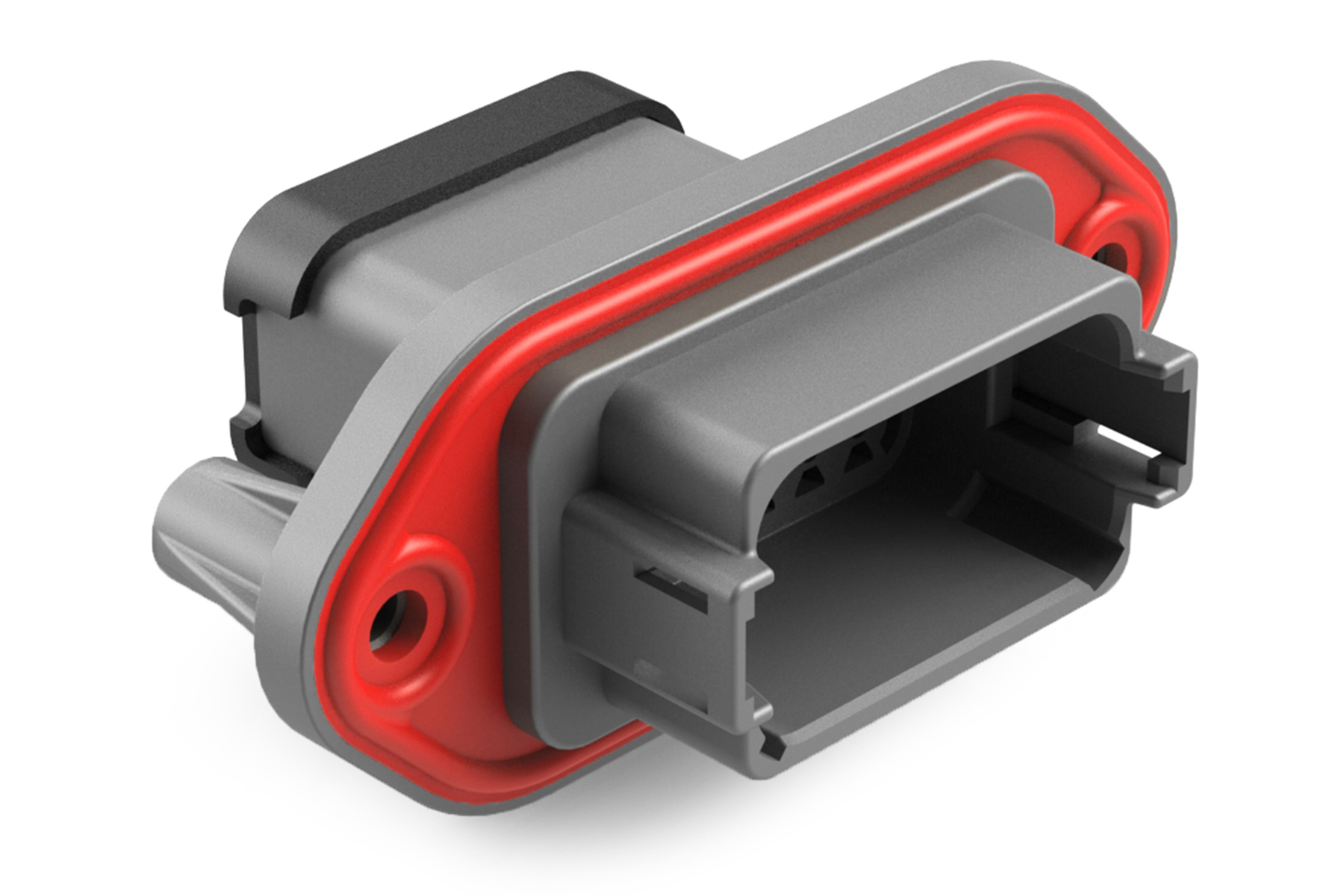

Amphenol Sine Systems AT0412PAPM13 12 Pin Receptacle with Flange
The Amphenol Sine Systems AT04-12PA-PM13 is a 12-pin circular connector designed for demanding industrial applications. This connector offers a robust housing, strain relief cap, and various key configurations (A, B, C, and D) to suit different system requirements. It is available with standard or reduced diameter seals and supports a wide range of wire gauges. The AT04-12PA-PM13 is RoHS compliant and designed for reliable performance in harsh environments. It is commonly used in automotive, industrial automation, and power distribution systems.
Amphenol Sine Systems AT0412PAPM13 12 Pin Receptacle with Flange Specifications:
- Material (Housing): Thermoplastic, Color: Per Key Option
- Material (End Cap): Thermoplastic, Color: Black
- Material (Strain Relief Cap): Thermoplastic, Color: Black
- Material (Seals): Silicone Rubber, Color: Red
- Current Rating: 13 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 millamps
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (Mated Condition)
- Mating Cycle Durability: 100 Cycles
- RoHS Compliant: Yes
- Contact Size: 16
- Insulation O.D. (Min): 1.35 mm (0.053 in)
- Insulation O.D. (Max): 3.05 mm (0.120 in)
- Wire Range (Typical): 14 - 20 AWG
Buy the AT04-12PA-PM13 Amphenol Sine Systems 12 Pin Receptacle with Flange | myMectronic
Purchase the Amphenol Sine Systems AT04-12PA-PM13 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AT0412PAPM13?
You can click on the BUY or RFQ button to purchase AT0412PAPM13 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AT0412PAPM13?
You can download the AT0412PAPM13 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AT0412PAPM13?
Amphenol Sine Systems
