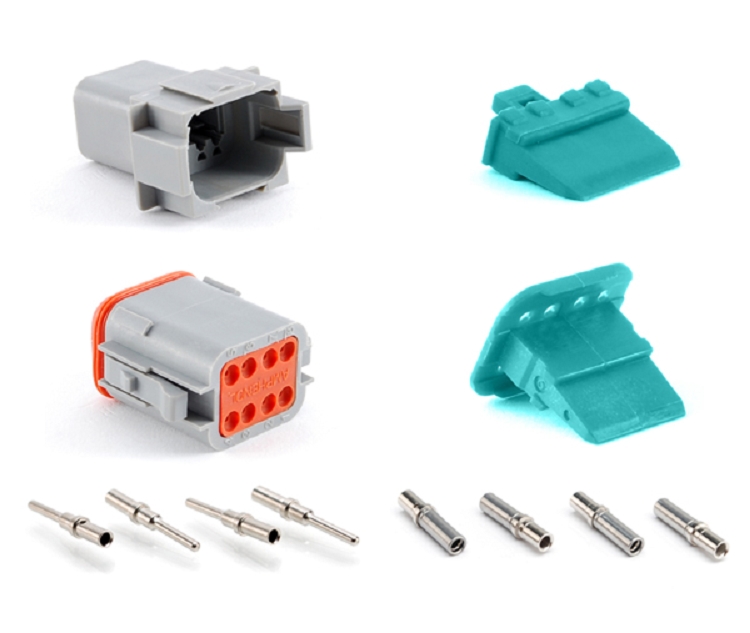

Amphenol Sine Systems AT8PSCKIT 8 Position Plug Receptacle Kit
The Amphenol Sine Systems AT8PS-CKIT is a comprehensive kit designed to provide a robust and reliable 8-position circular connector solution. It includes a plug, a receptacle, and necessary contacts and wedgelocks. The housing is constructed from durable thermoplastic, while the seals are made of silicone rubber, ensuring excellent environmental protection. The kit is designed for applications requiring secure and dependable connections, commonly found in industrial equipment, automotive systems, and power distribution networks. Its RoHS compliance ensures adherence to environmental standards, making it a sustainable choice for modern applications. The kit simplifies assembly and provides a complete solution for various connection needs.
Amphenol Sine Systems AT8PSCKIT 8 Position Plug Receptacle Kit Specifications:
- Material: Housing: Thermoplastic (Grey), Wedgelock: Thermoplastic (Green), Seals: Silicone Rubber, Contacts: Copper Alloy (Nickel Plated)
- RoHS Compliant: Yes
- Current Rating: 13 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamp current leakage @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Contact Millivolt Drop: 60 Millivolt Drop @ 13 Amp Test Current
- Moisture Resistance: IP67 (Mated Condition)
- Connector Mating Cycle Durability: 100 Cycles
- Wire Range: 16 - 20 AWG (.088 in - .145 in)
- Contact Size: 2.24 mm
- Max Insulated O.D: 3.68 mm
- Hand Crimper: CA-5D12
- Kit Contents: ['AT60-202-16141 Contact, Pin, Solid, Size 16, 16-20 AWG', 'AW8P P-Wedgelock, 8 Position, AT Series', 'AT04-08PA Receptacle, 8 Pin, AT Series', 'AT62-201-16141 Contact, Socket, Solid, Size 16, 16 - 20 AWG', 'AW8S S-Wedgelock, 8 Position, AT Series', 'AT06-08SA Plug, 8 Socket, AT Series']
