Amphenol Sine Systems ATM0412PAKT01 12 Position ATM Connector
The Amphenol Sine Systems ATM04-12PA-KT01 is a 12-position circular connector designed for demanding industrial applications. Its thermoplastic housing provides durability, while the silicone rubber seals ensure a tight, moisture-resistant seal. The nickel-plated copper contacts offer excellent conductivity and corrosion resistance. This connector is ideal for automotive, industrial automation, and power transmission systems where reliable connectivity is essential. It is IP67 rated, demonstrating its ability to withstand dust and water ingress, and is fully RoHS compliant, meeting environmental standards. The kit includes necessary components for assembly, simplifying the integration process.
Amphenol Sine Systems ATM0412PAKT01 12 Position ATM Connector Specifications:
- Current Rating: 7.5 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamp current leakage @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Contact Millivolt Drop: 60 Millivolt Drop @ 7.5 Amp Test Current
- Moisture Resistance: IP67 (mated condition)
- Connector Mating Cycle Durability: 100 Cycles
- Material Housing: Thermoplastic, Grey
- Material Wedgelock: Thermoplastic, Orange
- Material Seals: Silicone Rubber
- Material Contacts: Copper Alloy, Nickel Plated
- Wire Range: 20 - 22 AWG
- Contact Min Insulation O.D.: 1.35 mm
- Contact Max Insulation O.D.: 3.05 mm

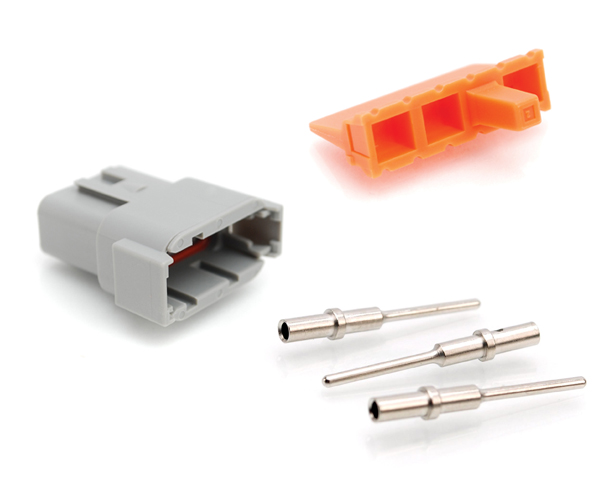

- Kit Contents: Receptacle, Contacts, and Wedgelock
