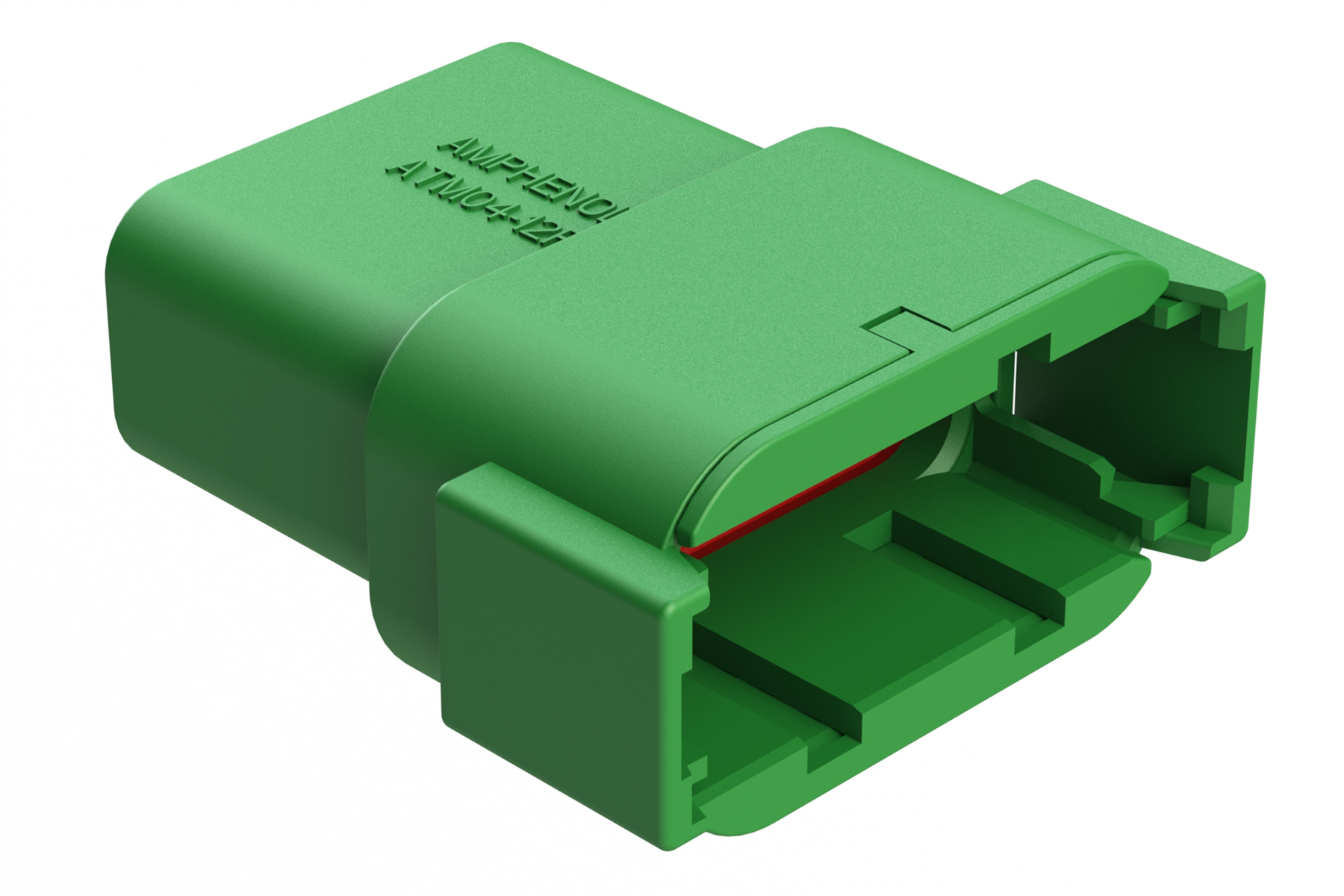

Amphenol Sine Systems ATM0412PC Keyed 12 Pin Receptacle
The Amphenol Sine Systems ATM04-12PC is a 12-pin keyed receptacle connector within the ATM Series™, engineered for demanding industrial environments. Its keyed design ensures proper alignment and prevents mismating, while the thermoplastic housing and silicone rubber seal provide excellent environmental protection (IP67 rated). The connector supports a current rating of 7.5 amps and operates effectively within a temperature range of -55°C to +125°C. It is commonly used in automotive, industrial automation, and power distribution systems where reliable and secure connections are critical. Contact sizes 20 options are available for various wire gauges, and tooling is available for both machined and stamped contacts.
Amphenol Sine Systems ATM0412PC Keyed 12 Pin Receptacle Specifications:
- Current Rating: 7.5 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (Mated Condition)
- Mating Cycle Durability: 100 Cycles
- Contact Wire Range: 16 - 22 AWG
- Housing Material: Thermoplastic
- Seal Material: Silicone Rubber
- Key Arrangement: See Sheet 2
- RoHS Compliant: Yes
- Dimensions: All dimensions are in metric (mm)
- Tolerances: 1 PL DEC ±0.30, Fractions ±1/64, 2 PL DEC ±0.15, Angles ±1°
Buy the ATM04-12PC Amphenol Sine Systems Keyed 12 Pin Receptacle | myMectronic
Purchase the Amphenol Sine Systems ATM04-12PC connector securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems ATM0412PC?
You can click on the BUY or RFQ button to purchase ATM0412PC from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part ATM0412PC?
You can download the ATM0412PC datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of ATM0412PC?
Amphenol Sine Systems
