Amphenol Sine Systems ATM6PSCKIT 6 Position Plug Receptacle Kit

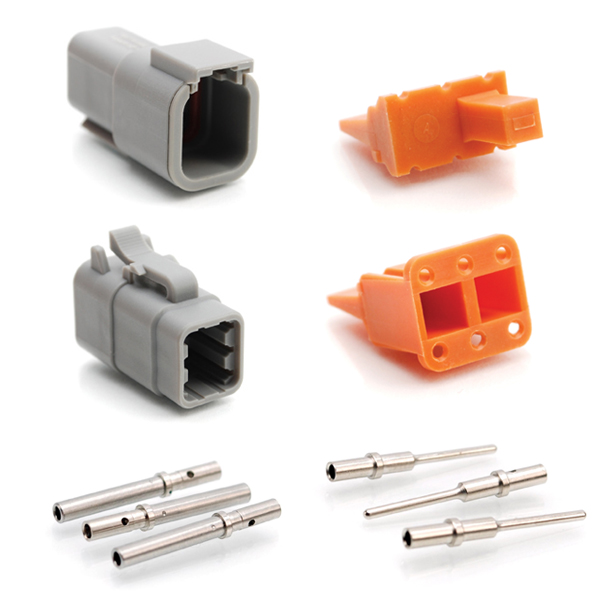

The Amphenol Sine Systems ATM6PS-CKIT is a comprehensive kit providing a 6-position plug and receptacle connector solution. Designed for robust performance, this connector features a thermoplastic housing, silicone rubber seals, and copper alloy contacts with nickel plating. It's rated for a current of 7.5 amps and operates effectively within a temperature range of -55°C to +125°C. The IP67 moisture resistance rating ensures reliable operation in harsh conditions. This kit is commonly used in automotive, industrial equipment, power transmission systems, and other applications requiring secure and environmentally protected connections. It includes contacts, a plug, a receptacle, and wedgelocks for a complete assembly.
Amphenol Sine Systems ATM6PSCKIT 6 Position Plug Receptacle Kit Specifications:
- Current Rating: 7.5 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps Current Leakage @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Contact Millivolt Drop: 60 Millivolt Drop @ 7.5 Amp Test Current
- Moisture Resistance: IP67 (Mated Condition)
- Connector Mating Cycle Durability: 100 Cycles
- Material - Housing: Thermoplastic, Grey
- Material - Wedgelock: Thermoplastic, Orange
- Material - Seals: Silicone Rubber
- Material - Contacts: Copper Alloy, Nickel Plated
- Wire Range: 20 - 22 AWG
- Contact Size: Size 20
- Contact Min Insulated Diameter: 1.35 mm
- Contact Max Insulated Diameter: 3.05 mm
