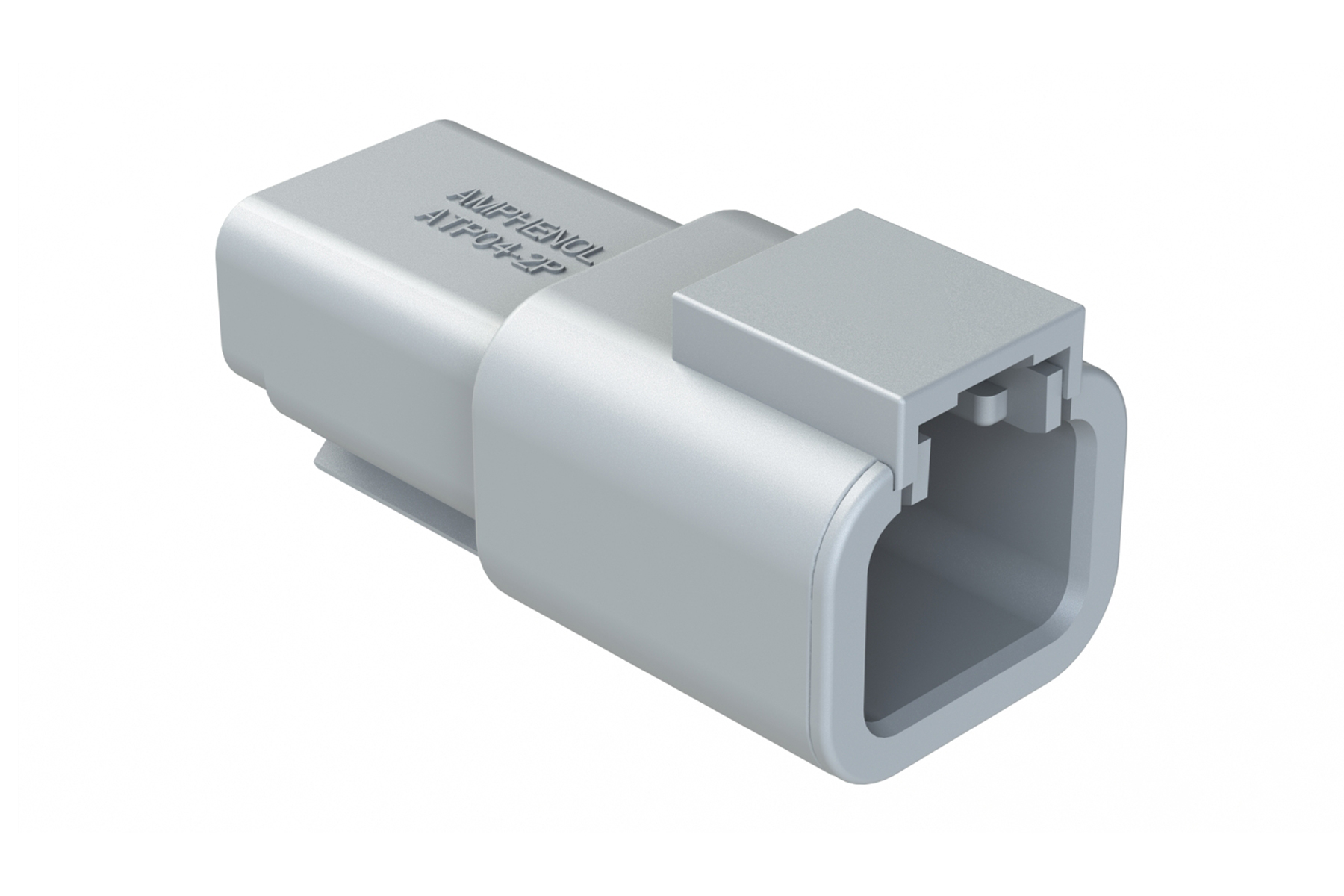

Amphenol Sine Systems ATP042P 2 Pin Circular Connector
The Amphenol ATP04-2P is a 2-pin circular connector engineered for demanding industrial applications. Constructed with a thermoplastic housing and a silicone rubber seal, this connector provides excellent protection against environmental factors. It is designed to withstand temperatures from -55°C to +125°C and offers a dielectric withstanding voltage of less than 2 milliamps at 1500 volts AC. The ATP04-2P is RoHS compliant and mates with the ATP06-2S* plug, offering versatility in system design. Its robust construction and reliable performance make it ideal for applications requiring secure and long-lasting connections.
Amphenol Sine Systems ATP042P 2 Pin Circular Connector Specifications:
- Material (Housing): Thermoplastic
- Material (Seal): Silicone Rubber
- Current Rating: 25 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (mated condition)
- Mating Cycle Durability: 100 Cycles
- RoHS Compliant: Yes
- Mating Part: ATP06-2S* Plug
- Contact Size: 12
- Wire Range: 10-14 AWG (.134 in) to (.195 in)
Buy the ATP04-2P Amphenol Sine Systems 2 Pin Circular Connector | myMectronic
Purchase the Amphenol ATP04-2P connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems ATP042P?
You can click on the BUY or RFQ button to purchase ATP042P from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part ATP042P?
You can download the ATP042P datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of ATP042P?
Amphenol Sine Systems
