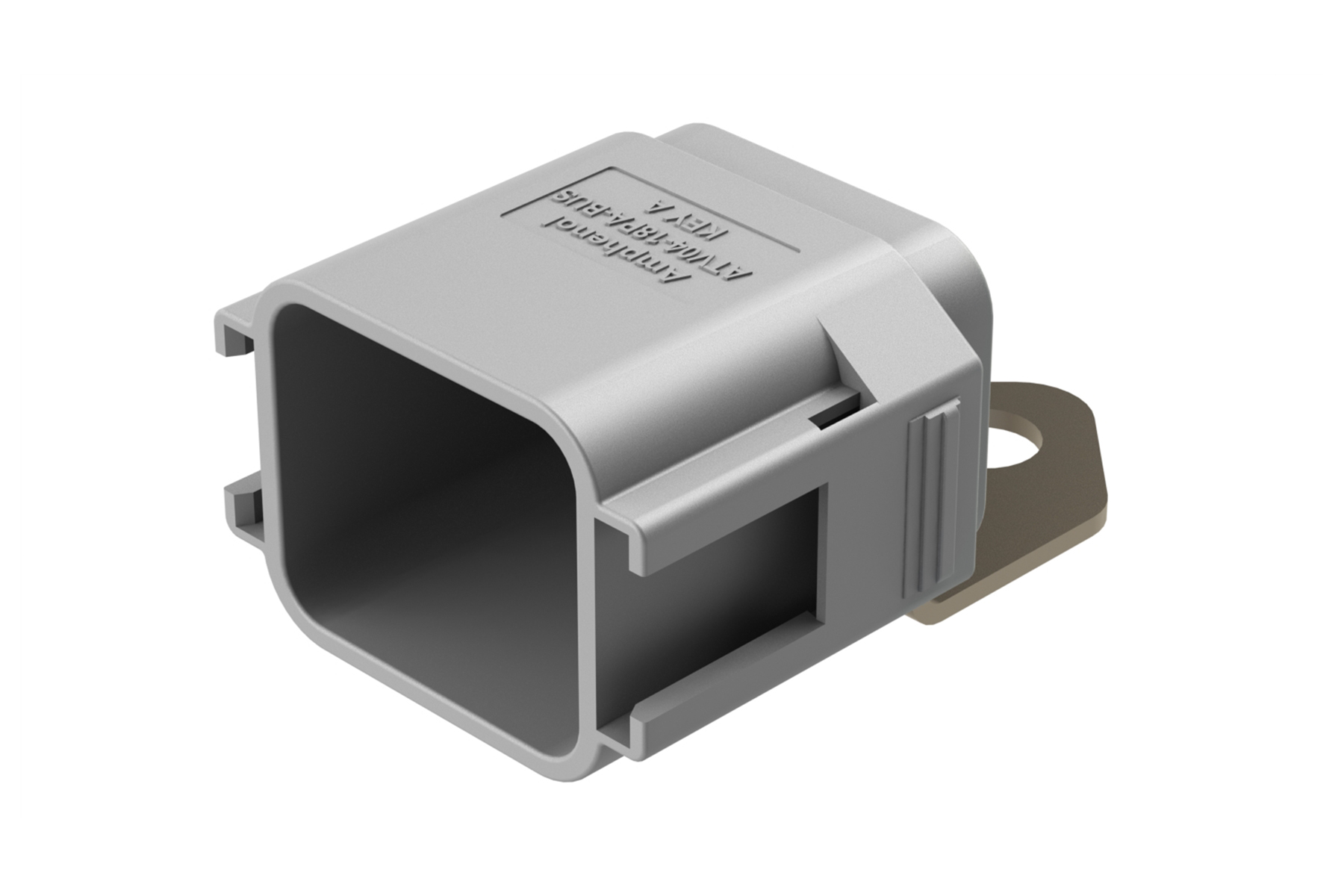

Amphenol Sine Systems ATV0418PABUS 18 Position Power Connector
The Amphenol Sine Systems ATV04-18PA-BUS connector is a heavy-duty circular connector designed for power transmission in various industrial and automotive applications. Its robust construction, featuring a thermoplastic housing, copper alloy contacts, and stainless steel spike washers, provides excellent mechanical strength and corrosion resistance. The connector is rated for a high current of 230 amps and operates reliably within a temperature range of -55°C to +125°C. It meets IP67 moisture resistance standards when mated, ensuring protection in harsh environments. This connector is compatible with mating parts of the ATV06-18SX series and is designed for applications requiring a secure and reliable power connection.
Amphenol Sine Systems ATV0418PABUS 18 Position Power Connector Specifications:
- Material_Housing: Thermoplastic
- Material_Contact: Copper Alloy
- Material_Metal_Insert: Copper Alloy
- Material_Spike_Washers: Stainless Steel
- Current_Rating: 230 AMPS
- Operating_Temperature: -55°C TO +125°C
- Insulation_Resistance: 1000 MEGOHMS MIN @ 25°C
- Moisture_Resistance: IP67 (Mated Condition)
- Mating_Cycle_Durability: 100 CYCLES
- Mating_Part: ATV06-18SX*
- Keyway_A: 1.8
- Keyway_B: 42.3±0.5
- Keyway_4: 47.8±0.5
- Dimension_31_4: 31.4±0.4
- Dimension_35_0: 35.0±0.8
- Dimension_35_3: 35.3
- Dimension_62_1: 62.1±0.8
- Dimension_73_1: 73.1±1.0
