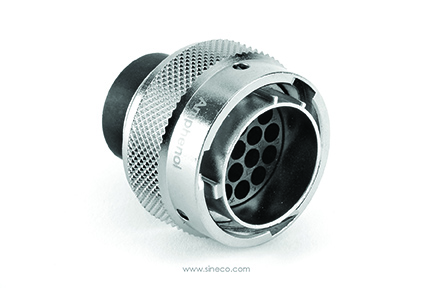

Amphenol Sine Systems RT061619PNH03 Circular Connector Pin
The Amphenol Sine Systems RT061619PNH03 is a robust circular connector designed for demanding industrial applications. Its construction includes a zinc alloy shell with nickel plating for corrosion resistance, a thermoplastic insert (UL94 V-0), and stainless steel wave washers and an NBR/silicone rubber O-ring for sealing. The connector is rated for 13A at 300V AC/DC, operates within a temperature range of -40°C to 125°C, and boasts a dielectric withstand voltage of less than 2 milliamps at 2000 volts AC. It also offers 500 cycles of mating durability and is IP67 rated, ensuring protection against dust and water ingress. Suitable for 16# contacts, this connector is a reliable choice for various industrial and automotive applications.
Amphenol Sine Systems RT061619PNH03 Circular Connector Pin Specifications:
- Rated Current: 13A (MAX)
- Rated Voltage: 300V (AC/DC)
- Operating Temperature: -40°C ~ 125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps Current Leakage @ 2000 Volts AC
- Insulation Resistance: 5000 Megohms Min.
- IP--Class: IP67
- Mating Cycles Durability: 500 Cycles Min.
- Material Shell: Zinc Alloy, Nickel Plated
- Material Insert: Thermoplastic, UL94 V-0
- Material Coupling Nut: AL Alloy, Nickel Plated
- Material Wave Washer: Stainless Steel
- Material O-Ring: NBR/Silicone Rubber
- Suitable Contacts: 16# Contacts
- Thread: 15/16-20 UNEF
