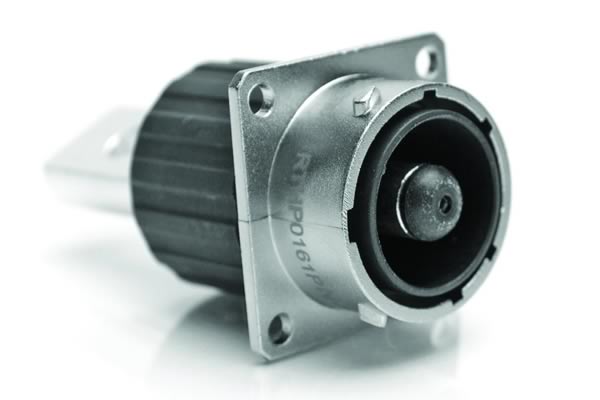

Amphenol Sine Systems RTHP0161PNH1 Receptacle, 8mm, Single Pin
The Amphenol Sine Systems RTHP0161PN-H1 is a heavy-duty circular connector specifically engineered for flange wall mounting applications. Its robust construction, featuring a zinc die-cast housing with nickel plating, ensures durability and corrosion resistance. The PA66 insulation insert and silicone rubber seal provide excellent insulation and environmental protection, making it suitable for harsh environments. With a current rating of 180 amps and a voltage rating of 630 V AC/DC, this connector is designed for demanding power transmission needs. It is commonly used in industrial equipment, automotive systems, and other applications requiring a reliable and secure connection.
Amphenol Sine Systems RTHP0161PNH1 Receptacle, 8mm, Single Pin Specifications:
- Current Rating: 180 Amps Max
- Voltage Rating: 630 V AC/DC
- Operating Temperature: -40°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps Current Leakage @ 5000 Volts AC
- Degree of Protection: IP67 (Mated Condition)
- Degree of Pollution: 3 Per UL840
- Overvoltage Category: III Per UL840
- Mating Cycle Durability: >100 Cycles
- Housing Body Material: Zinc Die-Cast, Nickel Plated
- Insulation Insert Material: PA66, UL94 V0
- Contact Material: Copper Alloy, Silver Plated
- Seal Material: Silicone Rubber
Buy the RTHP0161PN-H1 Amphenol Sine Systems Receptacle, 8mm, Single Pin | myMectronic
Purchase the Amphenol Sine Systems RTHP0161PN-H1 connector securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems RTHP0161PNH1?
You can click on the BUY or RFQ button to purchase RTHP0161PNH1 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part RTHP0161PNH1?
You can download the RTHP0161PNH1 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of RTHP0161PNH1?
Amphenol Sine Systems
