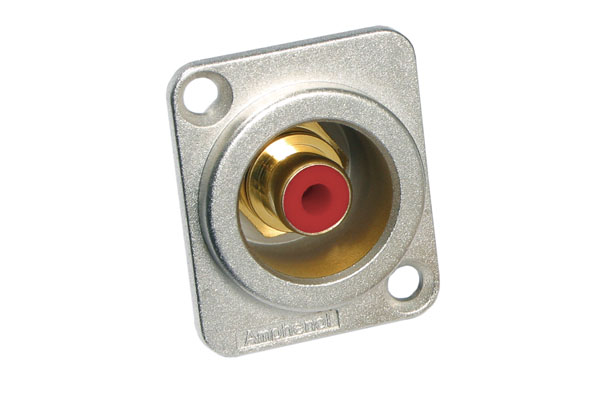

Amphenol ACJDRED RCA Connector
The Amphenol ACJD-RED is a connector specifically engineered for RCA (Radio Corporation of America) applications. It is designed to provide a secure and reliable connection for audio and video signals. This connector is commonly used in consumer electronics, audio equipment, and industrial applications where a robust and dependable RCA connection is required. The ACJD-RED offers excellent signal integrity and durability, ensuring optimal performance in demanding environments. Its robust design and reliable performance make it a preferred choice for professionals and hobbyists alike.
Amphenol ACJDRED RCA Connector Specifications:
- drawing_no: 55010329-000-2
- scale: 1:1 UOS
- size: A4
- rev: 0
- height: .0
- width: 6.0
- depth: 3.0
- length: 5.5
- overall_length: 26.3
- a_dimension: 23.4
- b_dimension: 20.6
- c_dimension: 24.0 [0.945]
- d_dimension: 3.50 [0.138]
- e_dimension: 9.50 [0.374]
- f_dimension: 24.0 [0.945]
- g_dimension: 12.00 [0.472]
- h_dimension: 19.0 [0.748]
Buy the ACJD-RED Amphenol RCA Connector | myMectronic
Purchase the Amphenol ACJD-RED connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol ACJDRED?
You can click on the BUY or RFQ button to purchase ACJDRED from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part ACJDRED?
You can download the ACJDRED datasheet or visit the Amphenol website for support.
Who is the manufacturer of ACJDRED?
Amphenol
