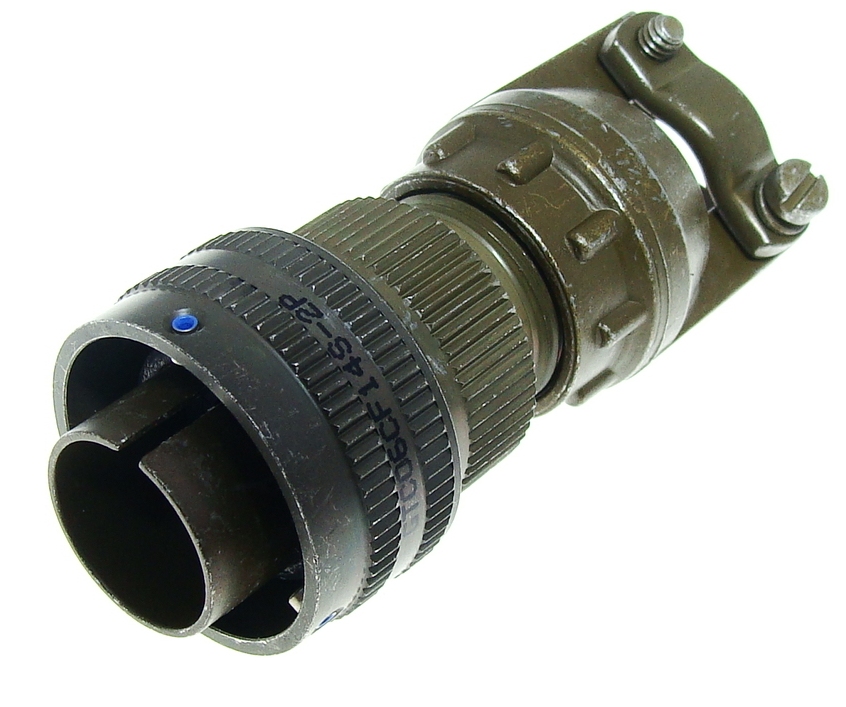

Amphenol AIT62219SS025 Circular Connector
Amphenol AIT / MS connectors are cost-effective, threaded circular connectors designed for harsh environments, compliant with SAE-AS50151 (MIL-DTL-5015) standards. They are sealed to resist moisture, condensation, vibration, and flash-over. Available in over 286 contact layouts, these connectors support power, signal, or mixed connections. They come in five mounting styles, nineteen shell sizes, and offer solder or crimp termination options.
Amphenol AIT62219SS025 Circular Connector Specifications:
- Shell Material: Aluminum alloy
- Plating: Olive drab chromate coating over cadmium, electroless nickel, anodized, zinc nickel, or green zinc
- Contacts: Brass or copper alloy, silver or gold plated
- Temperature Range: -67°F to +257°F (-55°C to +125°C)
- Sealing: Liquid-tight neoprene insulator and rear-seal grommet
- Voltage Rating: Up to 1,400 V (based on contact size)
- Current Rating: Up to 150 amps for standard contacts, 255 amps with Radsok® contacts
- Wire Range: 24 AWG to 0 AWG
- Dimensions vary by size and style
- Insertion Life: Minimum 100 cycles
- Durability: Salt spray resistance for 500 hours, MIL-STD-1344 compliant
- Vibration: 10 to 2,000Hz at 10g’s
- Shock Resistance: 50g for 11 ms
- Mating Cycles: Minimum 100 cycles
- Certification: MIL-DTL-5015, UL-listed
Buy the Buy Amphenol AIT/MS Series MIL-DTL-5015 Part Number AIT62219SS025 Online
Discover the high-performance Amphenol circular connectors designed for demanding environments. Sealed against moisture, vibration, and extreme temperatures, these connectors support a wide range of power and signal needs with multiple mounting styles and contact configurations. Easy to assemble with solder or crimp termination options, they ensure long-term durability and safety. Whether for industrial machinery, aerospace, or military use, buy this reliable connector online today and enjoy fast delivery and expert support.
Buy Amphenol AIT/MS Series MIL-DTL-5015 connector AIT62219SS025 now and experience unmatched reliability and performance in extreme environments.
Frequently Asked Questions
Where can I buy Amphenol AIT62219SS025?
You can click on the BUY or RFQ button to purchase AIT62219SS025 from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part AIT62219SS025?
You can download the AIT62219SS025 datasheet or visit the Amphenol website for support.
Who is the manufacturer of AIT62219SS025?
Amphenol
