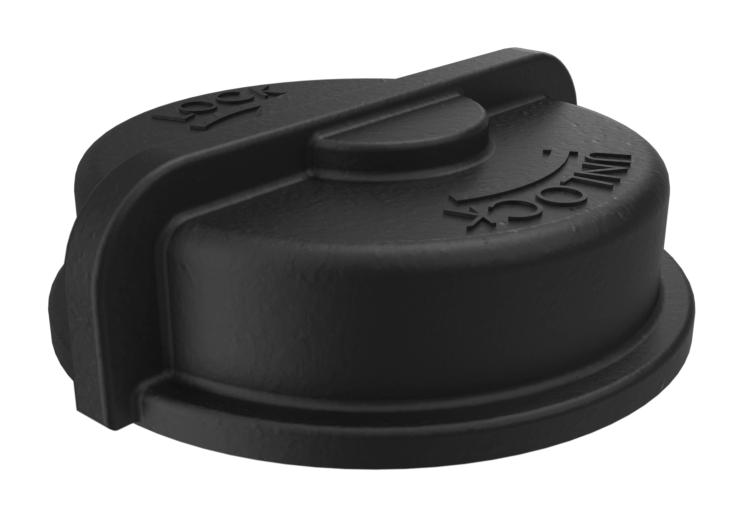

Amphenol FLS2SC4001BP Outdoor Lighting Receptacle
The FLS Series outdoor lighting components are Zhaga Book 18 compliant, designed with 4 contacts for power, DALI, and digital I/O, and mount on luminaires. They feature tool-less wire termination, IP65/IP66 sealing when mated with photocells, and are made from high-quality materials including polycarbonate domes and PBT bases. Suitable for roadway and smart city lighting, the series supports smart controls, sensor modules, and wireless connectivity, operating reliably in harsh environments from -40°C to +105°C with certifications pending UL.
Amphenol FLS2SC4001BP Outdoor Lighting Receptacle Specifications:
- Material: PBT, UL94V-0, black; Dome: Polycarbonate; Contacts: Phosphor bronze, tin over nickel; Mounting Nut: High-temperature thermoplastic; Gasket & O-Ring: Silicone rubber
- Electrical Rating: 1.5A at 250V; Voltage Max: 250VAC/VDC; Contact Resistance: 30mΩ; Insulation Resistance: 500MΩ min. @ 500V; Dielectric Withstanding Voltage: 10kVDC
- Operating Temperature: -40°C to +105°C; Mechanical Shock: 30G’s; Vibration: EIA-364-28; Durability: 25 cycles; Humidity & Salt Spray testing completed
- Dimensions: Varied; Dome Heights: 25mm, 35mm, 40mm, 50mm, 60mm; Diameter options: 40mm, 80mm; Certifications: Pending UL, RoHS compliant.
- Mounting: Single-hole with gasket and nut; Wire Range: 16-20AWG strip length 10mm; Sealed to IP65/IP66; Supports smart lighting controls, sensors, wireless comms.
Buy the Buy Amphenol Zhaga Book 18 Compliant FLS Series Part Number FLS2SC4001 Online
Purchase the Amphenol outdoor lighting receptacle FLS2SC4001 online today to ensure your smart city, roadway, or municipal lighting projects benefit from top-quality, sealed, and easy-to-install components. Designed with durability and environmental resilience in mind, this Zhaga Book 18 compatible receptacle supports sensor modules and smart control integration, providing reliable operation from -40°C to +105°C. Enjoy fast delivery, competitive pricing, and trusted support when you buy now for seamless outdoor lighting solutions.
Buy Amphenol FLS2SC4001 now and experience unmatched reliability and performance in outdoor smart lighting applications.
Frequently Asked Questions
Where can I buy Amphenol FLS2SC4001BP?
You can click on the BUY or RFQ button to purchase FLS2SC4001BP from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part FLS2SC4001BP?
You can download the FLS2SC4001BP datasheet or visit the Amphenol website for support.
Who is the manufacturer of FLS2SC4001BP?
Amphenol
