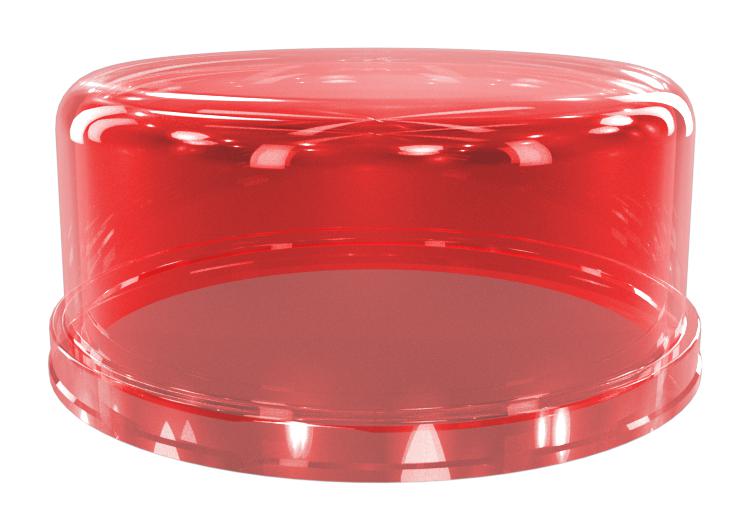

Amphenol FLSC80353000 Outdoor Lighting Sensor Module Housing
The FLS Series is a Zhaga Book 18 compliant outdoor lighting receptacle and sensor module housing system, featuring tool-less wire termination, IP65/IP66 sealing, and rugged polycarbonate domes. Designed for street, municipal, and smart city lighting, it supports DALI, power, and digital I/O, with modules available in 40mm or 80mm diameters. The system ensures reliable operation in harsh environments, with high-temperature resistance and weatherproofing, making it ideal for smart lighting controls, sensors, and wireless communication applications in outdoor infrastructure projects.
Amphenol FLSC80353000 Outdoor Lighting Sensor Module Housing Specifications:
- Material: PBT, UL94V-0, black
- Dome Material: Polycarbonate
- Contacts: Phosphor bronze, Tin over nickel
- Contact Rating: 1.5A at 250V
- Voltage Rating: 250VAC/VDC max.
- Operational Temperature: -40°C to +105°C
- Sealing: IP65/IP66 rated with gasket and sealing O-ring
- Wire Range: 16-20AWG, strip length 10mm
- Mechanical Shock Resistance: 30G’s, 11ms
- Durability: 25 mating cycles
- Insulation Resistance: 500MQ min. @ 500V DC
- Dielectric Withstanding Voltage: 10kVDC
- Environmental Resistance: Salt spray 250 hours, humidity EIA standards
- Vibration and shock endurance per IEC standards
Buy the Buy Amphenol Zhaga Book 18 Compliant FLS Series Part Number FLSC80353000 Online
Purchase the Amphenol FLS Series outdoor lighting receptacle and sensor housing online today. Designed for weatherproof, high-temperature environments, it supports smart lighting controls, DALI, and wireless sensor modules. Easy to install with tool-less wire termination, sealing ensures IP65/IP66 protection, perfect for street lighting, municipal projects, and smart city infrastructure. Durable and reliable, this system helps you achieve efficient, high-performance outdoor lighting solutions tailored for harsh conditions and modern connectivity requirements.
Buy Amphenol FLS Series part FLSC80353000 now and experience reliable outdoor lighting module housing for smart city and street lighting projects.
Frequently Asked Questions
Where can I buy Amphenol FLSC80353000?
You can click on the BUY or RFQ button to purchase FLSC80353000 from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part FLSC80353000?
You can download the FLSC80353000 datasheet or visit the Amphenol website for support.
Who is the manufacturer of FLSC80353000?
Amphenol
