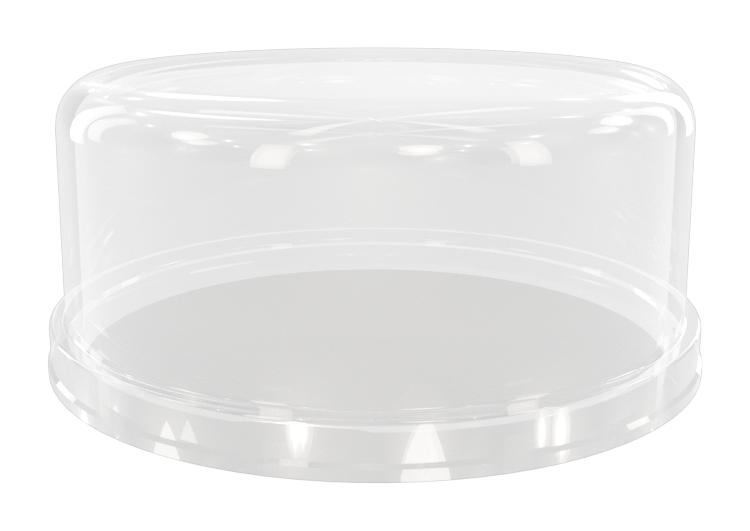

Amphenol FLSC80355000 Outdoor Lighting Receptacle
The FLS Series is a Zhaga Book 18 compliant outdoor lighting component designed for smart city and roadway applications. It features a robust receptacle with tool-less wire termination and a sealed polycarbonate dome for durability in harsh environments. Suitable for luminaires, it supports digital and power connections, with strong environmental ratings up to IP66, temperature tolerance from -40°C to +105°C, and certified UL and RoHS standards. Its modular design includes various sizes of bases and domes, enabling installation flexibility and reliable sensor integration for intelligent lighting systems.
Amphenol FLSC80355000 Outdoor Lighting Receptacle Specifications:
- Material: PBT receptacle/base, polycarbonate dome, silicone rubber gasket, thermoplastic mounting nut, copper contacts with tin over nickel finish
- Contacts: Phosphor bronze, 2.5441m (100pin) min. Tin, 1.271m (50pin) min. nickel
- Wire Range: 16-20AWG, strip length 10mm, solid or tinned stranded wire
- Mechanical Shock: 30G's, 11ms
- Vibration: Per EIA364-28, Condition 5A
- Durability: 25 mating cycles
- Contact Rating: 1.5A at 250V, Max voltage: 250VAC/VDC
- Contact Resistance: 30mΩ max
- Insulation Resistance: 500MΩ min. at 500V DC
- Dielectric Withstanding Voltage: 10kVDC
- Operating Temperature: -40°C to +105°C
- Environmental Resistance: Humidity, salt spray for 250 hours, thermal shock from -40°C to +65°C
- Sealing: Gasket and sealing O-ring ensure IP65/IP66 protection
- Compliance: Zhaga Book 18, UL pending, RoHS compliant
Buy the Amphenol FLS– Reliable Lighting Receptacle for Industrial Applications
Purchase the Amphenol outdoor lighting receptacle online to ensure a robust, high-quality component for smart city and roadway lighting projects. Featuring tool-less wire termination, IP65/IP66 sealing, and wide temperature tolerance, it provides excellent environmental protection and easy installation. Ideal for sensor modules, wireless connectivity, and digital control in outdoor environments, it supports various base sizes and offers durable construction with polycarbonate domes and compliant contacts. Order now for a reliable, weather-resistant solution for your outdoor luminaires.
Get Amphenol FLS receptacle today—designed for reliable outdoor lighting control and sensor integration in harsh environments.
Frequently Asked Questions
Where can I buy Amphenol FLSC80355000?
You can click on the BUY or RFQ button to purchase FLSC80355000 from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part FLSC80355000?
You can download the FLSC80355000 datasheet or visit the Amphenol website for support.
Who is the manufacturer of FLSC80355000?
Amphenol
